7
English
H110M-GL/D3

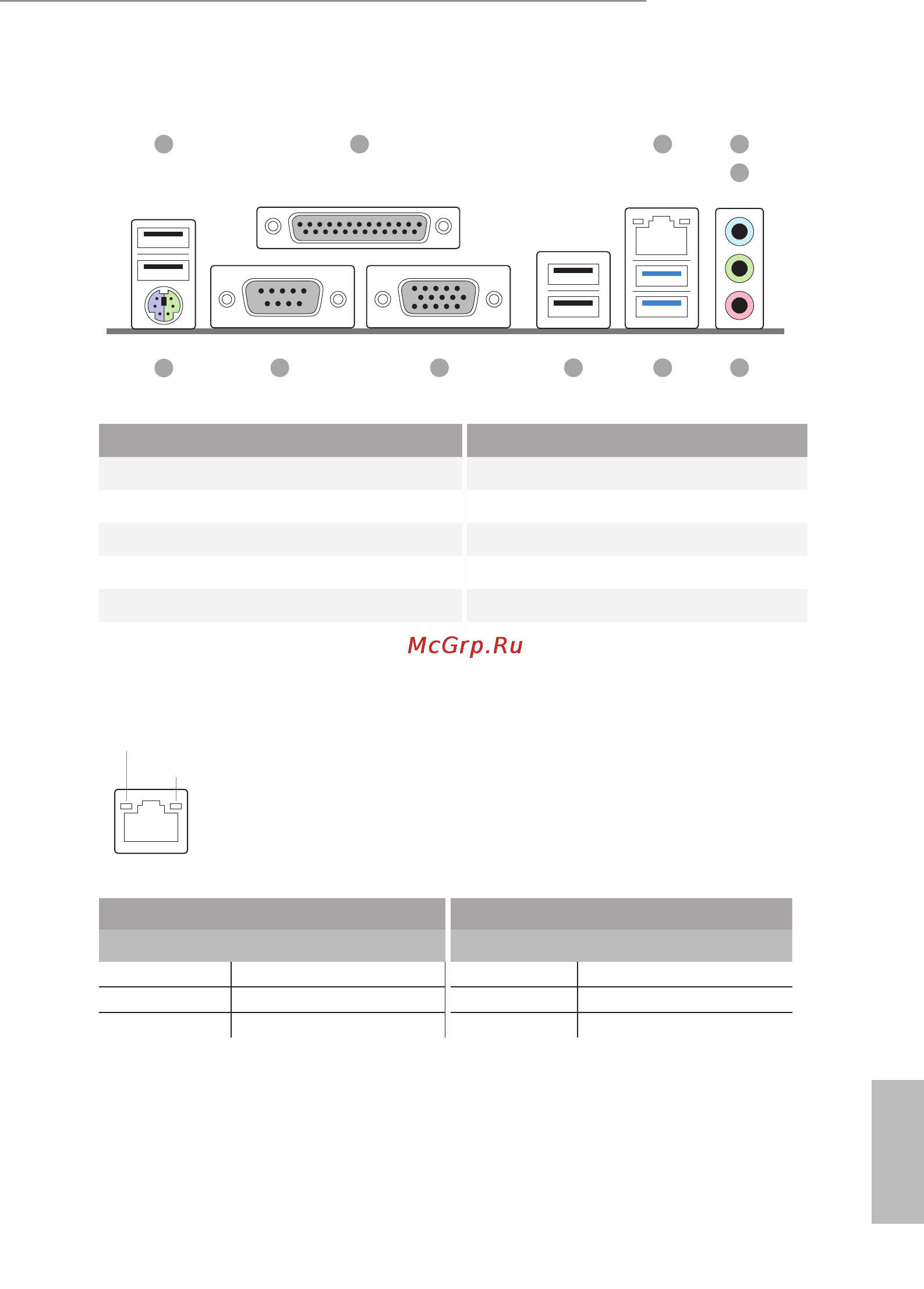

1.4 I/O Panel
No. Description No. Description
1 USB 2.0 Ports (USB01) 7 USB 3.0 Ports (USB3_01)
2 Parallel Port 8 USB 2.0 Ports (USB23)
3 LAN RJ-45 Port* 9 D-Sub Port
4 Line In (Light Blue)** 10 COM Port
5 Front Speaker (Lime)** 11 PS/2 Mouse/Keyboard Port
6 Microphone (Pink)**
6
7
8
9
3
5
4
10
11
1
2
* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
Of No Link Of 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK LED
SPEED LED
LAN Port
