25
English
H110M-GL/D3
Step 3

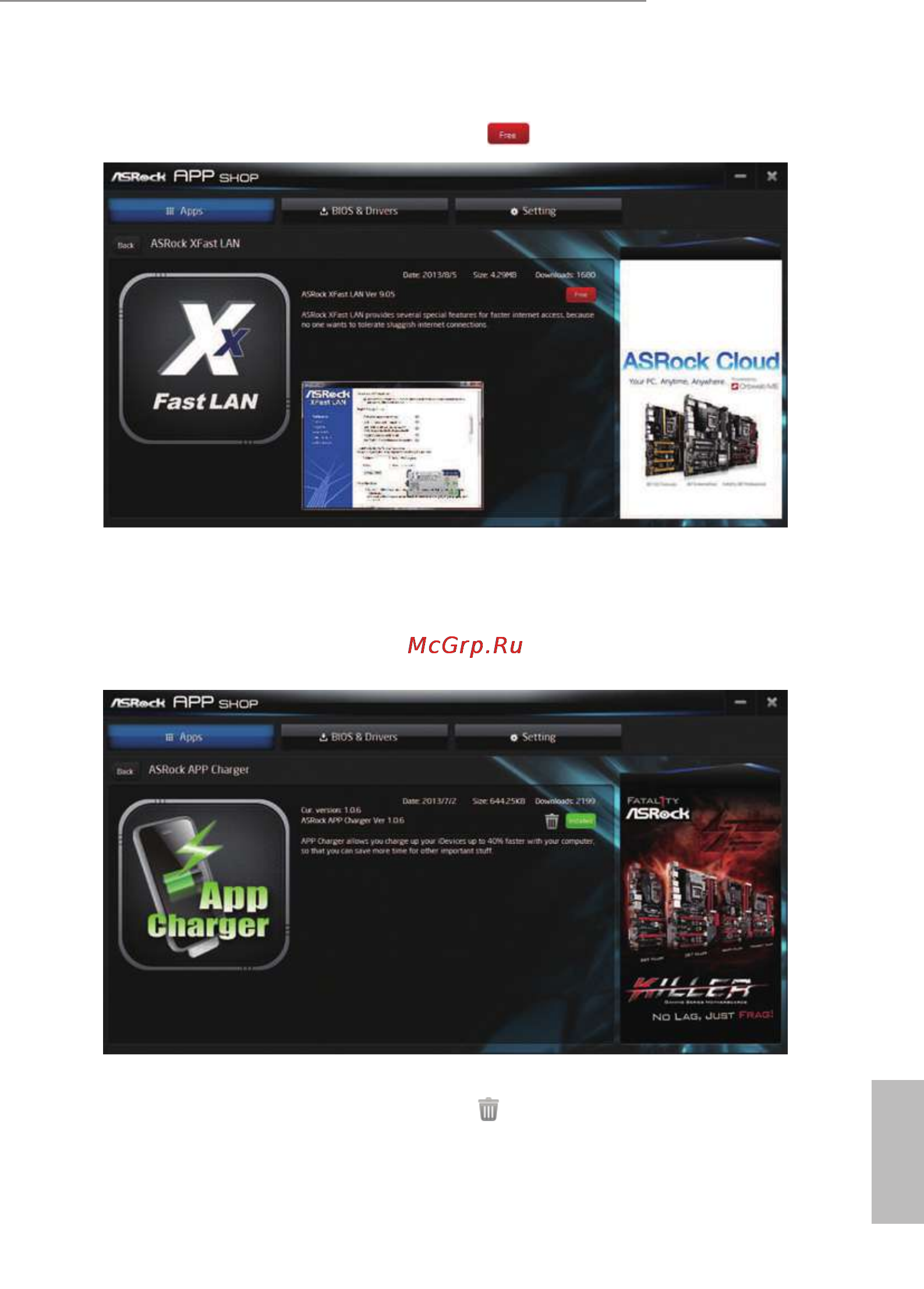

If you want to install the app, click on the red icon
to start downloading.
Step 4
When installation completes, you can nd the green "Installed" icon appears on the
upper right corner.
To uninstall it, simply click on the trash can icon .
* e trash icon may not appear for certain apps.
