21
English
H110M-GL/D3

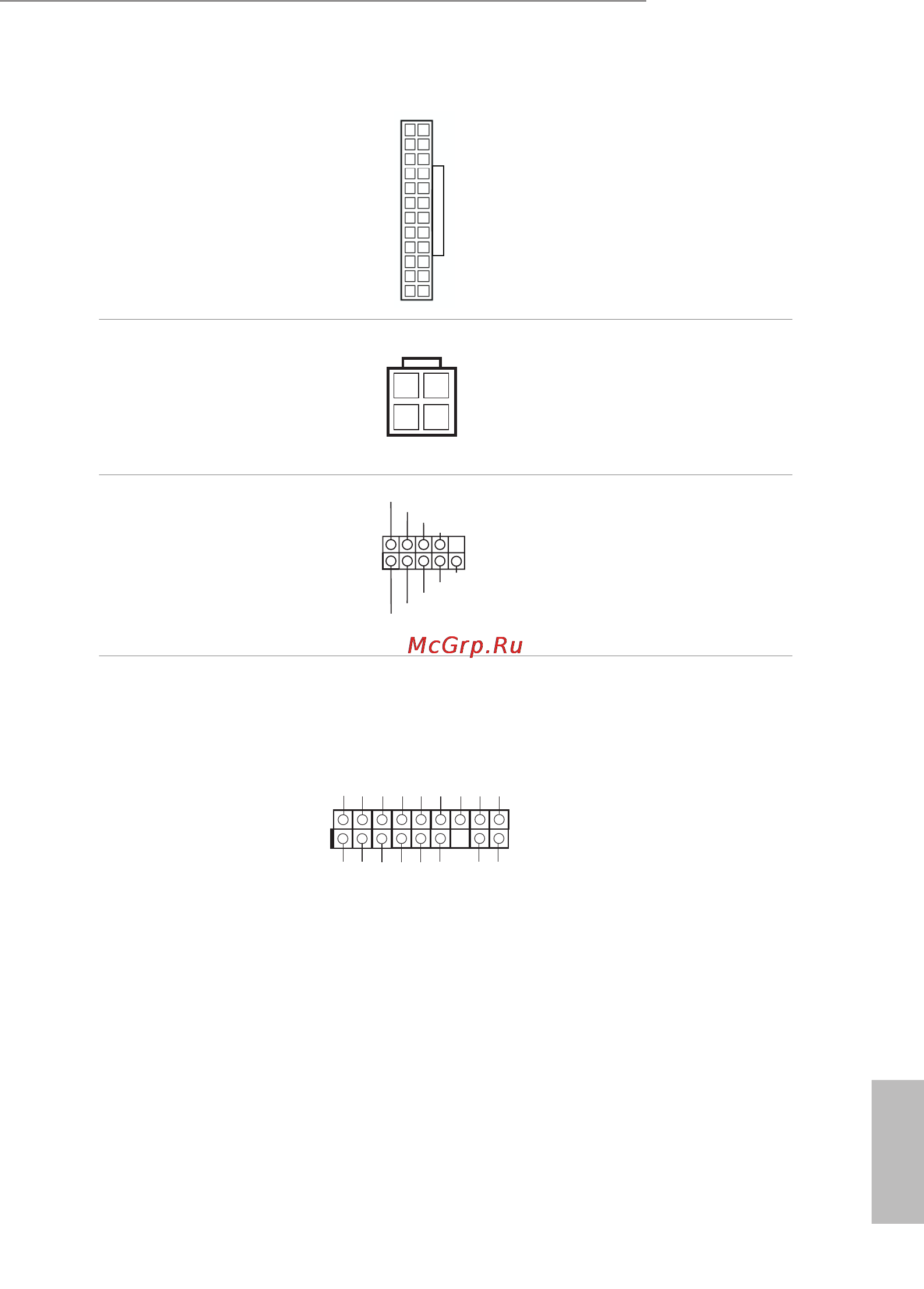

ATX Power Connector
(24-pin ATXPWR1)
(see p.5, No. 4)
is motherboard pro-
vides a 24-pin ATX power
connector. To use a 20-pin
ATX power supply, please
plug it along Pin 1 and Pin
13.
ATX 12V Power
Connector
(4-pin ATX12V1)
(see p.5, No. 1)
is motherboard pro-
vides a 4-pin ATX 12V
power connector.
Serial Port Header
(9-pin COM2)
(see p.5, No. 16)
is COM2 header
supports a serial port
module.
TPM Header
(17-pin TPMS1)
(see p.5, No. 15)
is connector supports Trusted
Platform Module (TPM) system,
which can securely store keys,
digital certicates, passwords,
and data. A TPM system also
helps enhance network security,
protects digital identities, and
ensures platform integrity.
1
12
13
24
1
GND
SMB_DATA_MAIN
LAD2
LAD1
GND
S_PWRDWN#
SERIRQ#
GND
PCICLK
PCIRST#
LAD3
+3V
LAD0
+3VSB
GND
FRAME
SMB_CLK_MAIN
CCTS#1
RRTS#1
DDSR#1
DDTR#1
RRXD1
GND
TTXD1
DDCD#1
1
RRI#1
