ASRock E35LM1 [15/47] Installation of memory modules dimm

notch

break

notch

break

2.3 Installation of Memory Modules (DIMM)

E35LM1 motherboard provides two 240-pin DDR3 (Double Data Rate 3) DIMM

slots.

It is not allowed to install a DDR or DDR2 memory module into DDR3

slot; otherwise, this motherboard and DIMM may be damaged.

Installing a DIMM

Please make sure to disconnect power supply before adding or

removing DIMMs or the system components.

Step 1. Unlock a DIMM slot by pressing the retaining clips outward.

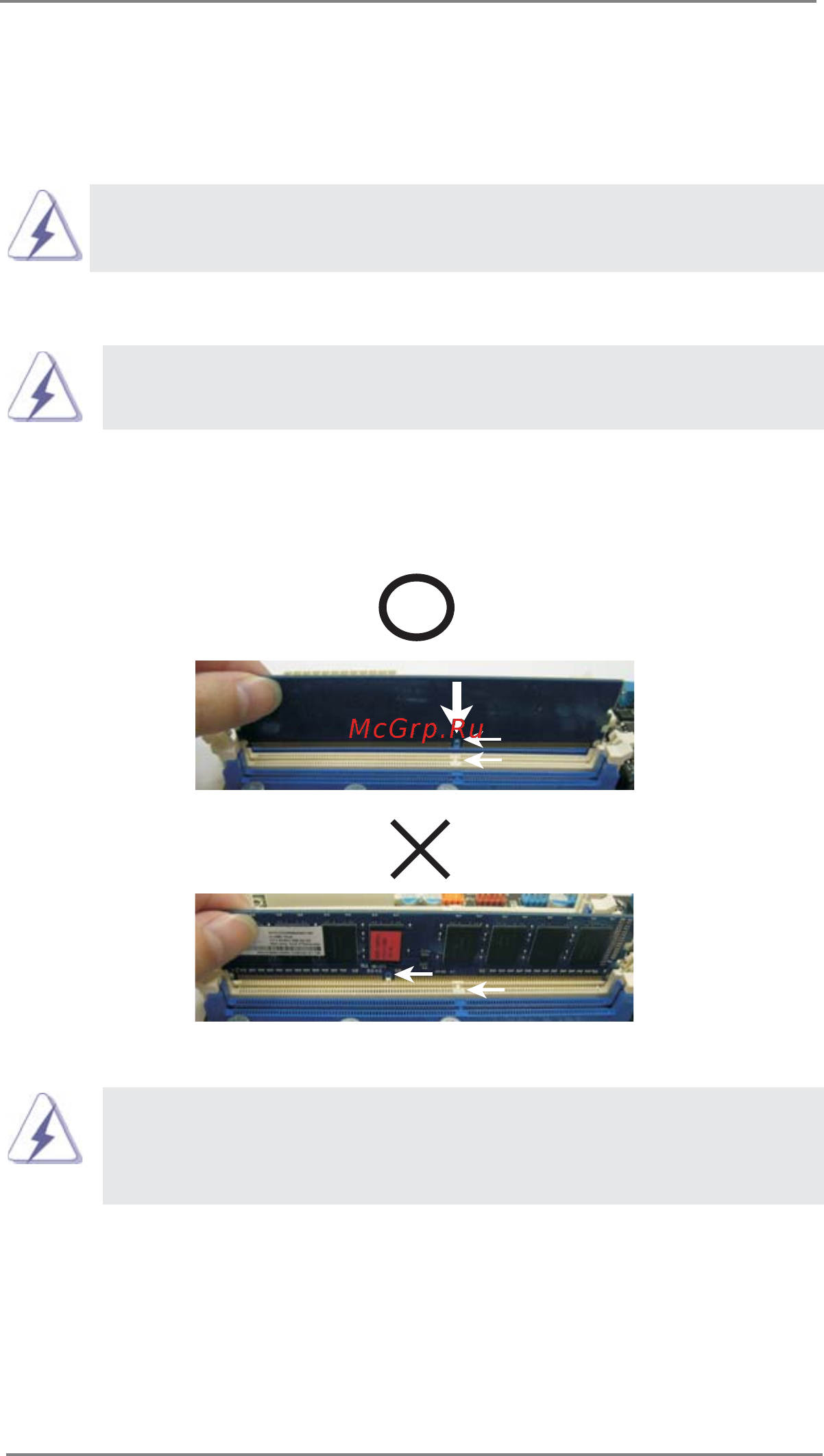

Step 2. Align a DIMM on the slot such that the notch on the DIMM matches the

break on the slot.

The DIMM only ﬁ ts in one correct orientation. It will cause permanent

damage to the motherboard and the DIMM if you force the DIMM into

the slot at incorrect orientation.

Step 3. Firmly insert the DIMM into the slot until the retaining clips at both ends

fully snap back in place and the DIMM is properly seated.
