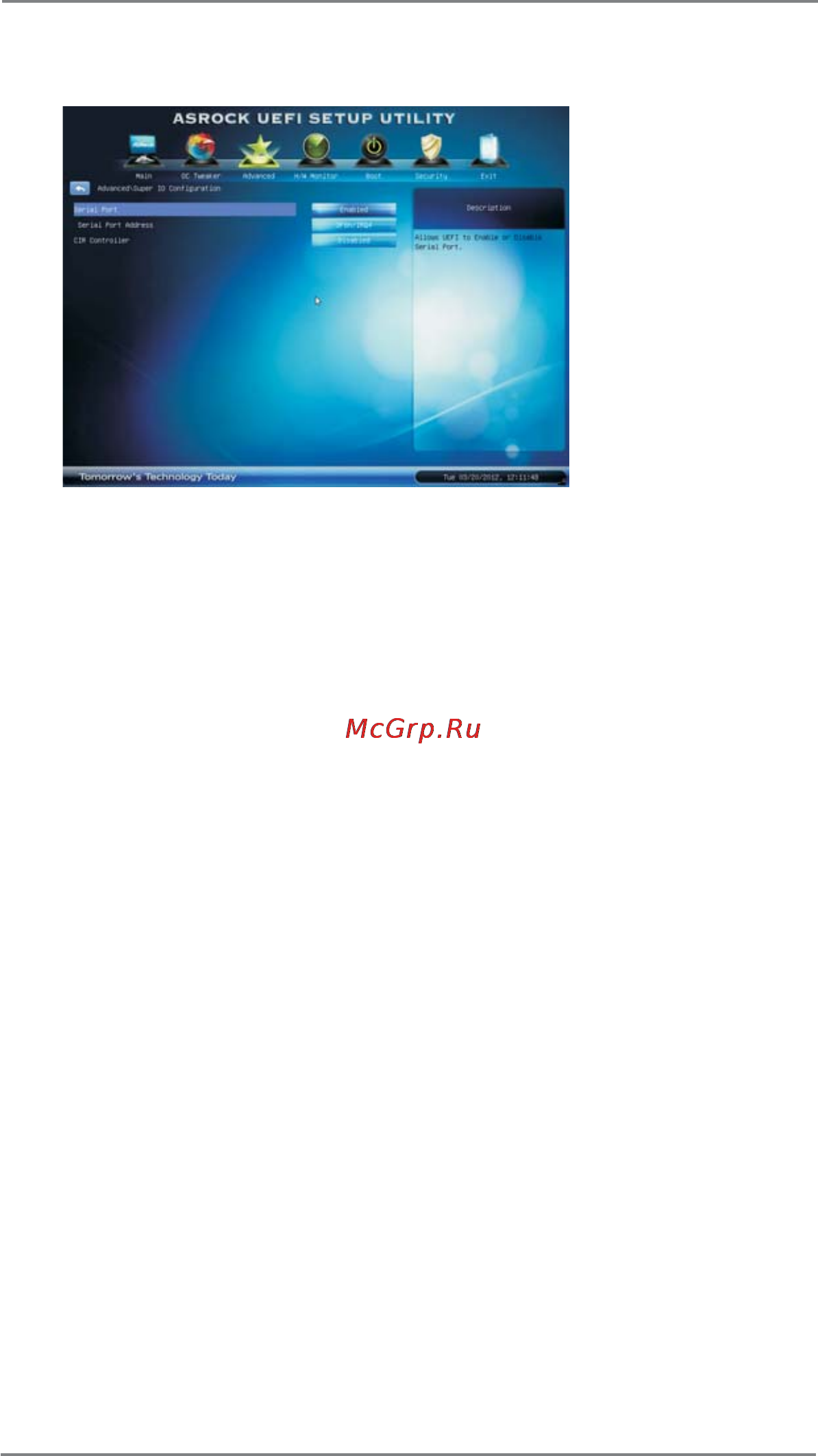

3.4.5 Super IO Configuration
Serial Port
Use this item to enable or disable the onboard serial port.
Serial Port Address
Use this item to set the address for the onboard serial port. Confi guration
options: [3F8h / IRQ4] and [3E8h / IRQ4].
CIR Controller
Use this item to enable or disable CIR controller. The default value is
[Disabled].
