12

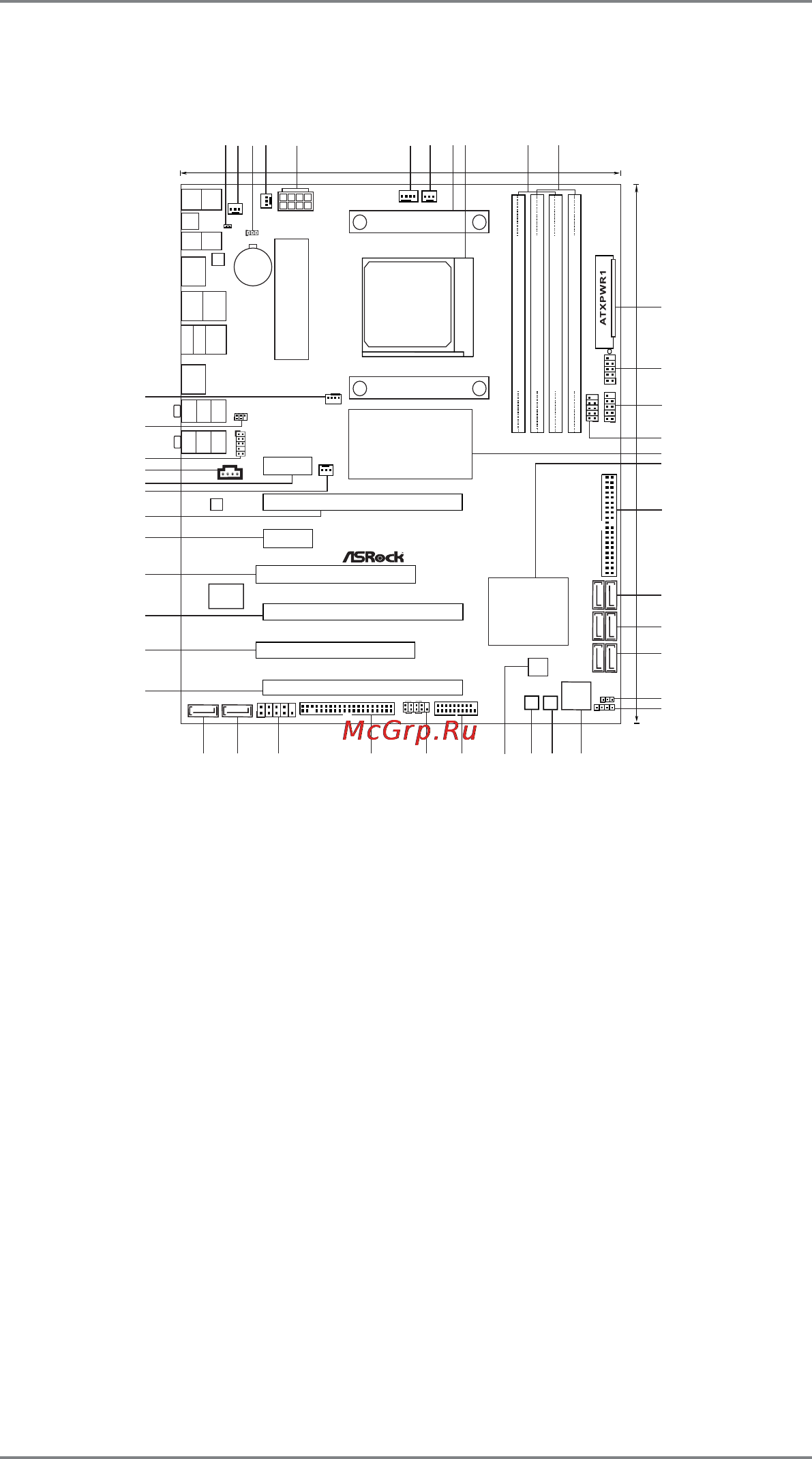

1.3 Motherboard Layout
24.4cm (9.6-in)
SOCKET AM3b
AMD
990FX
Chipset
DDR3_A1 (64 bit, 240-pin module)
DDR3_A2 (64 bit, 240-pin module)
DDR3_B1 (64 bit, 240-pin module)
DDR3_B2 (64 bit, 240-pin module)
ATX12V1
CPU_FAN2
CPU_FAN1
CHA_FAN2
CHA_FAN3
CLRCMOS1
1
1
USB8_9
1
USB2_3
1
FRONT_1394
1
IDE1
SATA3_5_6
SATA3_3_4
SATA3_1_2
1
PLED1
SPEAKER1
1
Dr.
Debug
PWRBTN1
RSTBTN1
USB3_0_1
HDLED RESET
PLED PWRBTN
1
PANEL1
FLOPPY1
COM1
1
SATA3_7
SATA3_8
PCIE5
PCI2
PCIE4
PCIE1
PCIE2
PCIE3
PCI1
PWR_FAN1
CD1
HD_AUDIO1
1
CHA_FAN1
IR1
CMOS
BATTERY
LAN
PHY
PS2
Keyboard
Coaxial
SPDIF
Optical
SPDIF
Clr
CMOS
PS2
Mouse
USB 2.0
T: U SB0
B: USB1
RJ-45 LAN
USB 2.0
T: US B6
B: USB7
USB 2.0
T: US B4
B: USB5
eSATA3
IEEE 1394
USB 3.0
T: U SB2
B: USB3
Top:
SIDE SPK
Center:
REAR SPK
Bottom:
CTR BASS
Top:
LINE IN
Center:
FRONT
Bottom:
MIC IN
AUDIO
CODEC
32Mb
BIOS
Super
I/O
30.5cm (12.0-in)
DDR3 1866
HT3.0
Phenom II
AM3+
FSB2.6GHz
Dual Channel
140W CPU
Designed in Taipei
990FX Extreme4
Support 8-Core CPU
PCI Express 2.0
SATA3 6Gb/s
ErP/EuP Ready
Front USB 3.0
RoHS
1394a
USB 3.0
1
HDMI_SPDIF1
AMD
SB950
Chipset
14
1
2
3
4
5
6
7
8
9
11
12
13
16
15
17
18
19
20
21
22
23
24242525262627282930313233
34
35
36
37
38
39
40
41
42
43
44
10
45
1 HDMI_SPDIF Header (HDMI_SPDIF1, White) 23 Chassis Speaker Header
2 Chassis Fan Connector (CHA_FAN3) (SPEAKER 1, White)
3 Clear CMOS Jumper (CLRCMOS1) 24 Dr. Debug (LED)
4 Chassis Fan Connector (CHA_FAN2) 25 Reset Switch (RSTBTN)
5 ATX 12V Power Connector (ATX12V1) 26 Power Switch (PWRBTN)
6 CPU Fan Connector (CPU_FAN1) 27 SPI Flash Memory (32Mb)
7 CPU Fan Connector (CPU_FAN2) 28 USB 3.0 Header (USB3_0_1, Light Blue)
8 CPU Heatsink Retention Module 29 System Panel Header (PANEL1, White)
9 AM3+ CPU Socket 30 Floppy Connector (FLOPPY1)
10 2 x 240-pin DDR3 DIMM Slots 31 Serial Port Connector (COM1)
(Dual Channel B: DDR3_A1, DDR3_B1; Blue) 32 SATA3 Connector (SATA3_7, White)
11 2 x 240-pin DDR3 DIMM Slots 33 SATA3 Connector (SATA3_8, White)
(Dual Channel B: DDR3_A2, DDR3_B2; White) 34 PCI Express 2.0 x16 Slot (PCIE5; Blue)
12 ATX Power Connector (ATXPWR1) 35 PCI Slot (PCI2)
13 USB 2.0 Header (USB8_9, Blue) 36 PCI Express 2.0 x16 Slot (PCIE4; Blue)
14 USB 2.0 Header (USB2_3, Blue) 37 PCI Slot (PCI1)
15 Front Panel IEEE 1394 Header 38 PCI Express 2.0 x1 Slot (PCIE3; White)
(FRONT_1394, White) 39 PCI Express 2.0 x16 Slot (PCIE2; Blue)
16 Northbridge Controller 40 Power Fan Connector (PWR_FAN1)
17 Southbridge Controller 41 PCI Express 2.0 x1 Slot (PCIE1; White)
18 Primary IDE Connector (IDE1, Blue) 42 Internal Audio Connector: CD1 (White)
19 SATA3 Connector (SATA3_5_6, White) 43 Front Panel Audio Header
20 SATA3 Connector (SATA3_3_4, White) (HD_AUDIO1, White)
21 SATA3 Connector (SATA3_1_2, White) 44 Infrared Module Header (IR1)
22 Power LED Header (PLED1) 45 Chassis Fan Connector (CHA_FAN1)
