61

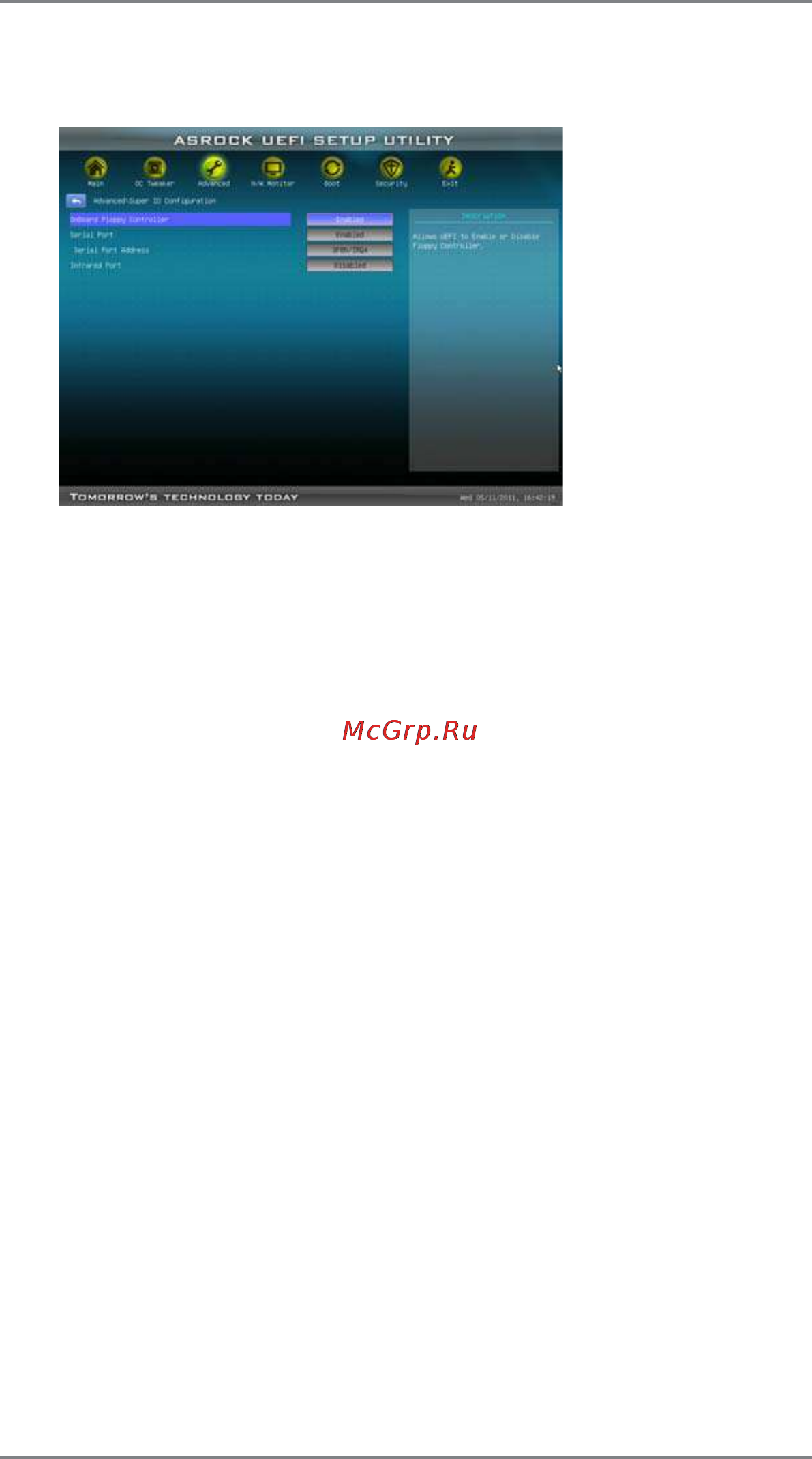

3.4.5 Super IO Configuration
OnBoard Floppy Controller
Use this item to enable or disable oppy drive controller.
Serial Port
Use this item to enable or disable the onboard serial port.
Serial Port Address
Use this item to set the address for the onboard serial port. Con guration
options: [3F8 / IRQ4] and [3E8 / IRQ4].
Infrared Port
Use this item to enable or disable the onboard infrared port.
Infrared Port Address
Use this item to set the address for the onboard infrared port.Con guration
options: [2F8 / IRQ3] and [2E8 / IRQ3].
