1-2
Chapter 1: Product introduction
H81M-R
Place this side towards
the rear of the chassis

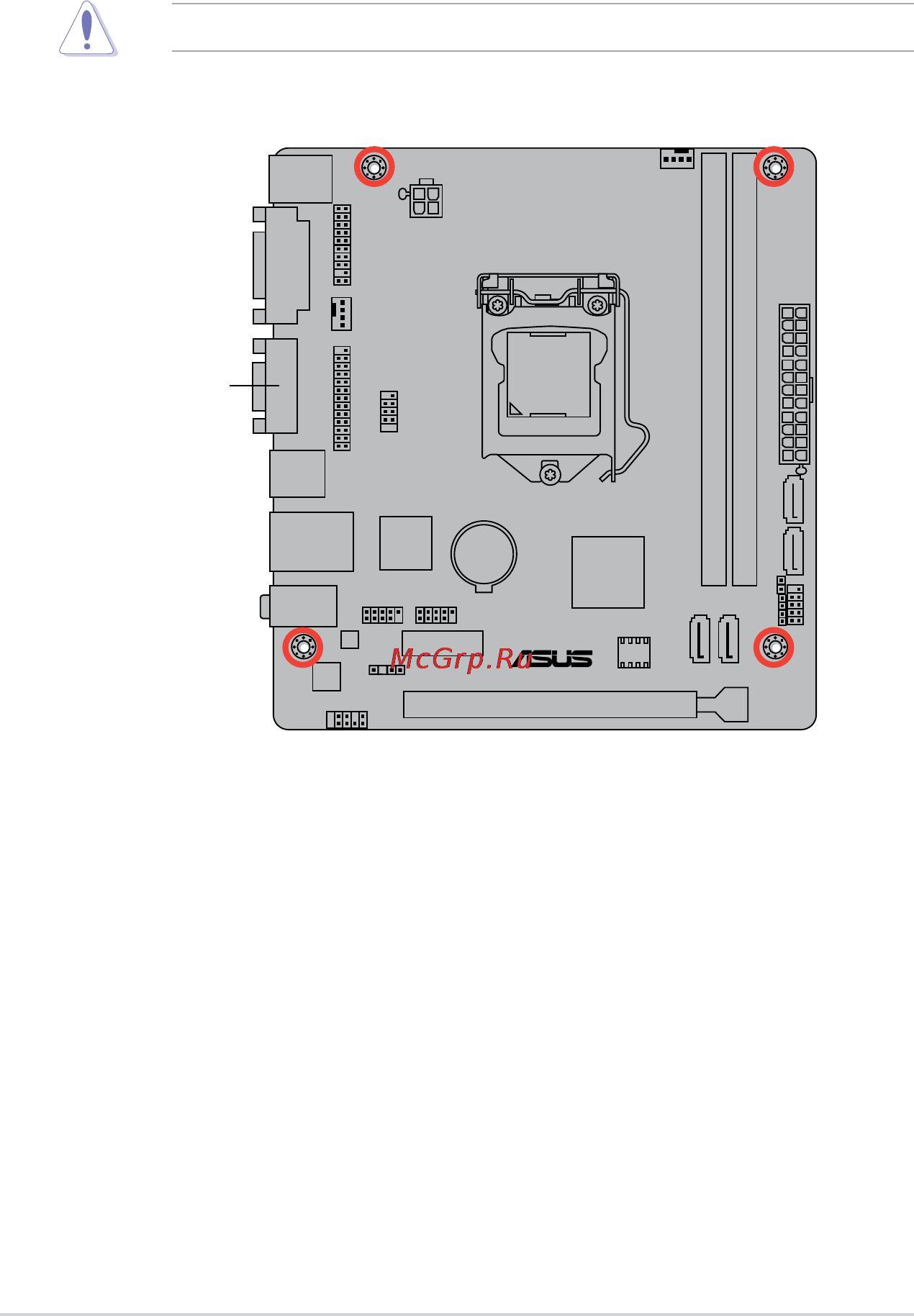

1.2.2 Screw holes
Place four screws into the holes indicated by circles to secure the motherboard to the
chassis.
Do not overtighten the screws! Doing so can damage the motherboard.
