ASUS H81M-R
1-17
GND
RSATA_TXP1
RSATA_TXN1
GND
RSATA_RXN1
RSATA_RXP1
GND
SATA3G_1
GND
RSATA_TXP2
RSATA_TXN2
GND
RSATA_RXN2
RSATA_RXP2
GND
SATA3G_2
H81M-R

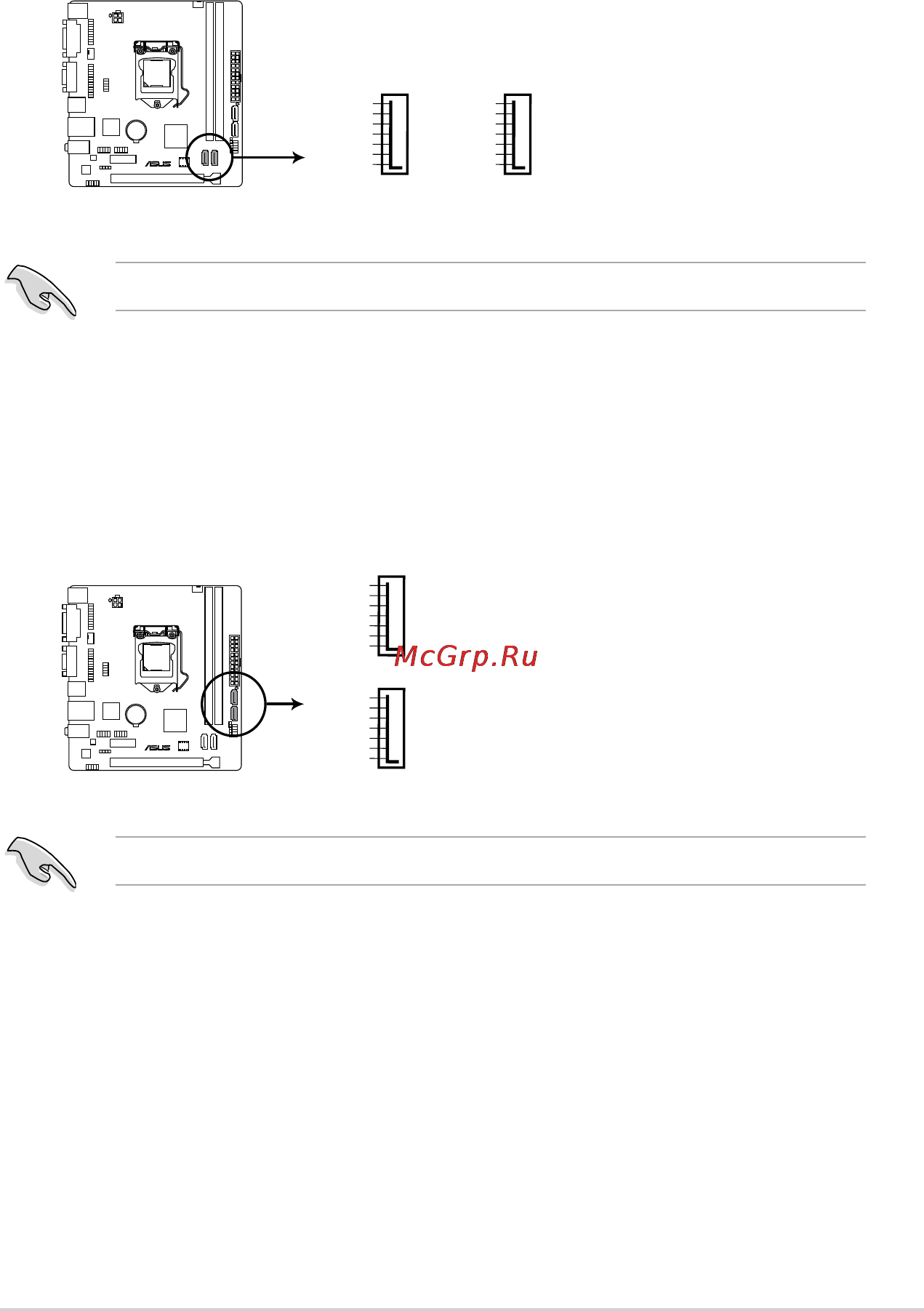

H81M-R SATA 3.0Gb/s connectors
7. Intel
®
H81 Serial ATA 3.0 Gb/s connectors (7-pin SATA3G 1~2 [dark brown])
These connectors connect to Serial ATA 3.0 Gb/s hard disk drives via Serial ATA 3.0
Gb/s signal cables.
8. Intel
®
H81 Serial ATA 6.0Gb/s connectors (7-pin SATA6G_1~2 [yellow])
These connectors connect to Serial ATA 6.0 Gb/s hard disk drives via Serial ATA 6.0
Gb/s signal cables.
When using hot-plug and NCQ, set the SATA Mode Selection item in the BIOS to [AHCI].
GND
RSATA_TXP2
RSATA_TXN2
GND
RSATA_RXN2
RSATA_RXP2
GND
SATA6G_2
GND
RSATA_TXP1
RSATA_TXN1
GND
RSATA_RXN1
RSATA_RXP1
GND
SATA6G_1
H81M-R
H81M-R SATA 6.0Gb/s connectors
When using hot-plug and NCQ, set the SATA Mode Selection item in the BIOS to [AHCI].
