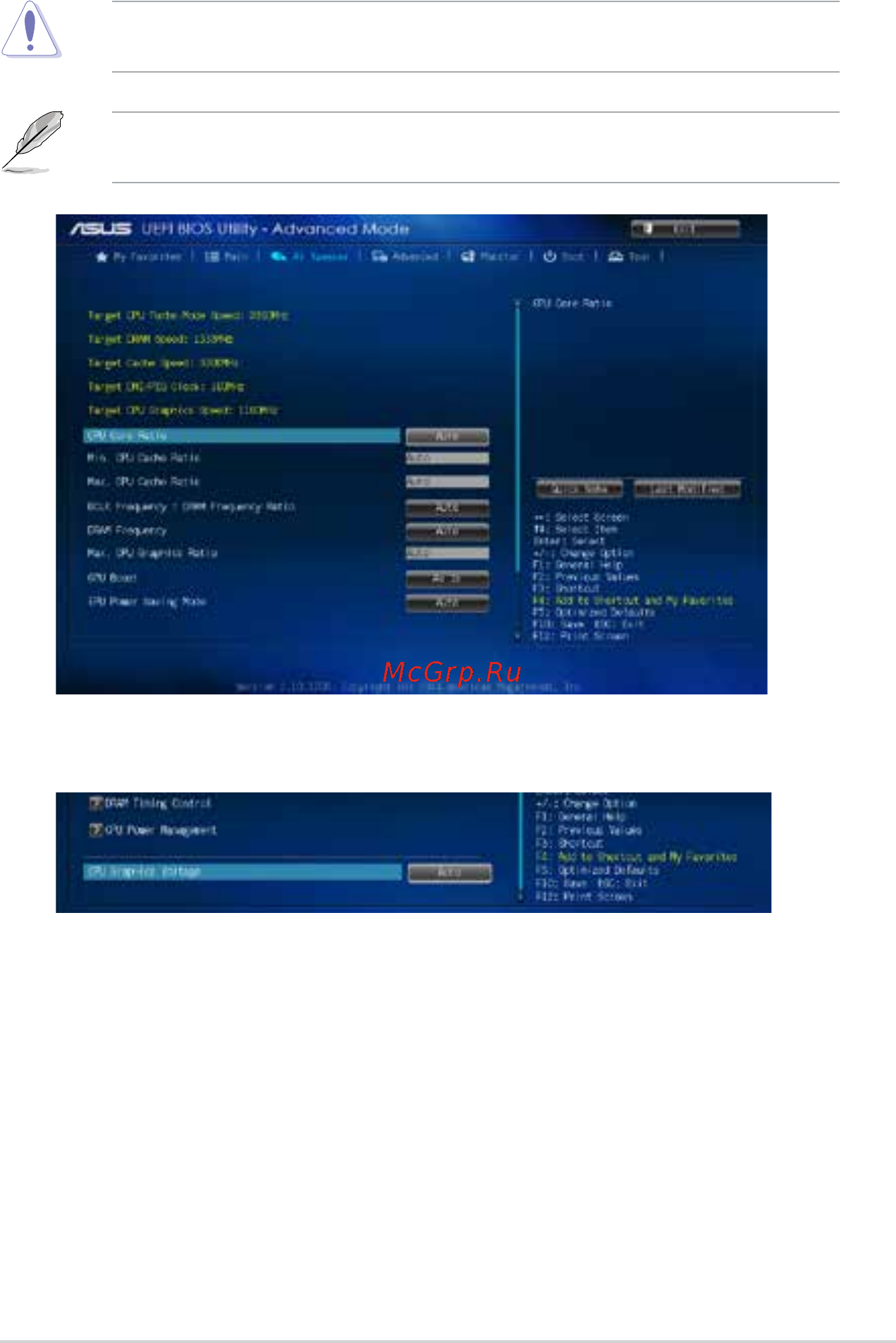

![Asus h81m-r [39/48] Asus h81m r](/views2/1161720/page39/bg27.png)
2-11
ASUS H81M-R
Scroll down to display the following items:
2.5 Ai Tweaker menu
The Ai Tweaker menu items allow you to congure overclocking-related items.
Be cautious when changing the settings of the Ai Tweaker menu items. Incorrect eld
values can cause the system to malfunction.
The conguration options for this section vary depending on the CPU and DIMM model you
installed on the motherboard.
