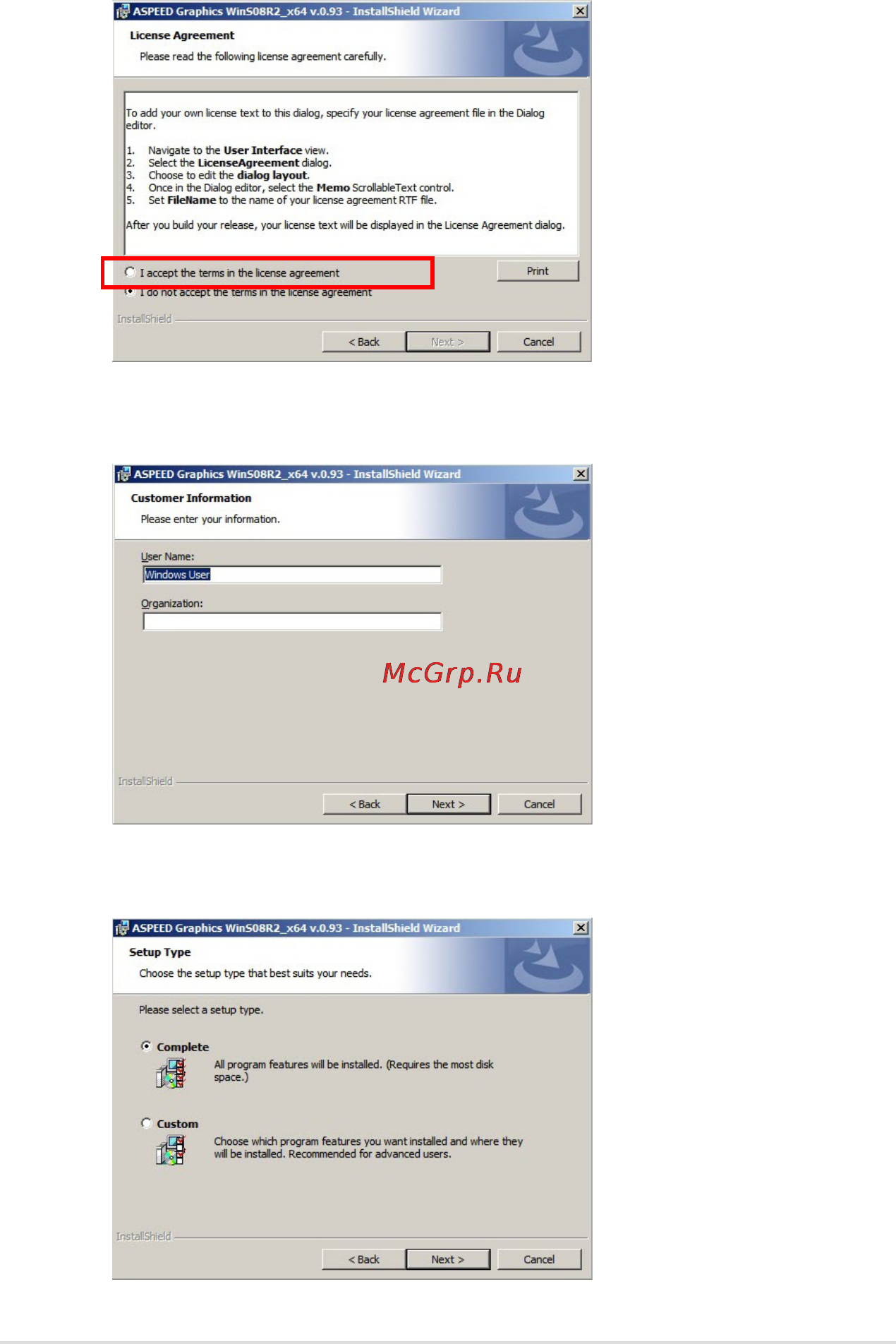

7-20 Chapter 7: Driver installation
6. Enter the user information and click
Next
to continue.
7. Select a setup type and click
Next
to continue.
5. Toggle
I accept the terms in the license agreement
and click
Next
to
continue.
