ASUS RS720-E7/RS12; RS720-E7/RS12-E 7-21

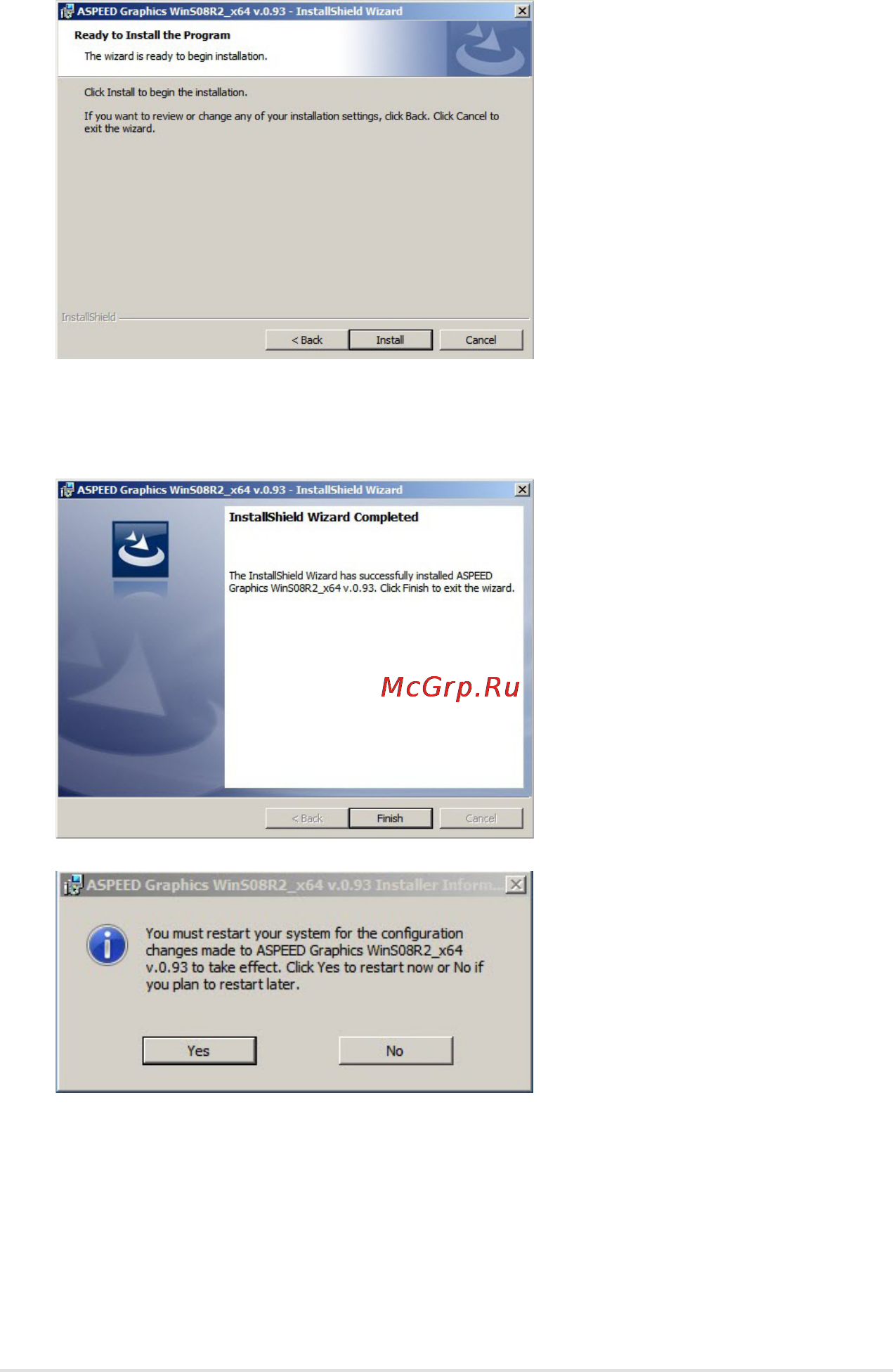

9. When the installation completes, click Finish to restart your computer before
using the program.
8. Click
Install
to start driver installation.
