Asus b85m-gamer [10/80] Motherboard overview
![Asus b85m-gamer [10/80] Motherboard overview](/views2/1161770/page10/bga.png)
1-2
Chapter 1: Product introduction
B85M-GAMER
Place this side
towards the rear
of the chassis
1.2 Motherboard overview
Beforeyouinstallthemotherboard,studythecongurationofyourchassistoensurethatthe
motherboardts.
Unplugthepowercordbeforeinstallingorremovingthemotherboard.Failuretodosocan
cause you physical injury and damage to motherboard components.
1.2.1 Placement direction
Wheninstallingthemotherboard,placeitintothechassisinthecorrectorientation.Theedge
with external ports goes to the rear part of the chassis as indicated in the image.
1.2.2 Screw holes

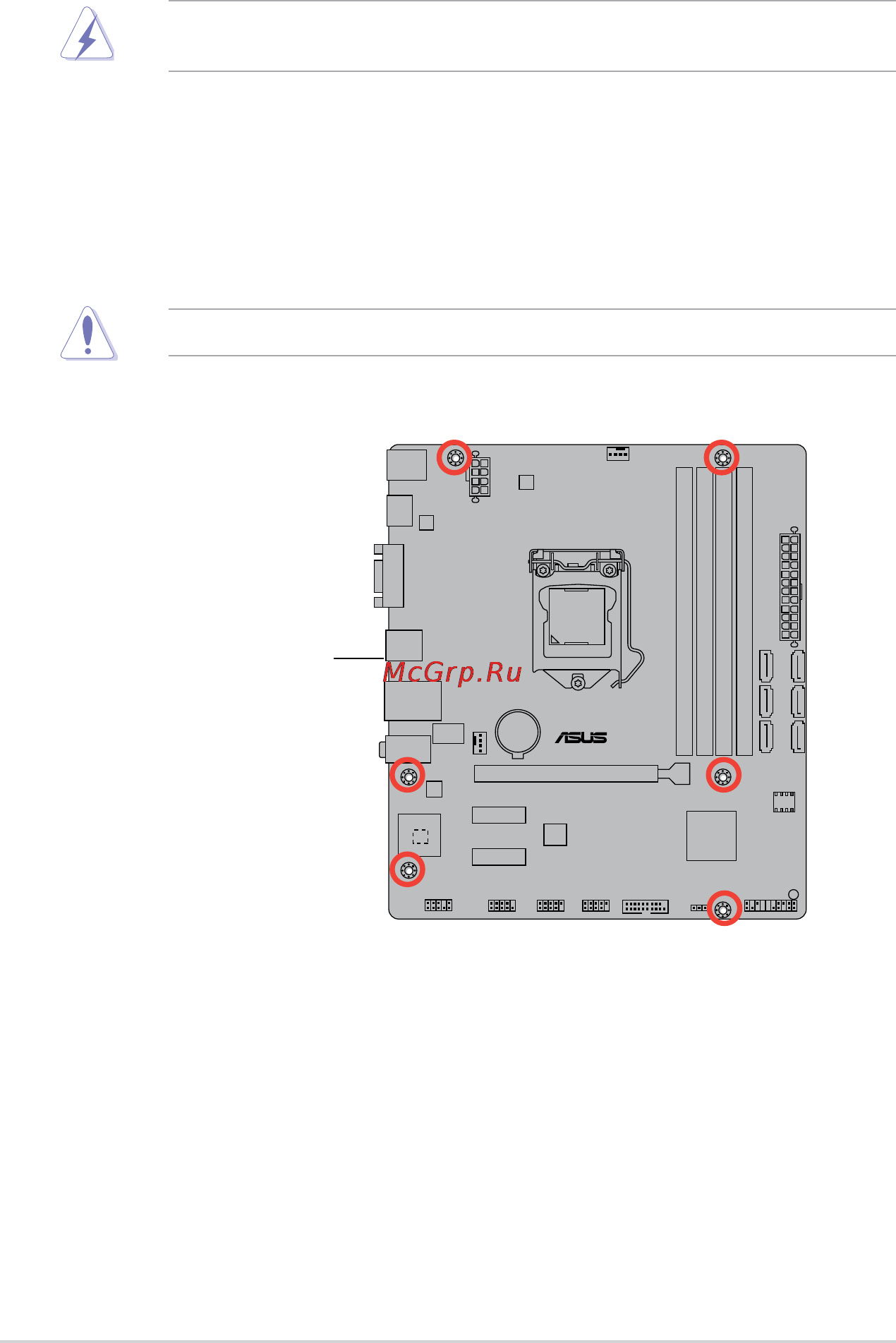

Place six screws into the holes indicated by circles to secure the motherboard to the chassis.
Donotovertightenthescrews!Doingsocandamagethemotherboard.
