Asus rs100-e7-pi2 [127/130] Utilities menu

ASUS RS100-E7/PI2 7-23

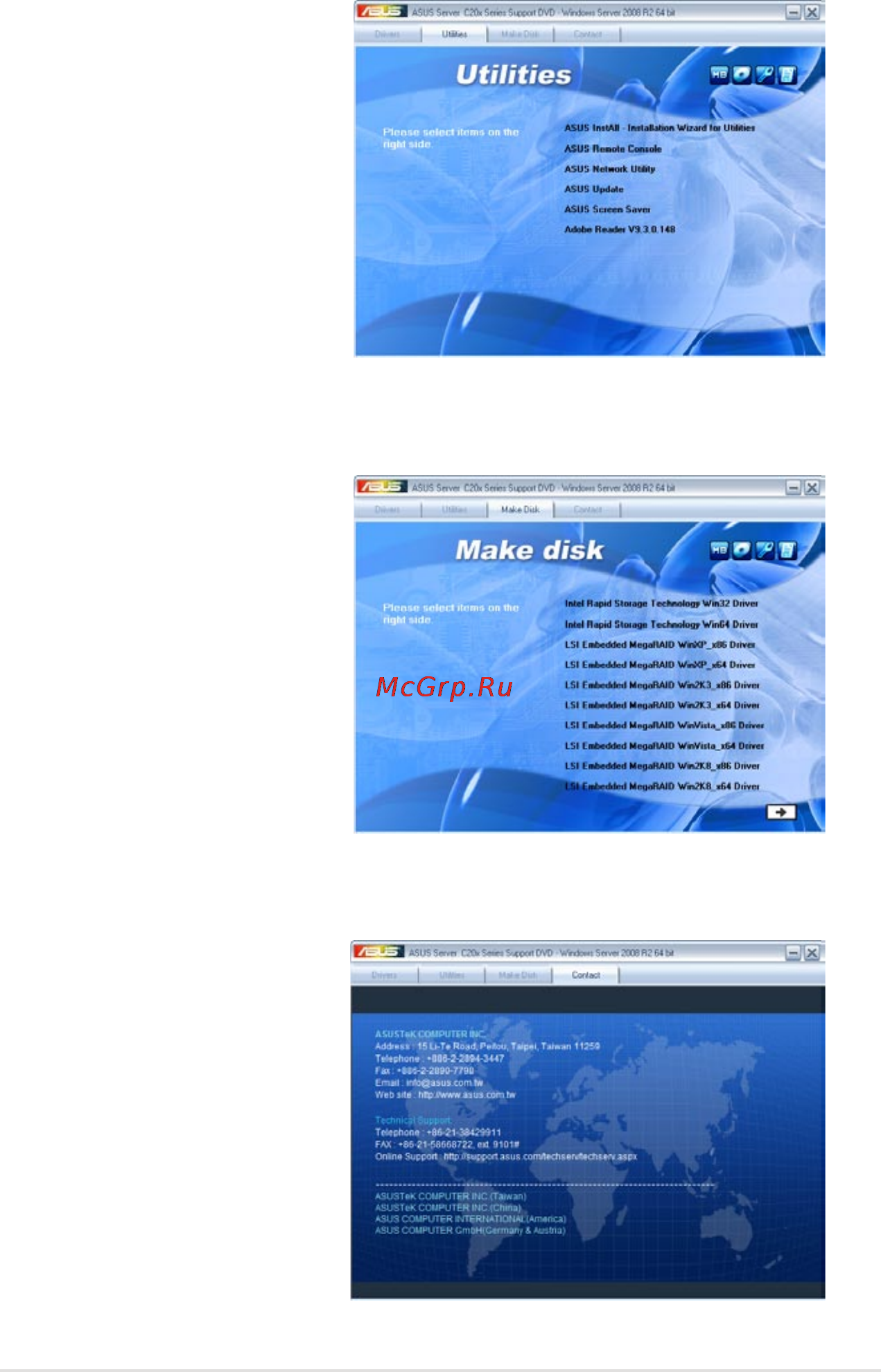

7.5.3 Utilities menu

The Utilities menu displays the

software applications and utilities

that the motherboard supports.

Click an item to install.

7.5.4 Make disk menu

The Make disk menu contains

items to create the Intel RAID and

LSI MegaRAID driver disks.

7.5.5 Contact information

Click the Contact tab to display

the ASUS contact information.

You can also nd this information

on the inside front cover of this

user guide.
