Asus rs100-e7-pi2 [40/130] Installing asmb5 series management board optional

Chapter 2: Hardware setup2-22

2.7.3 Installing ASMB5 series management board (optional)

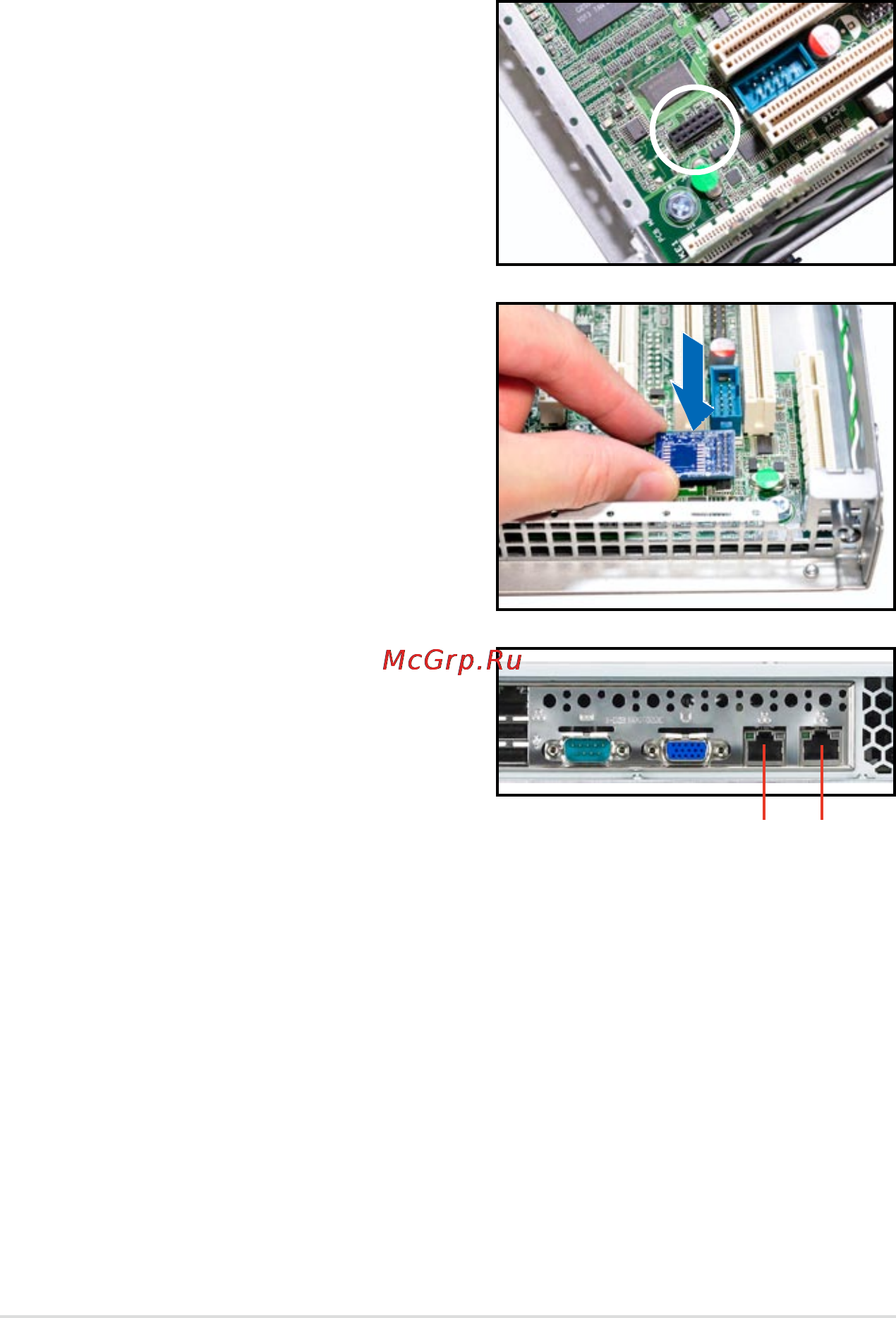

Follow the steps below to install an optional ASMB5 series management board on

your motherboard.

3. Insert the LAN cable plug to the

LAN port 3 (dedicated LAN) or

LAN port 1 (shared LAN) for server

management.

1. Locate the BMC_FW header on the

motherboard.

2. Orient and press the ASMB5

management card in place.

LAN port 1

LAN port 2
