Asus rs100-e7-pi2 [38/130] Optical disk drive odd

Chapter 2: Hardware setup2-20

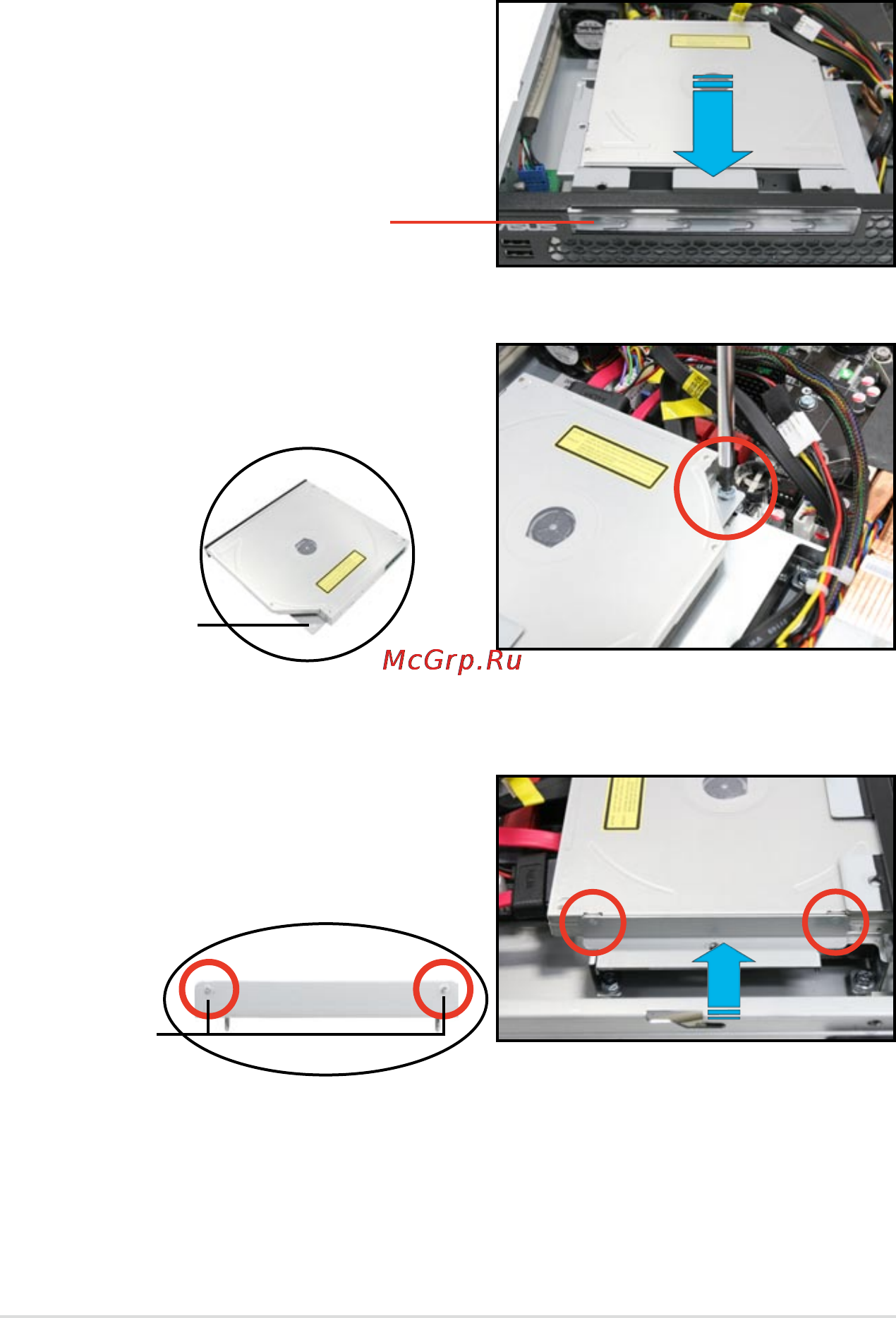

2.7.2 Optical disk drive (ODD)

To install the optical disk drive:

1. Slide in the optical disk drive into the

drive slot as shown.

2. Align the screw hole of the ODD

bracket with the one on the HDD

bracket, and then secure it with a

screw.

ODD bracket

Optical disk drive (optional)

3. Attach the ODD side bracket to the

ODD, matching the two connectors

of the bracket with the holes on the

side of the ODD.

ODD side bracket

Bracket

connectors

Optical disk drive slot
