2-9ASUS RS100-E7/PI2

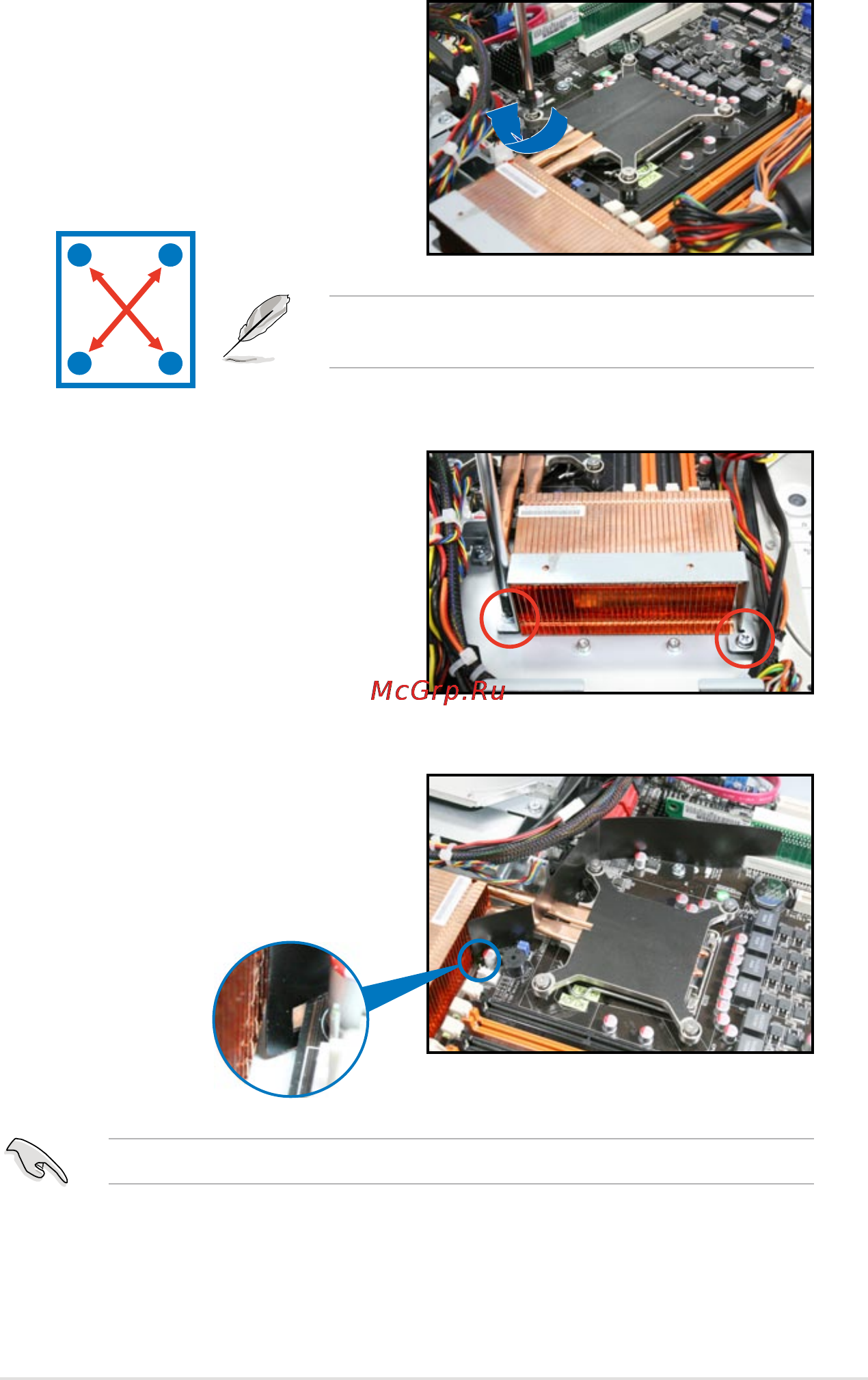

Tighten the four heatsink screws in a diagonal

sequence.

4. Twist each of the four screws with

a Philips (cross) screwdriver just

enough to attach the heatsink to

the motherboard. When the four

screws are attached, tighten them

one by one to completely secure

the heatsink.

5. Secure the heat pipe and air duct

to the server with two screws.

6. Set the mylar back to its original

place. When the mylar is properly

installed, the hook as shown below

should attach the motherboard edge.

Ensure that the mylar does not interfere any motherboard headers or capacitors.
