Chapter 2: Hardware setup2-16

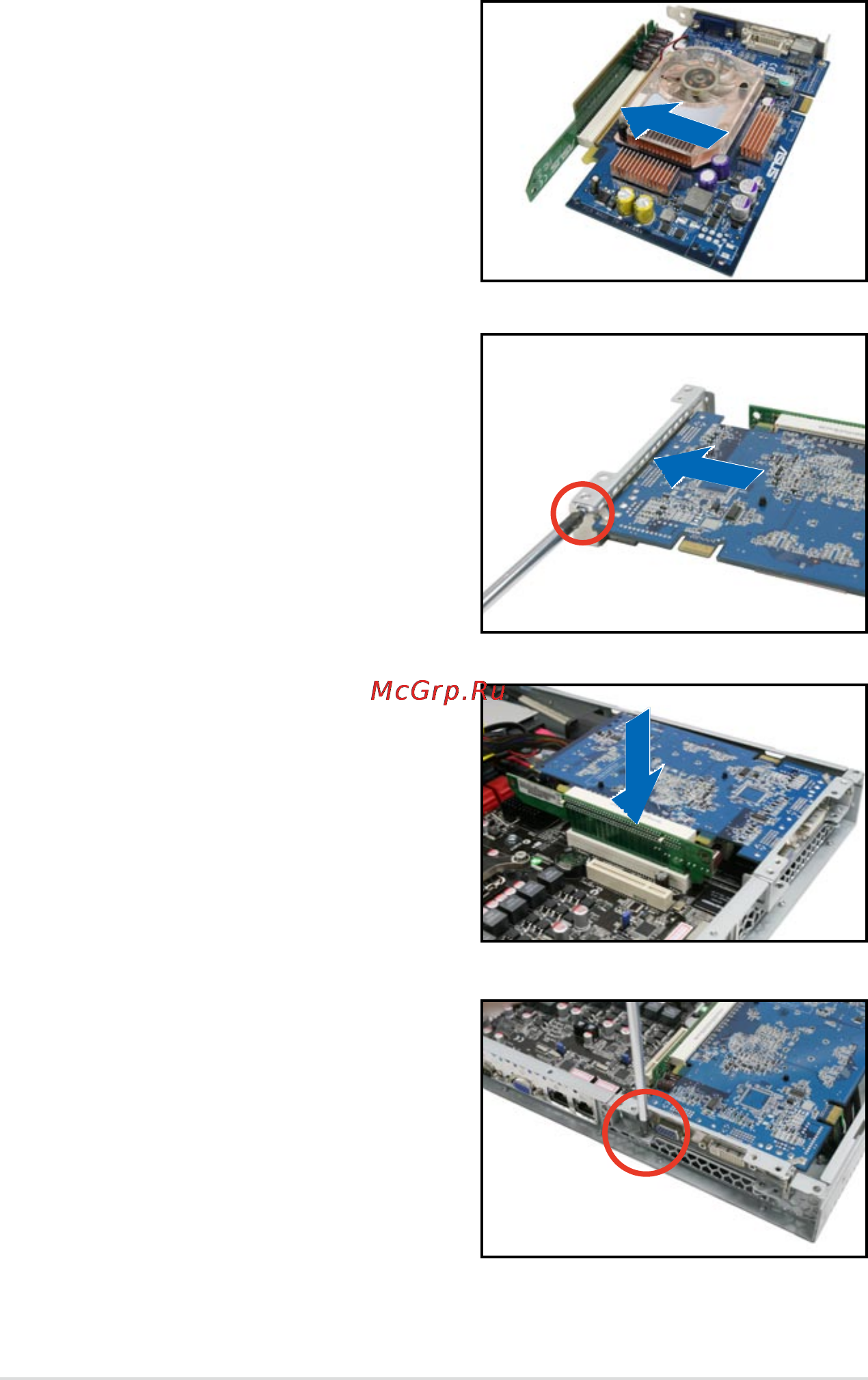

4. Install the expansion card to the

riser card as shown.

5. Attach the expansion card to the

expansion card bracket, and then

secure the card with a screw.

6. Align the riser card with the

expansion card installed to the PCI

Express slot on the motherboard.

7. Press the riser card until the golden

connectors completely t the slot

and the bracket aligns with the rear

panel.

8. Secure the expansion card bracket

to the system with one screw.
