3-5ASUS RS100-E7/PI2

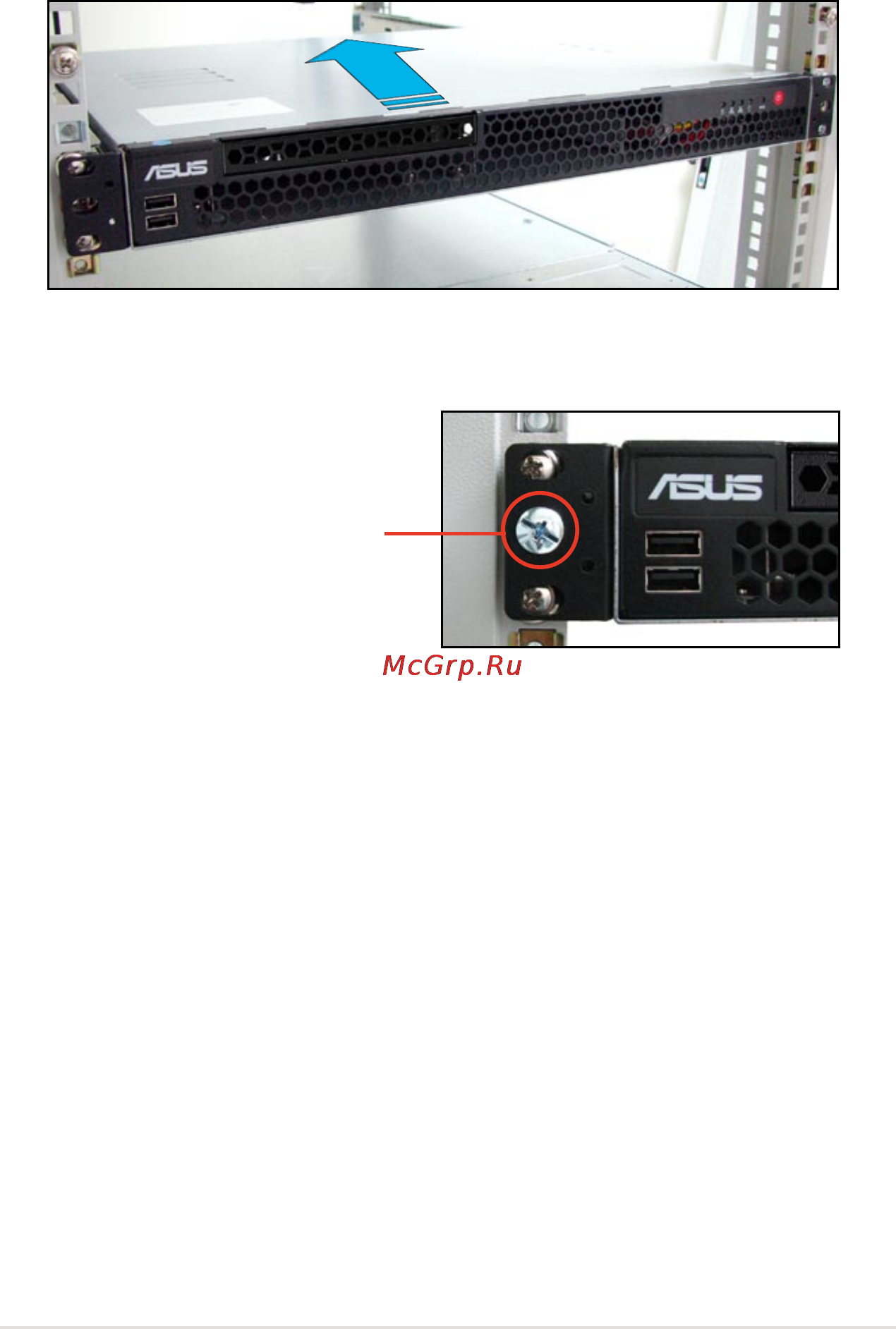

10. Secure the server to the rack with

one rack screw at one side. Secure

the other side as well.

9. Carefully push the server all the way to the back until the front panel ts the

front end of the rack.

Rack screw
