Asus b150 pro gaming d3 [28/94] Internal connectors
![Asus b150 pro gaming d3 [28/94] Internal connectors](/views2/1162406/page28/bg1c.png)
1-20
Chapter 1: Product introduction
11. USB 3.1 Type A port.This9-pinUniversalSerialBus(USB)TypeAportisforUSB
3.1devices.
12. USB 3.1 Type C port.ThisUniversalSerialBus(USB)TypeCportisforUSB3.1
mobileorperipheraldevices.
13. HDMI port.ThisportisforaHigh-DenitionMultimediaInterface(HDMI)connector,
andisHDCPcompliantallowingplaybackofHDDVD,Blu-ray,andotherprotected
content.
14. PS/2 keyboard port (purple).ThisportisforaPS/2keyboard.
1.7.2 Internal connectors

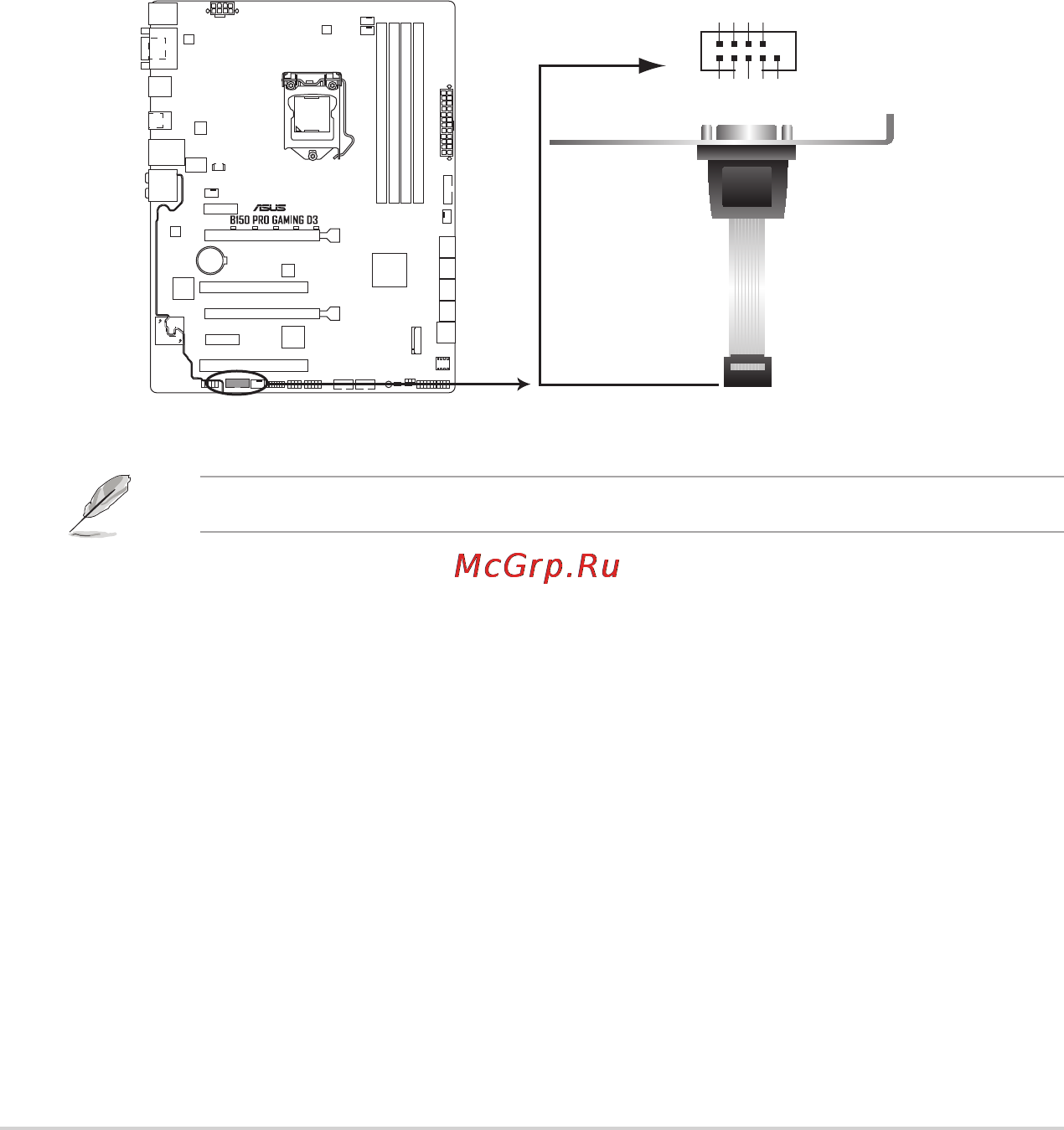

1. Serial port connector (10-1 pin COM)
Thisconnectorisforaserial(COM)port.Connecttheserialportmodulecabletothis
connector,theninstallthemoduletoaslotopeningatthebackofthesystemchassis.
TheCOMmoduleispurchasedseparately.
B150 PRO GAMING D3 Serial port (COM) connector
PIN 1
COM
DCD
TXD
GND
RTS
RI
RXD
DTR
DSR
CTS
