2.7 Monitor menu

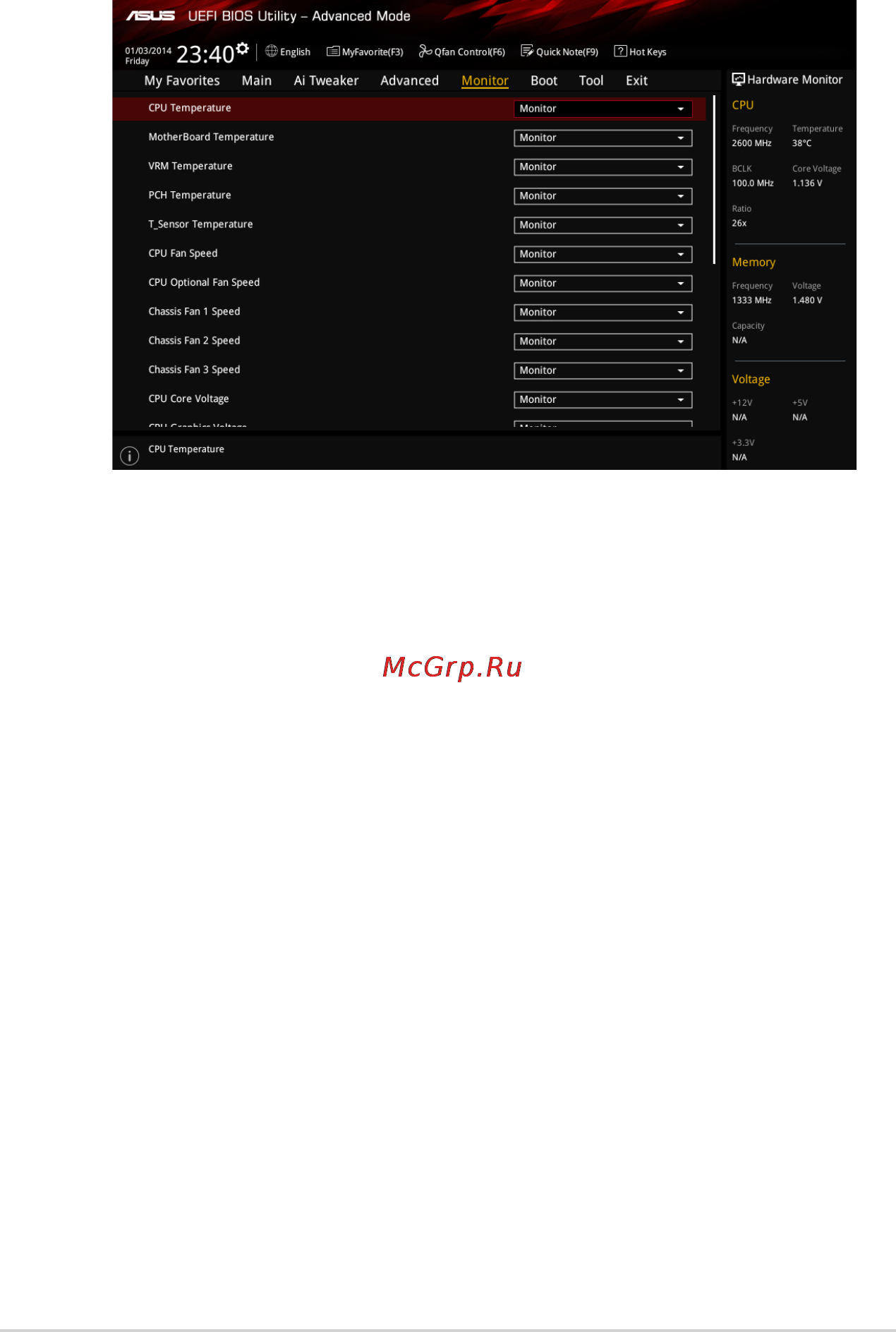

The Monitor menu displays the system temperature/power status, and allows you to change

the fan settings.

Scroll down to display the other BIOS items.

2.7.1 CPU/ MotherBoard Temperature, VRM Temperature,

PCH Temperature, T_Sensor Temperature [xxxºC/

xxxºF]/ [Ignore]

The onboard hardware monitor automatically detects and displays the CPU and motherboard

temperatures. Select [Ignore] if you do not wish to display the detected temperatures.

2.7.2 CPU Fan, CPU Optional Fan Speed, Chassis Fan 1/2/3

Speed [xxxx RPM]/ [Ignore]/ [N/A]

The onboard hardware monitor automatically detects and displays the CPU and chassis fan

1/2 speeds in rotations per minute (RPM). If the fan is not connected to the motherboard, the

eld shows N/A. Select [Ignore] if you do not wish to display the detected speed.

2.7.3 CPU Core Voltage, CPU Graphics Voltage, 3.3V

Voltage, 5V Voltage, 12V Voltage, PCH Core Voltage,

CPU System Agent Voltage, CPU VCCIO Voltage,

DRAM Voltage, CPU Standby Voltage

The onboard hardware monitor automatically detects the voltage output through the onboard

voltage regulators. Select [Ignore] if you do not want to detect this item.

2.7.4 Q-Fan Conguration

The subitems in this menu allows you to congure the Q‑Fan features.

Qfan Tuning

Click this item to automatically detect the lowest speed and congure the minimum duty cycle

for each fan.
