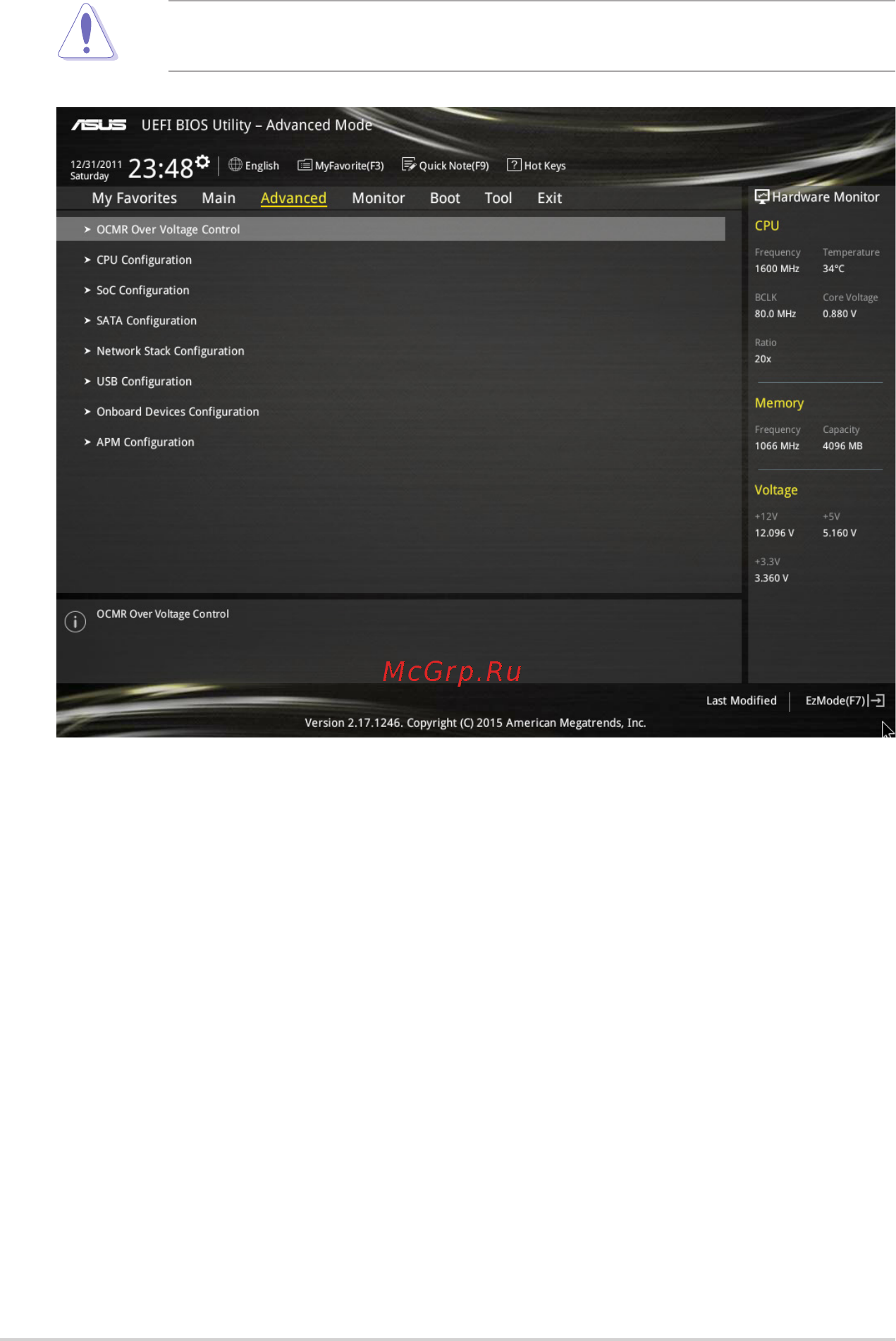

2.5 Advanced menu
The Advanced menu items allow you to change the settings for the CPU and other system
devices.
Be cautious when changing the settings of the Advanced menu items. Incorrect eld values
can cause the system to malfunction.
2.5.1 OCMR Over Voltage Control
DRAM Over Voltage [Auto]
Allows you to set the DRAM Over Voltage. Conguration options: [Auto] [1.35V] [1.5V]
[1.55V] [1.65V]
2.5.2 CPU Conguration
The items in this menu show the CPU‑related information that the BIOS automatically
detects.
Limit CPUID Maximum [Disabled]
When set to [Enabled], this item allows the legacy OS to boot even without support for CPUs
with extended CPUID functions. Conguration options: [Disabled] [Enabled]
Intel Virtualization Technology [Enabled]
When set to [Enabled], a VMM can utilize the additional hardware capabilities provided by
Vanderpool Technology. Conguration options: [Disabled] [Enabled]
2-14 Chapter 2: Getting started
