ASUS M5A97 LE R2.0
2-3
Chapter 2

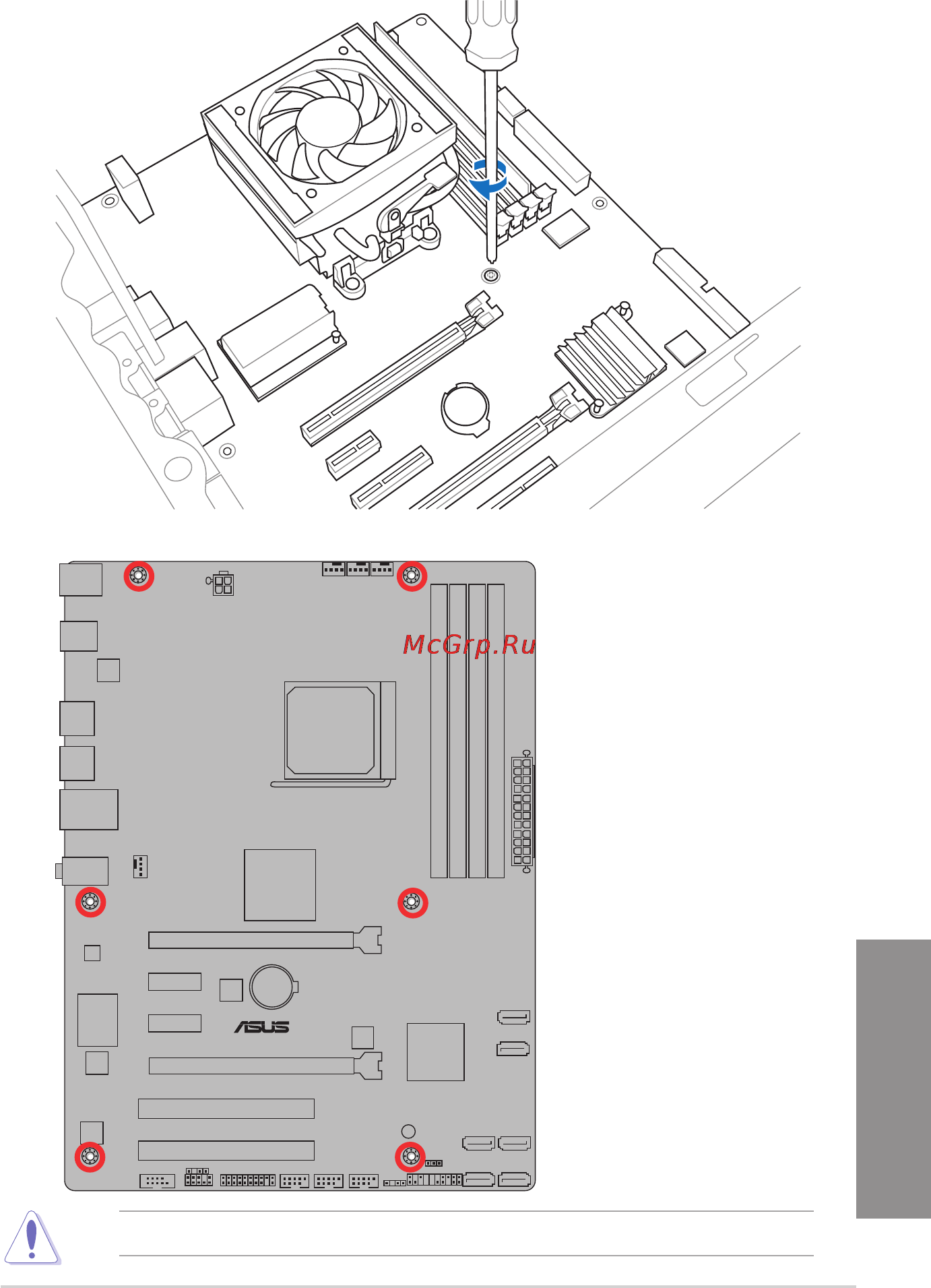

3. Place six screws into the holes indicated by circles to secure the motherboard to the
chassis.
DO NOT overtighten the screws! Doing so can damage the motherboard.
M5A97 LE R2.0
++E8047_M5A97_LE_R2.0_V2.indb 3 8/1/13 3:51:10 PM
