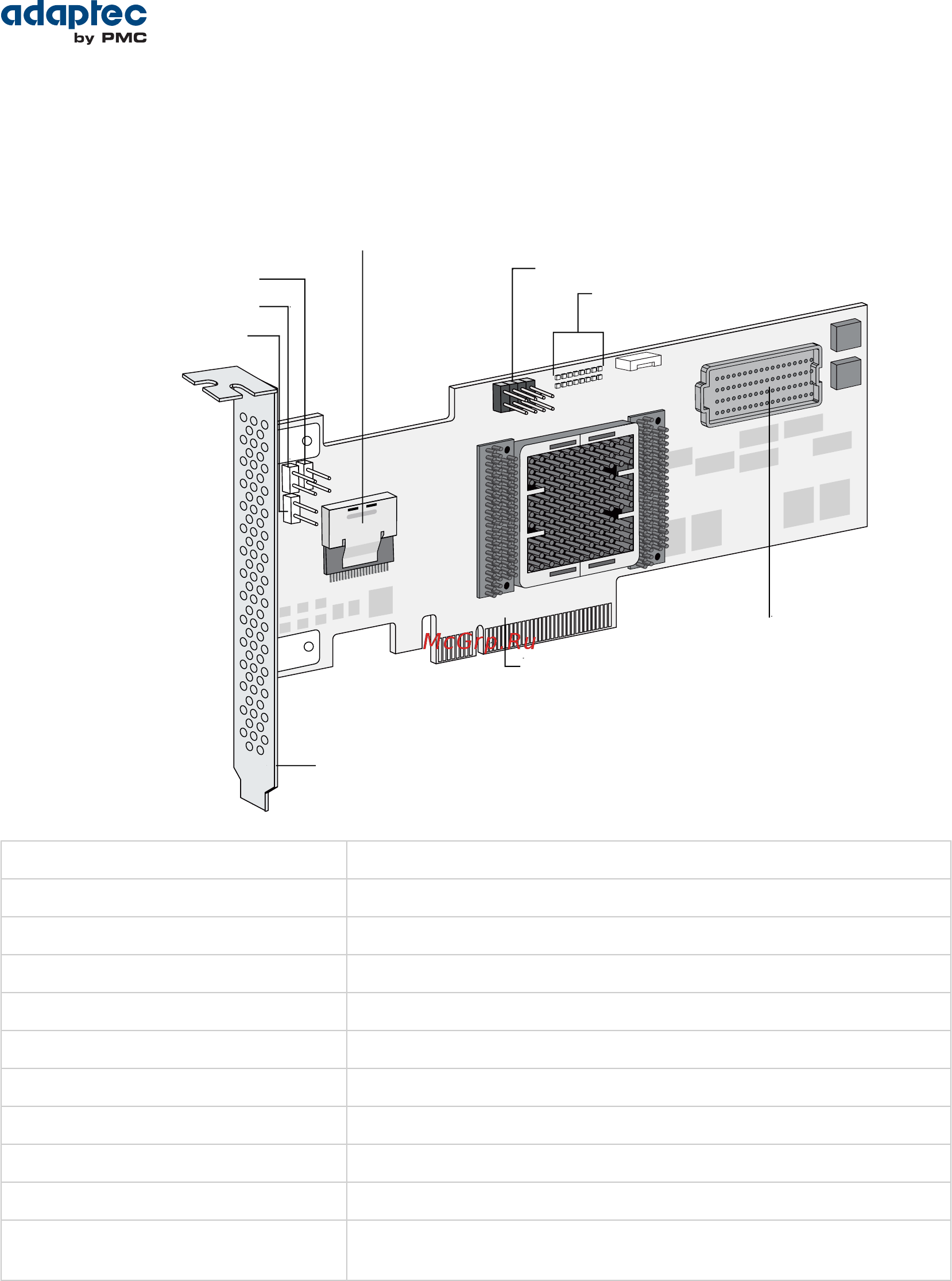

About the Adaptec RAID 6405T
The Adaptec RAID 6405T is a SAS RAID controller with these features:
Mounting bracket
PCIe x8 connector
Internal mini-SAS connector CN0
Daughterboard
connector
Aggregate Activity
Ext. Alarm connector
HDA mode connector
Drive Activity LED connectorfor CN0
Diagnostic/Activity LEDs
Low-prole MD2Form Factor
PCIe 2.0Bus compatibility
x8PCIe bus width
6 Gb/s per portData transfer rate
4Phys (Unied Serial Ports)
512 MB DDR2Standard cache
1 mini-SAS x4 (SFF-8087)Connectors, internal
4 direct-attached (or up to 256 with expanders)Maximum number of disk drives
SGPIO (Serial General Purpose Input/Output)Enclosure Support
YesOnboard speaker
Adaptec Flash Backup Module AFM-600 (optional; sold separately)Zero Maintenance Cache Protection
Module
23Proprietary and Condential to PMC-Sierra, Inc., and for its customers.
Document No.: CDP-00310-01-A Rev. A, Issue
Serial Attached SCSI RAID Controllers Installation and User's Guide
