Adaptec asr-81605zq sgl [51/116] Making your array bootable
![Adaptec asr-81605zq sgl [51/116] Making your array bootable](/views2/1163701/page51/bg33.png)

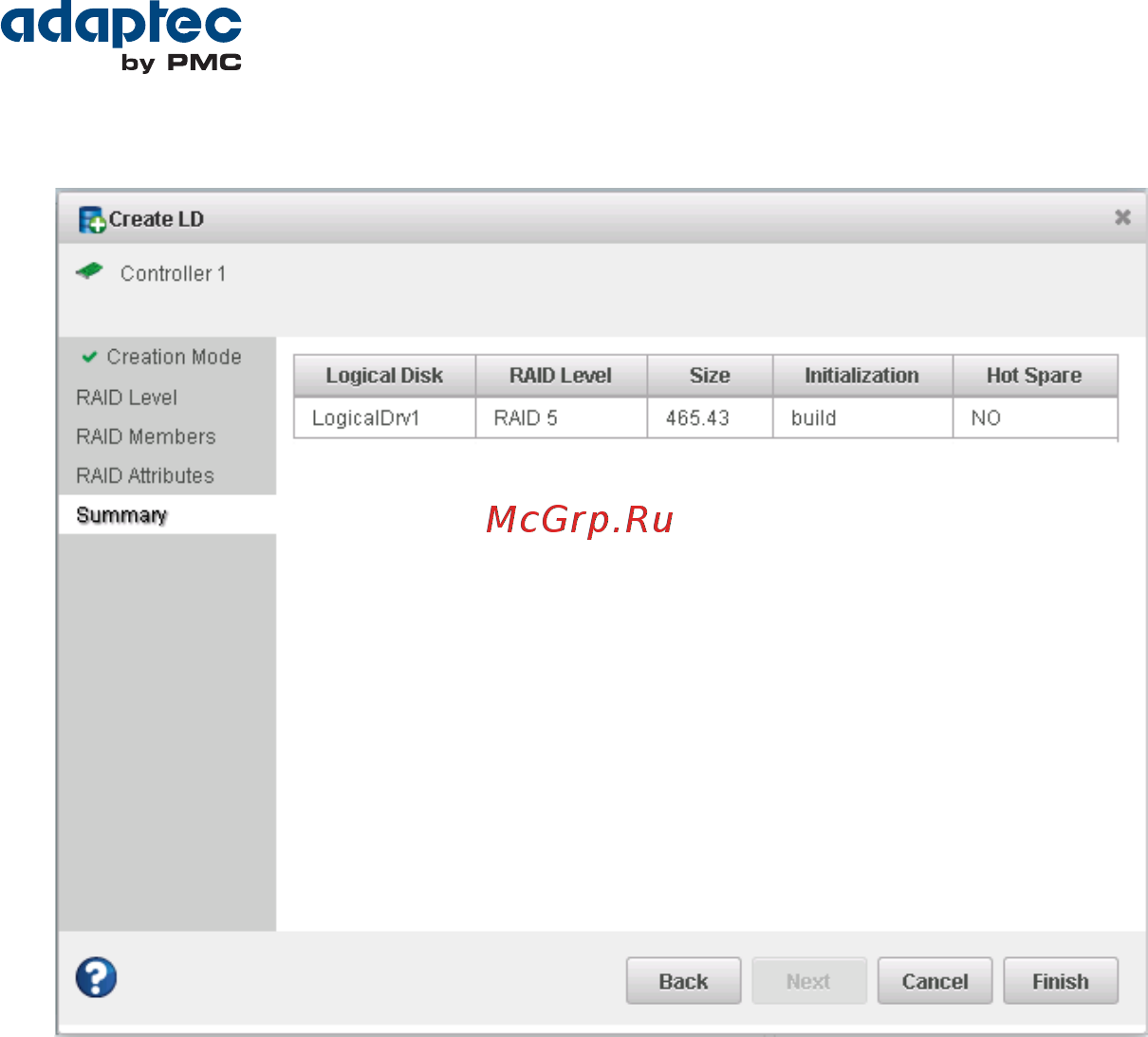

7. Click Finish.
maxView Storage Manager builds the logical drives.
8. Partition and format the logical drive(s).
The logical drives you created appear as a physical disk drives on your operating system. You must
partition and format these logical drives before you can use them to store data.
9. Close all windows, remove the bootable USB drive, then restart your system.
For information about installing and using maxView Storage Manager as a full software application,
see the maxView Storage Manager User's Guide.
10. Continue with the following section.
Making Your Array Bootable
Use the ARC Utility to make the array bootable (see Creating Bootable Arrays on page 84).
Then continue with Installing the Driver and an Operating System on page 52.
51Proprietary and Condential to PMC-Sierra, Inc., and for its customers.
Document No.: CDP-00310-01-A Rev. A, Issue
Serial Attached SCSI RAID Controllers Installation and User's Guide
