10 | English
1 619 P09 898 | (15.12.11) Bosch Power Tools
f If the application tool should become blocked, switch
the machine off. Loosen the application tool.
f Before switching on the power tool, make sure that the
application tool moves freely. When switching on with a
blocked drilling tool, high torque reaction can occur.
f Always wait until the machine has come to a complete
stop before placing it down. The tool insert can jam and
lead to loss of control over the power tool.

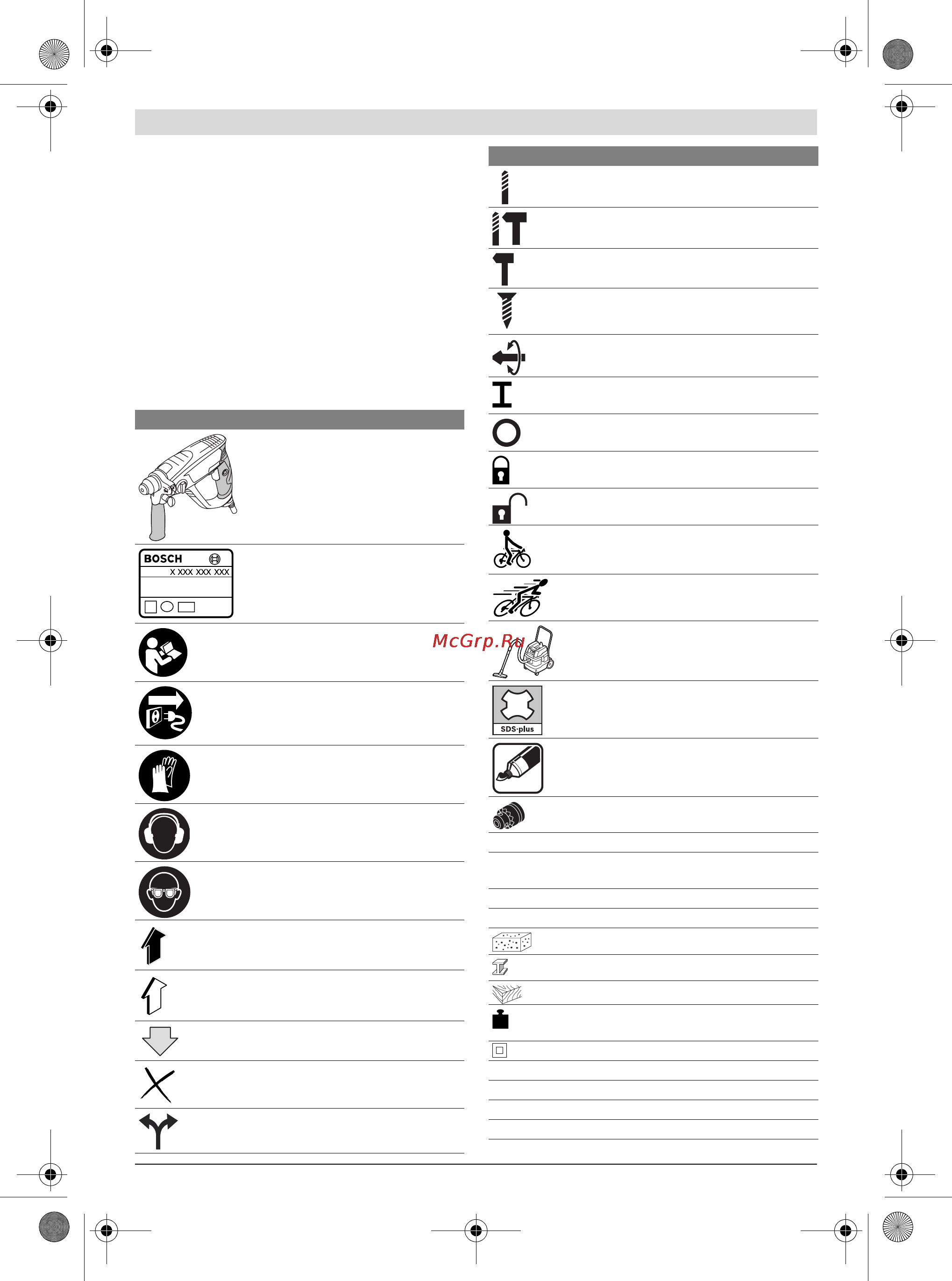

Symbols
The following symbols are important for reading and under-
standing the operating instructions. Please take note of the
symbols and their meaning. The correct interpretation of the
symbols will help you to use the machine in a better and safer
manner.
Symbol Meaning
PBH 2100 RE, PBH 2100 SRE,
PBH 2500 RE, PBH 2500 SRE:
Rotary Hammer
Grey-marked area: Handle (insulated
gripping surface)
Article number
Read all safety warnings and all instruc-
tions
Before any work on the machine itself,
pull the mains plug from the socket out-
let
Wear protective gloves
Wear ear protection.
Wear safety glasses/goggles
Movement direction
Reaction direction
Next step of action
Prohibited action
Right/left rotation
Drilling without impact
Hammer Drilling
Chiselling
Screwdriving
Vario-Lock
Switching On
Switching Off
On/Off switch lock-on
Releasing the On/Off switch
Low speed/impact rate
High speed/impact rate
Extraction
Tool holder
Apply a light coat of grease to the shank
end of the application tool
Key type drill chuck
P
1
Rated power input
E Impact energy per stroke according to
EPTA-Procedure 05/2009
n
0
No-load speed
Ø Drilling diameter, max.
Concrete
Steel
Wood
Weight according to EPTA-Procedure
01/2003
Protection class
L
wA
Sound power level
L
pA
Sound pressure level
a
h
Vibration total value
KUncertainty
