Chapter4: System

4.1 The Home page

After logging into the switch, the main page appears as the following. It contains three parts:

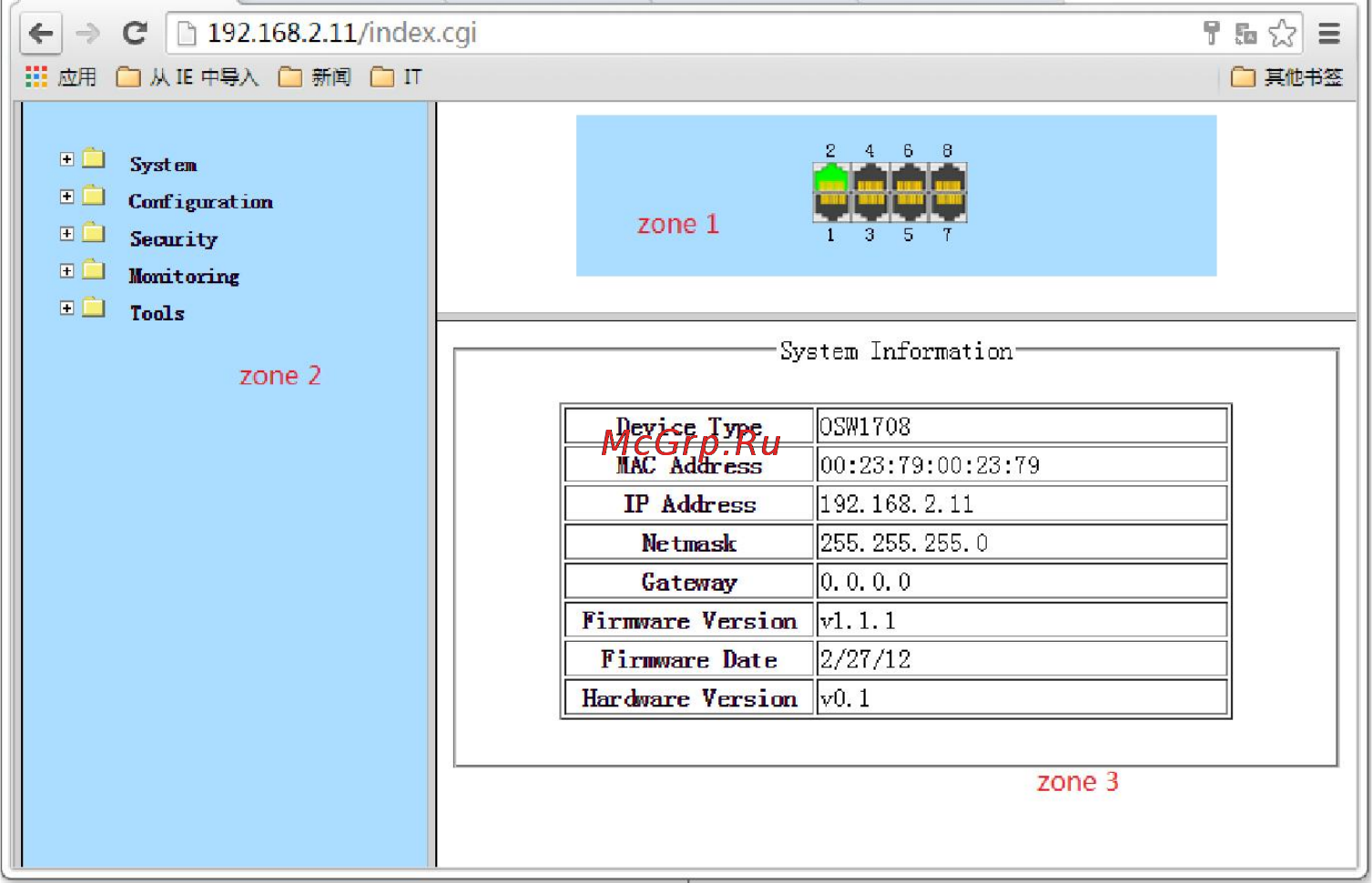

Figure 4-1-1

zone"1"：The Port table lies at the top of the page. It provides a visual representation of the

ports. The green icon indicates that the port is linked; the gray icon indicates that the port is not

linked;

zone"2"：On the left side of the page is the menu table. It contains 5 main menus. Each menu has

some submenus. Click on a menu, it will open its submenus and the main window.

zone"3"：The main part of the page is the main window to display the configuration page.

4.2 System Information

Click on the "System" ,the switch manage page will show as figure below, The system submenu
