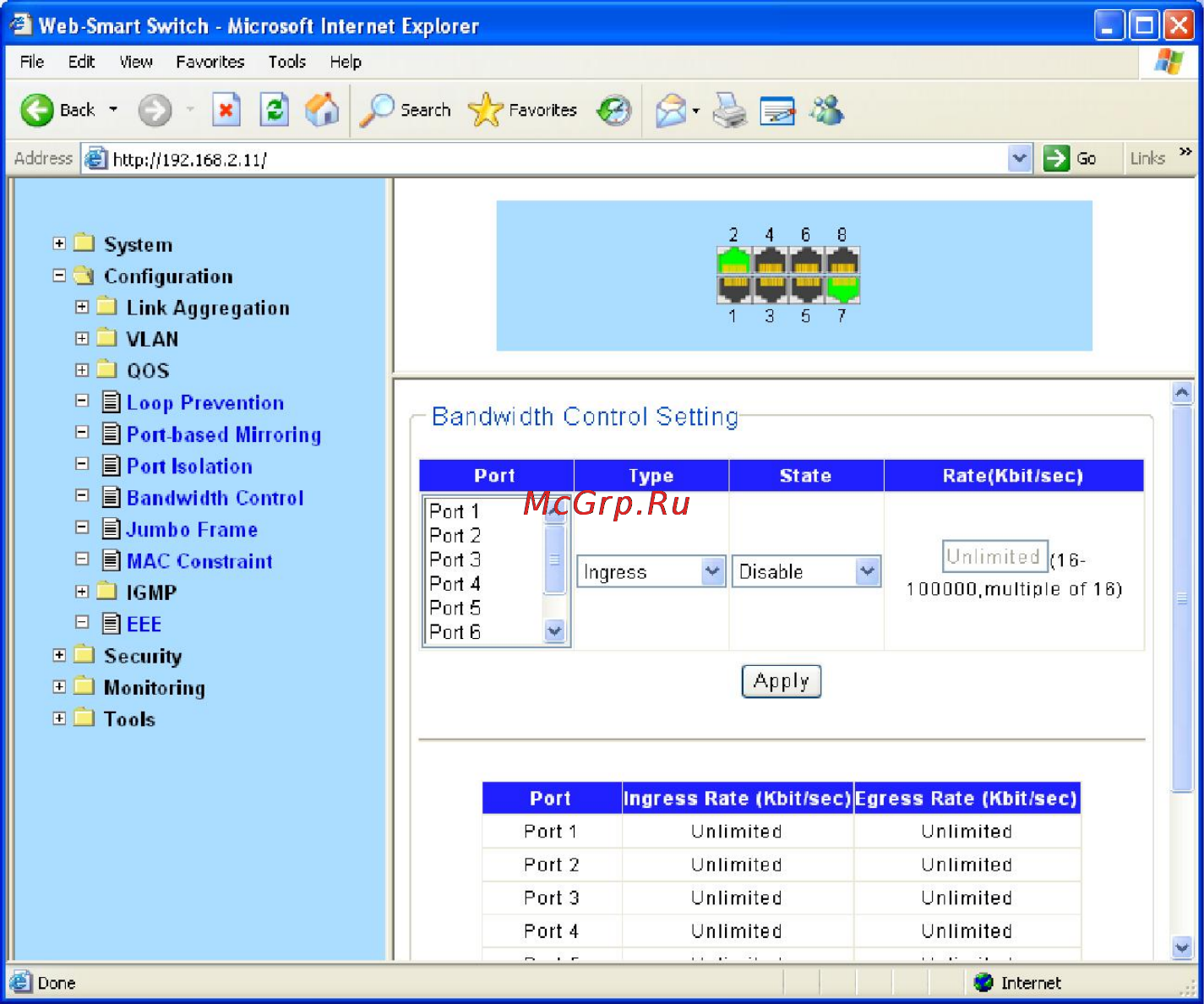

Figure 4-3-13

If you select port to set ingress/egress rate, the system will automatically select integral multiple

of 16Kbps that closest to the rate you entered as the real ingress/egress rate.

Ingress: Configure the bandwidth for receiving packets on the port. You can select a port to set

Ingress rate, the system will automatically select integral multiple of 16Kbps that closest to the

rate you entered as the real Ingress rate.

Egress: Configure the bandwidth for sending packets on the port. You can select a port to set

Egress rate, the system will automatically select integral multiple of 16Kbps that closest to the

rate you entered as the real Egress rate.

4.3.8 Jumbo Frame

Due to tremendous amount of traffic occurring in Ethernet, it is likely that some frames might

have a frame size greater than the standard Ethernet frame size. By allowing such frames (called

jumbo frames) to pass through Ethernet ports, you can forward frames with a size greater than

the standard Ethernet frame size and yet still within the specified parameter range.

Choose the menu Configuration→ Jumbo Frame to load the following page.
