Netis ST3224 [25/42] Qos configure

Schedule Mode

When the network is congested, the problem that many packets compete for resources must be

solved, usually in the way of queue scheduling. The switch implements four scheduling queues.

SP-Mode: Strict-Priority Mode. In this mode, the queue with higher priority will occupy the whole

bandwidth. Packets in the queue with lower priority are sent only when the queue with higher

priority is empty. The switch has four egress queues labeled. The disadvantage of SP queue is

that: if there are packets in the queues with higher priority for a long time in congestion, the

packets in the queues with lower priority will be “starved to death” because they are not served.

4.3.3.1 QoS Configure

Port Priority

On this page you can configure the port priority.

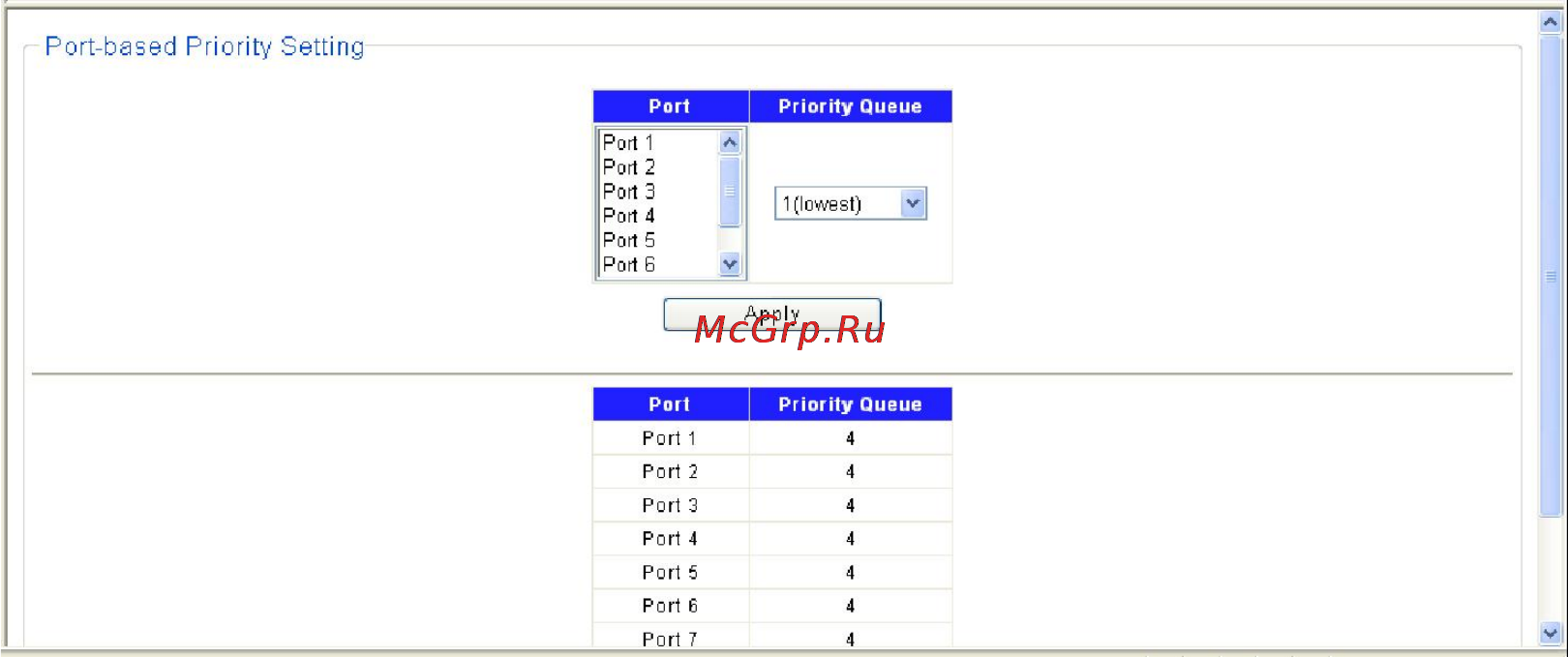

Choose the menu Configuration →QoS →Port-based Priority to load the following page.

Figure 4-3-8

1. Displays the physical port number of the switch.

2. Select the desired port to configure its priority.

3. Specify the priority for the port.
