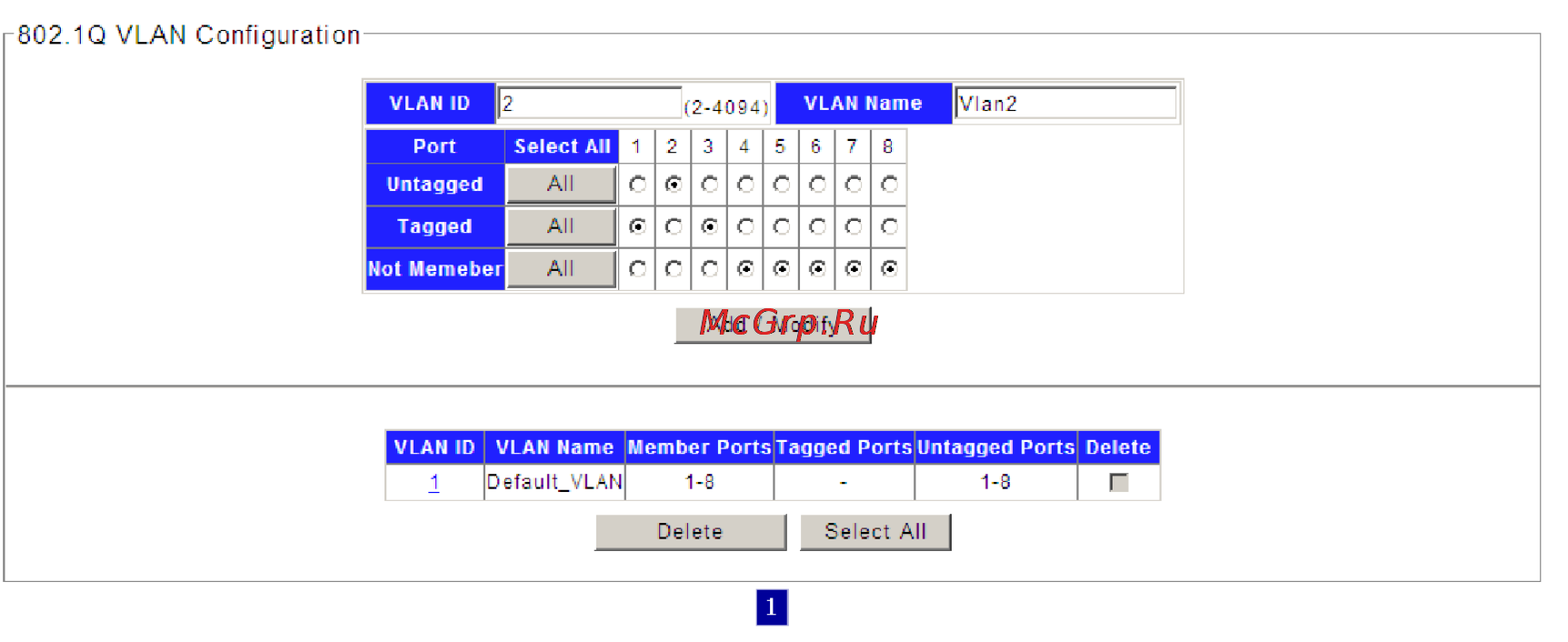

Figure 4-3-6

1). Specify the VLAN ID need to configure. Here is VLAN 2 e.g.

2). Specify the VLAN Name of VLAN 2.Here is VLAN2.

3). Select the member port of VLAN 2, and frame type supported: Untagged or Tagged. Select

port 2 as Untagged. Select port 1,3 as Tagged e.g.

4). Click Add/Modify to set VLAN member port.

4.3.3 QoS

QoS (Quality of Service) functions to provide different quality of service for various network

applications and requirements and optimize the bandwidth resource distribution so as to provide

a network service experience of a better quality.
