Megaline Rack

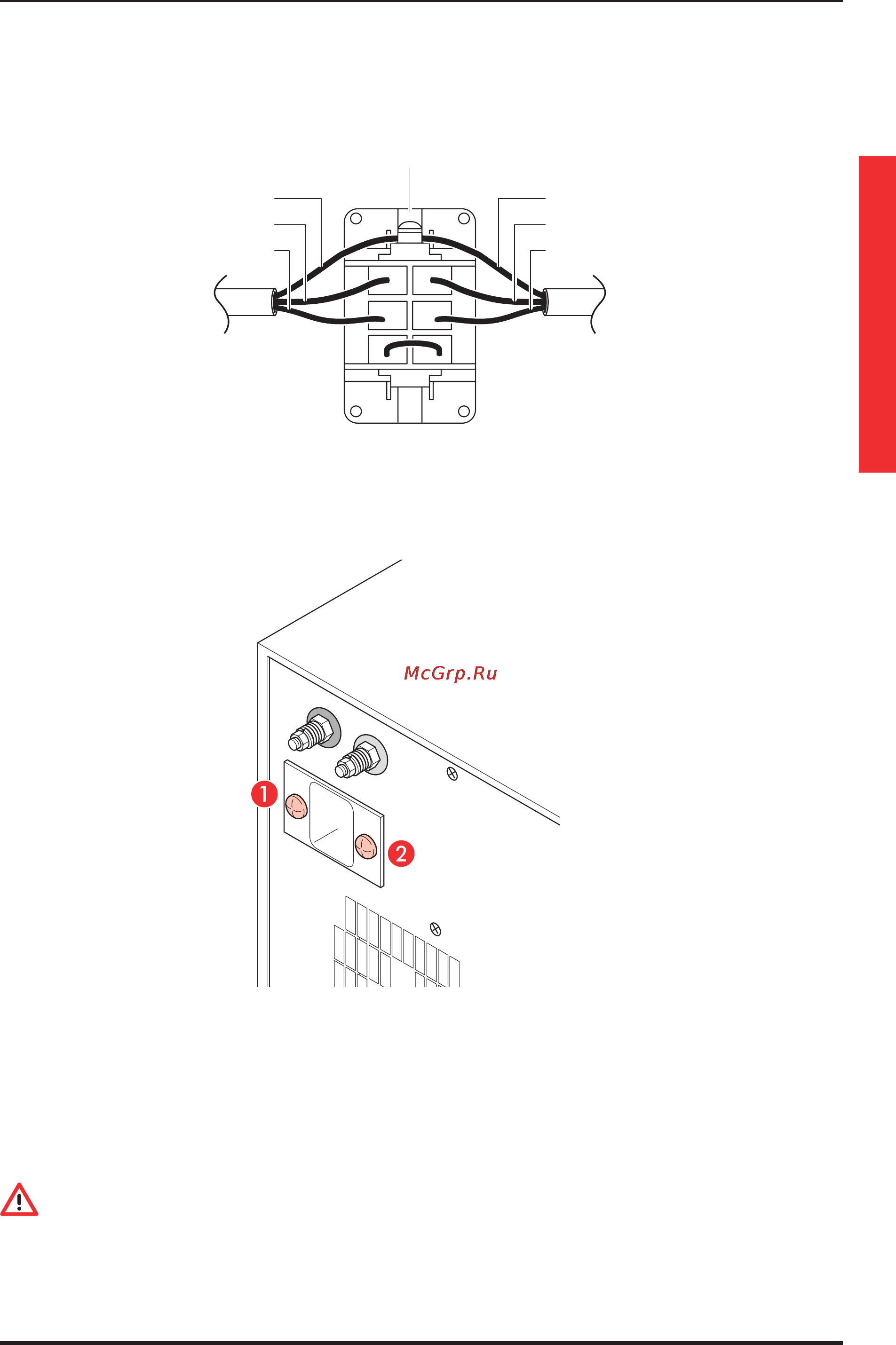

Input-output connector - Side with insertion of wires

3.5 Presetting for the expansion of autonomy

Your UPS is complete with presetting for the connection of additional battery cabinets. One or more extra battery cabinets

can be fitted to a single cabinet UPS as follows:

1. Unscrew screws 1 and 2 shown in figure 5.

2. Slide the protective casing that the connectors located inside the box are completely accessible.

3. Tighten the screws to secure the metal protection.

4. Connect the battery cabinet to the UPS using the dedicated cables.

5. Use the plaited conductor supplied to safeguard a good contact with earth.

ATTENTION

Make sure the UPS has been switched off and disconnected from the mains supply before proceeding with connections.

Connector

Reference

notch

Cable grip

Yellow-green wire

Brown wire

Input cable

(to the mains

electricity supply)

Output cable

(to load)

Blue wire

Yellow-green wire

Blue wire

Brown wire

Terminal n°1 PHASE OUTPUT

Terminal n°2 NEUTRAL OUTPUT

Terminal n°4 NEUTRAL OUTPUT

Terminal n°5 PHASE OUTPUT

Earth connection

Plastic housing

Fig. 4

Terminals.

Fig. 5

Procedure

Operative.
