Front-Panel Components
Note: The Switch illustrations used for this manual depict only the model
DGS-1016D Switch.

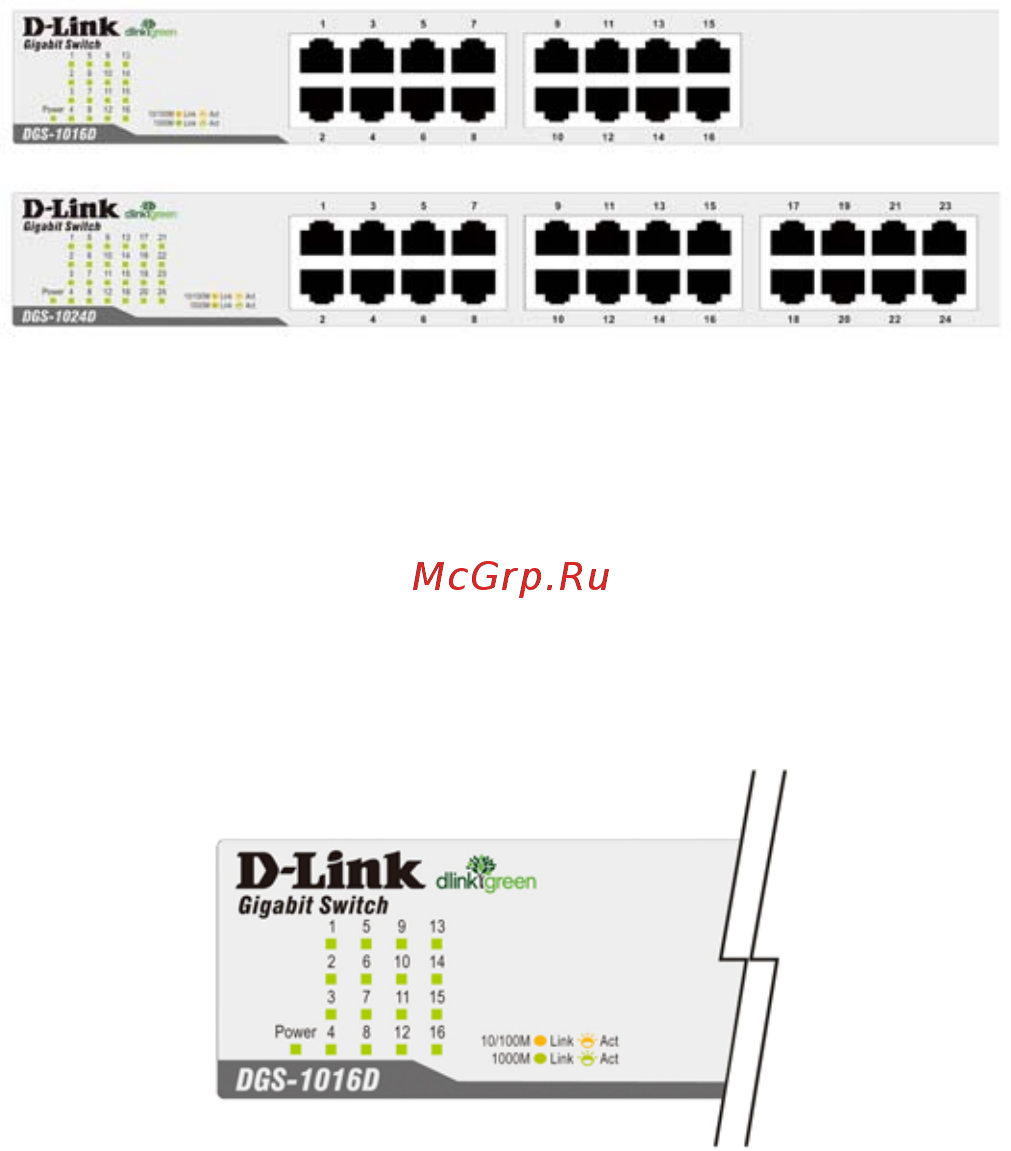

On the front panel of the Switch you will see the following.
LED status indicators
16 Auto-Negotiating 10/100/1000Mbps ports on the DGS-1016D
24 Auto-Negotiating 10/100/1000Mbps ports on the DGS-1024D
Front Panel V
iew of the Switch
LED Indicators
The LED indicators of the Switch include a Power status indicator and
Link/Act/Speed indicator for each port. When the Switch is powered on
or restarted, it initiates a diagnostics function as part of the boot up
process. The Link/Act/Speed indicators are also used to display Cable
Diagnostics information when the Switch boots up.
LED Indicators
