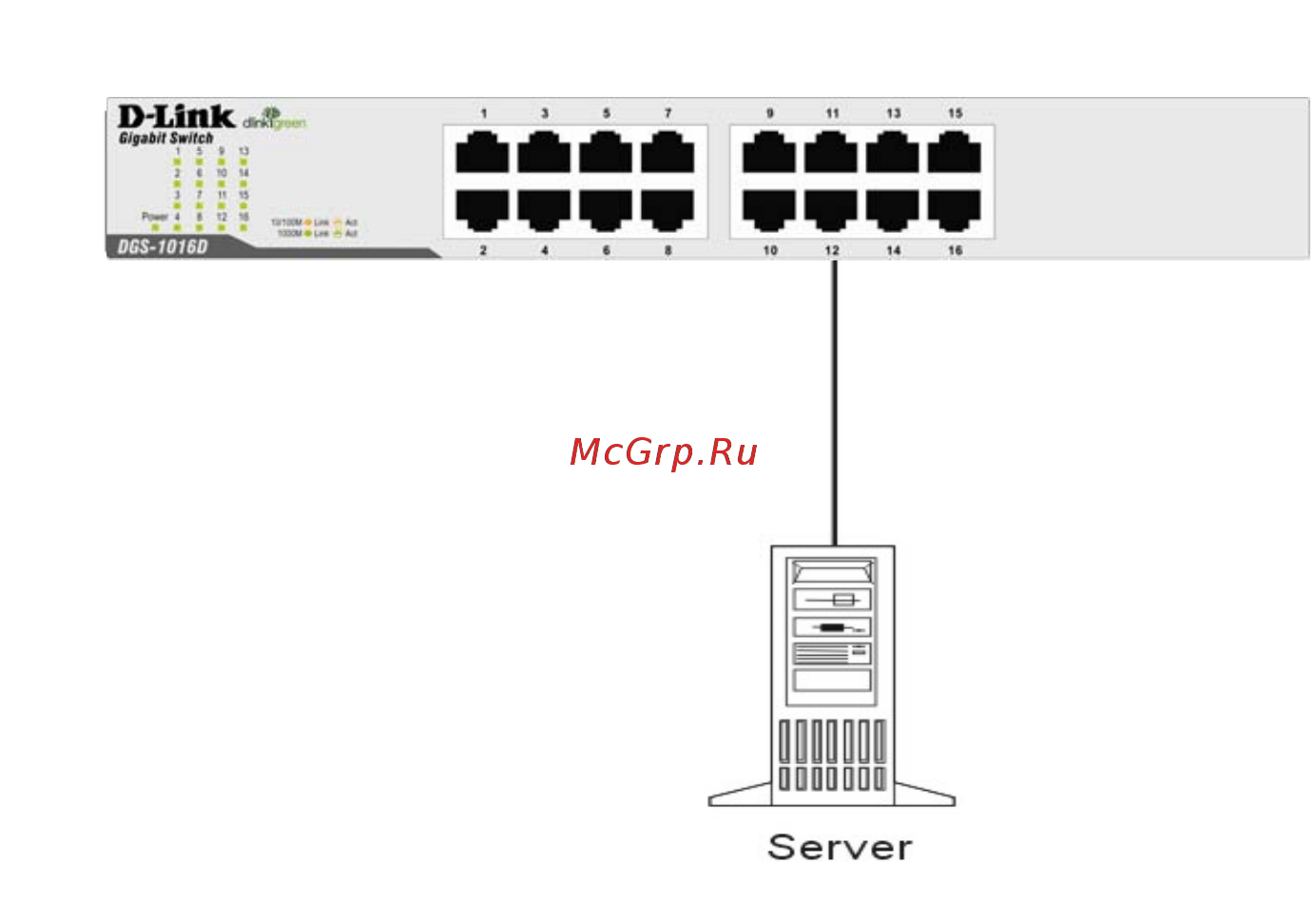

Connect to Network Backbone or Server
Any port may be used to uplink the Switch to a network backbone or
network server. When linking to a 1000BASE-T device the port
operates in full duplex mode.
Co
nnection to a Server
Observe the guidelines for cable quality stated at the beginning of this
section. The Link/Act/Speed LEDs for each port lights green when the
link is valid.
