Power Input on Rear Panel
The power cable connection is located on the rear panel of the Switch.

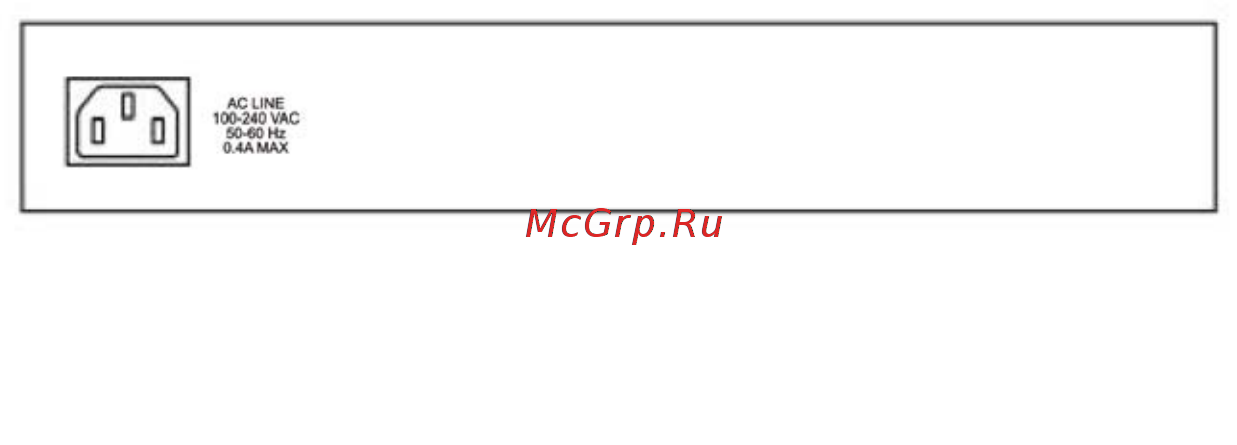

Rear panel view of the Switch
Switch po
wer input is provided by and internal universal power supply
(100-240VAC, 50-60Hz, 0.4A Max : 12V/2A).
The AC power connector is a standard three-pronged connector that
supports the power cord. Please see the Power On section below for
instru
ctions on how to properly connect the Switch to a power source.
