Connect to an End Node
End nodes include PCs outfitted with a 10, 100 or 1000 Mbps RJ-45
Ethernet/Fast Ethernet Network Interface Card (NIC) and Ethernet
ready routers. Use standard Ethernet cable to connect the Switch to
end nodes. Switch ports will automatically adjust to the hardware
characteristics (MDI/MDIX, speed, duplex) of the device to which it is
connected.
S

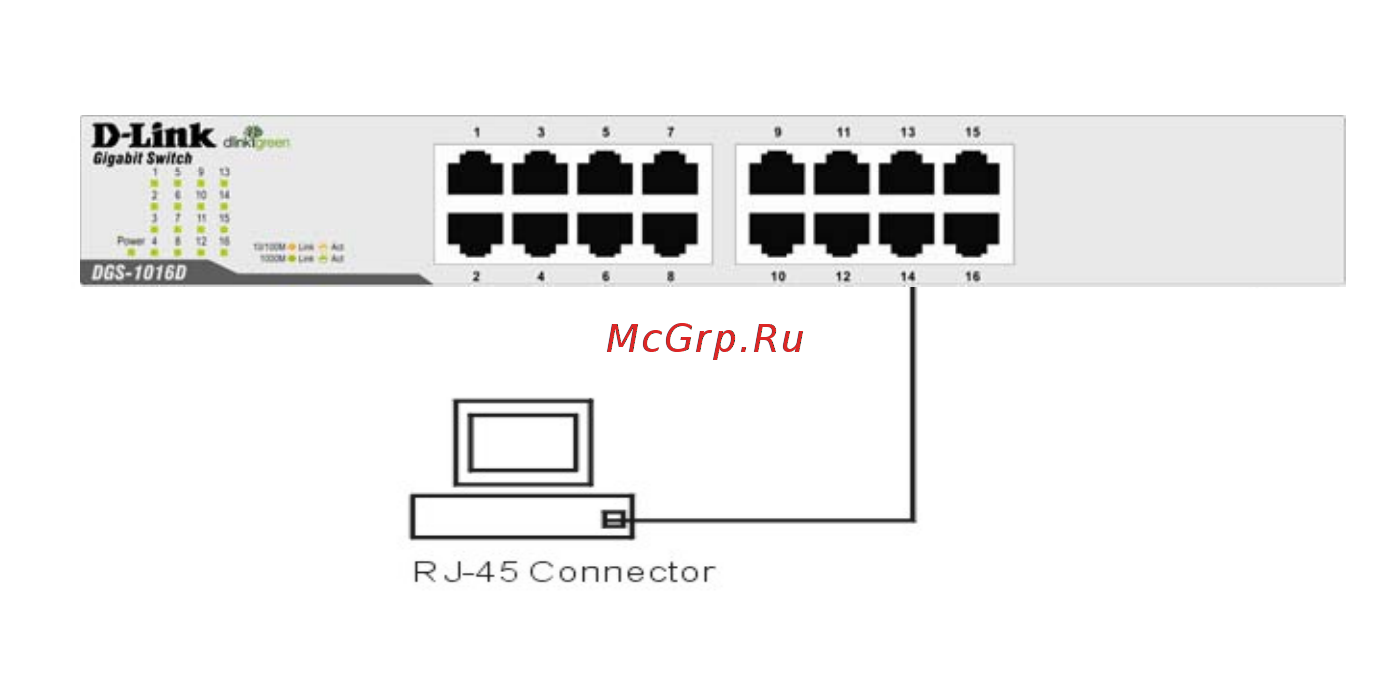

witch connected to an end node
Observe the guidelines for cable quality stated at the beginning of this
section. The Link/Act/Speed LEDs for each port lights green when the
link is valid.
