D-Link DMC-1910T [10/12] Switch

S w itc h 1 : O n - > Forced M ode

O ff - > A u to N e g o tia tio n m o d e

S w itc h 2 : O n -> LLR enable

O ff -> L L R d is a b le

Switch

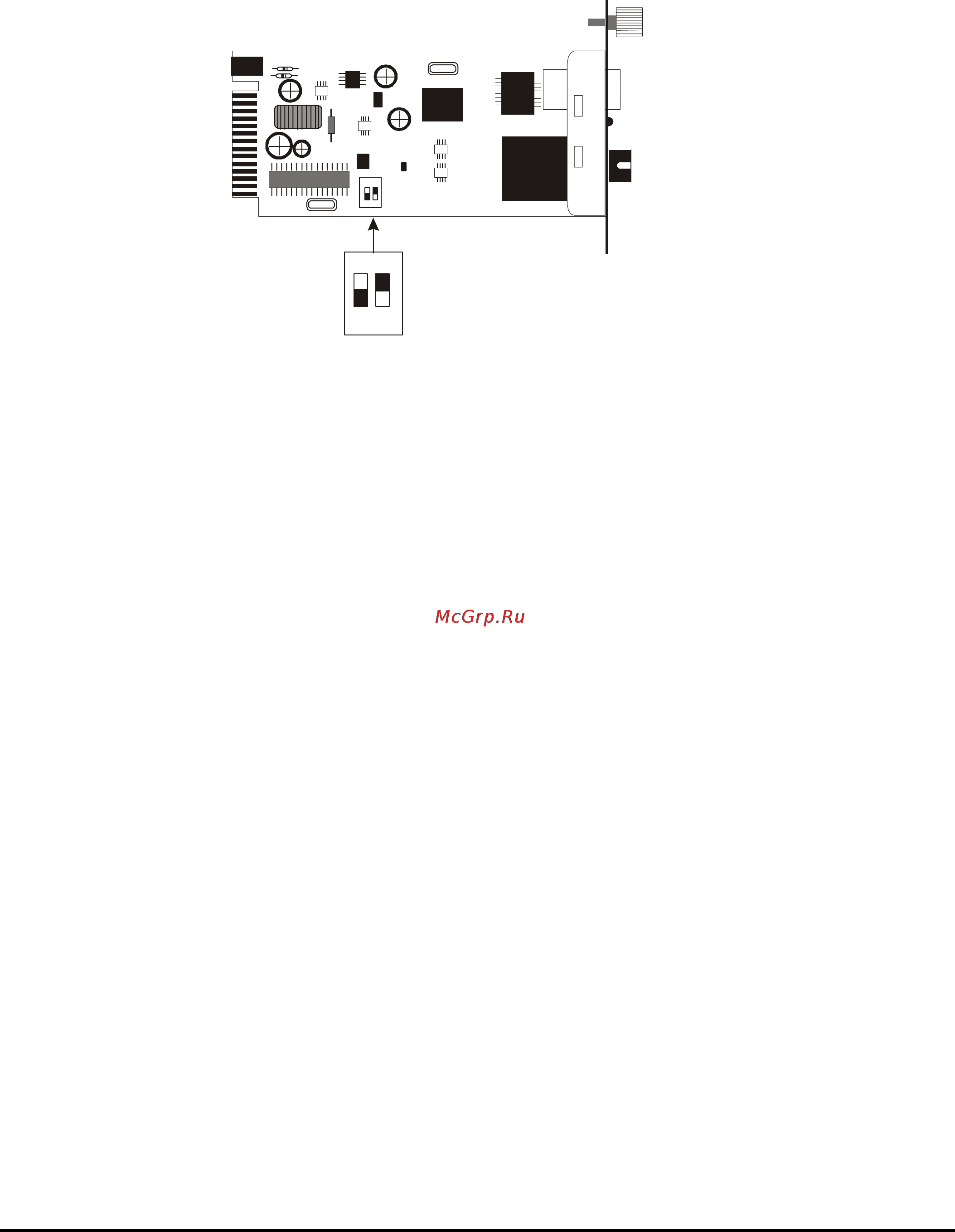

There is a two pin DIP switch on the module which define as switch 1 and switch 2:

Switch 1: Fiber mode switch

When the switch was turned to “On”, it means that the fiber was turned to forced mode, and “Off”

for auto-negotiation mode.

Note: Be sure the opposite end is using the same setting (forced or Auto-negotiation). And when using two converters at the same

time, the two converters MUST set to forced mode.

Switch 2: LLR

When the switch was turned to “On”, it means that the LLR was enabled and “Off” for disabled.

Note: When using two converters, don’t enable the both devices’ LLR function at the same time.
