Installation

This chapter gives step-by-step installation instructions for the Converter.

Selecting a Site for the Equipment

As with any electric device, you should place the equipment where it will not be subjected to

extreme temperatures, humidity, or electromagnetic interference. Specifically, the site you select

should meet the following requirements:

1. between 32 and 104 degrees Fahrenheit (0 to 40 degrees Celsius).

2. The relative humidity should be less than 90 percent, non-condensing.

3. Surrounding electrical devices should not exceed the electromagnetic field (RFC) standards for

IEC 801-3, Level 2 (3V/M) field strength.

4. Make sure that the equipment receives adequate ventilation. Do not block the ventilation holes

on each side of the switch or the fan exhaust port on the side or rear of the equipment.

5. The power outlet should be within 1.8 meters of the switch.

Connecting to Power

1. This Converter is a plug-and-play device.

2. Connect the supplied AC to DC power adaptor with a power voltage of 7.5Vdc/1.5Amp to the

DC-Jack on the converter, and then attach the plug into a standard AC outlet.

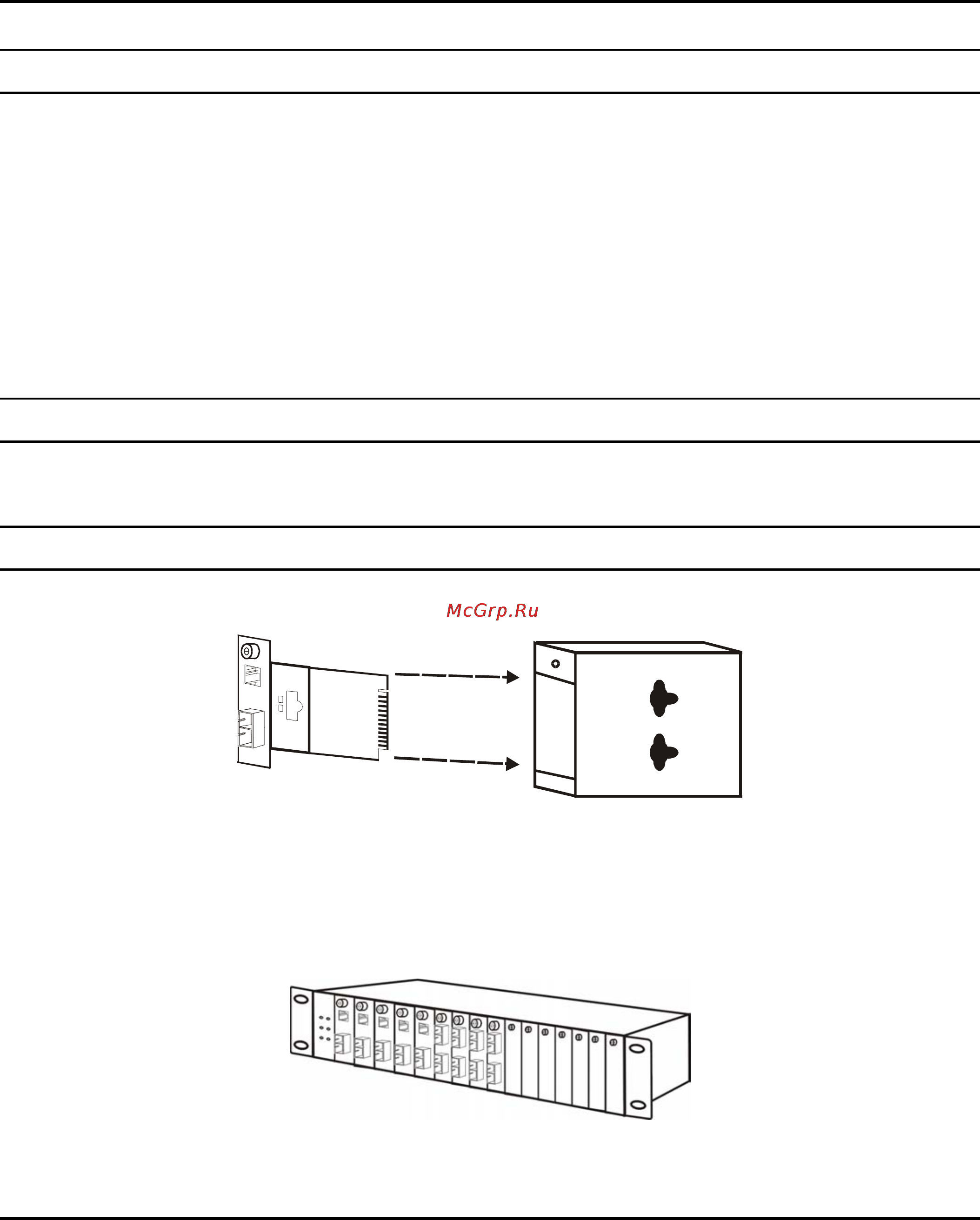

Installing in a Chassis

The Converter can be fit into any of the expansion slots on a special designed chassis.

y First, install the converter onto a carrier supplied with the chassis:

Step 1- Unscrew and pull out the media converter board.

Step 2- Plug in the media board to any of the vacant slot.

Step 3- Fit the converter onto the carrier and use the screw to secure it.
