6

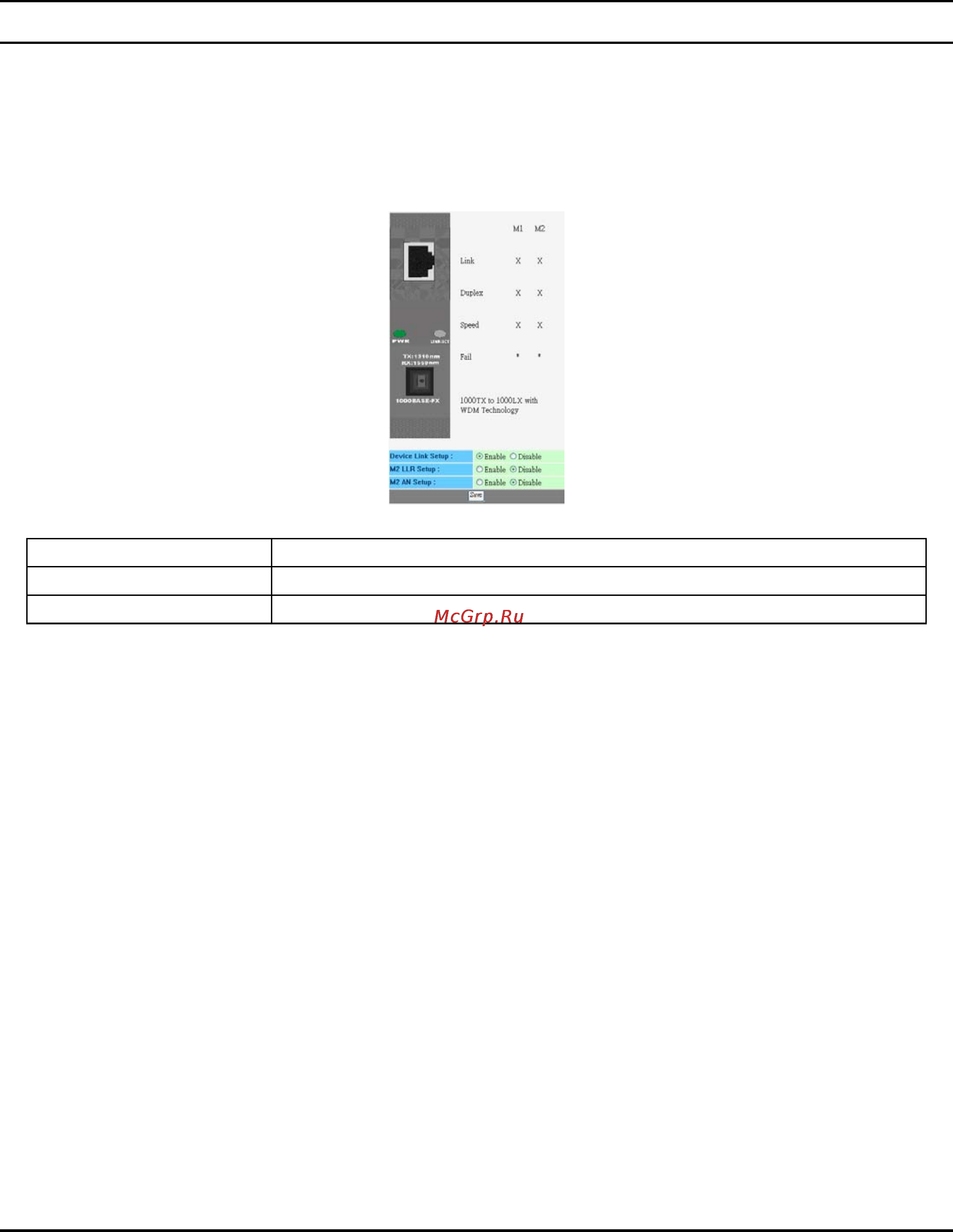

Monitoring the Converter through Management Module
There is a management module that can control this media converter through the chassis system;
this media converter can be controlled through Web Browser, SNMP and terminal emulation
program.
The management module will detect the default reset on the DIPswitches and display out the status;
also the management module can control the function through the chassis system.
Device Link Setup To enable or disable the connection of both UTP port and Fiber port
M2 LLR Setup To enable or disable the LLR function of the Fiber port
M2 AN Setup To set the UTP to Auto-negotiation or Forced Mode
NOTE: To control the function in a working station, need to collocate together with optional Chassis System and Management
Module.
