D-Link DMC-1910T [8/12] Link pass through function
![D-Link DMC-1910T [8/12] Link pass through function](/views2/1166204/page8/bg8.png)
8
Link Pass Through Function
LLCF (Link Loss Carry Forward)
When a device connected to the converter and the TP line loss the link, the converter’s fiber will
disconnect the link of transmit, so that the other ends will know that there is a linkage error on this
end. And when the Fiber line loss the link, the converter’s TP will disconnected, and the other end
will know that there is linkage problem exist.
There is a default LLCF setting on this converter.

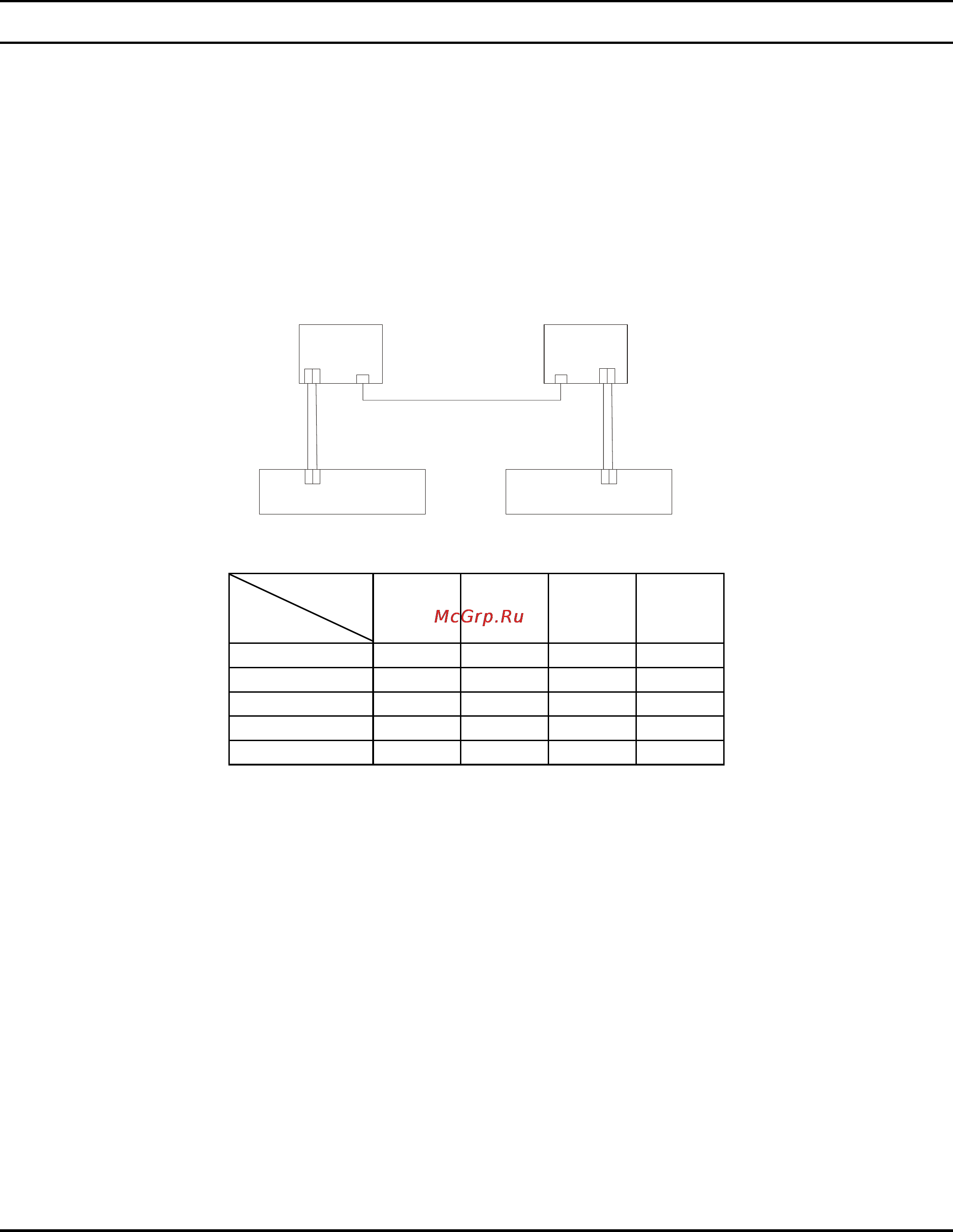

The table below shows how LLCF function is working:
Fiber
Copper
TX RX
Fiber
Copper
TX RX
RXTX RX TX
Gigabit Switch Gigabit Switch
LINK 1
LINK 2
LINK 3
LINK 4
Cable 1
Cable 2
Cable 3
Cable 4
Cable 5
Media
Converter A
Media
Converter B
Link Status
Disconnect
Link 1 Link 2 Link 3 Link 4
Cable 1 Off On On On
Cable 2 Off Off Off Off
Cable 3 On On On Off
Cable 4 Off Off Off Off
Cable 5 Off Off Off Off
