18 | Setting Up the Monitor

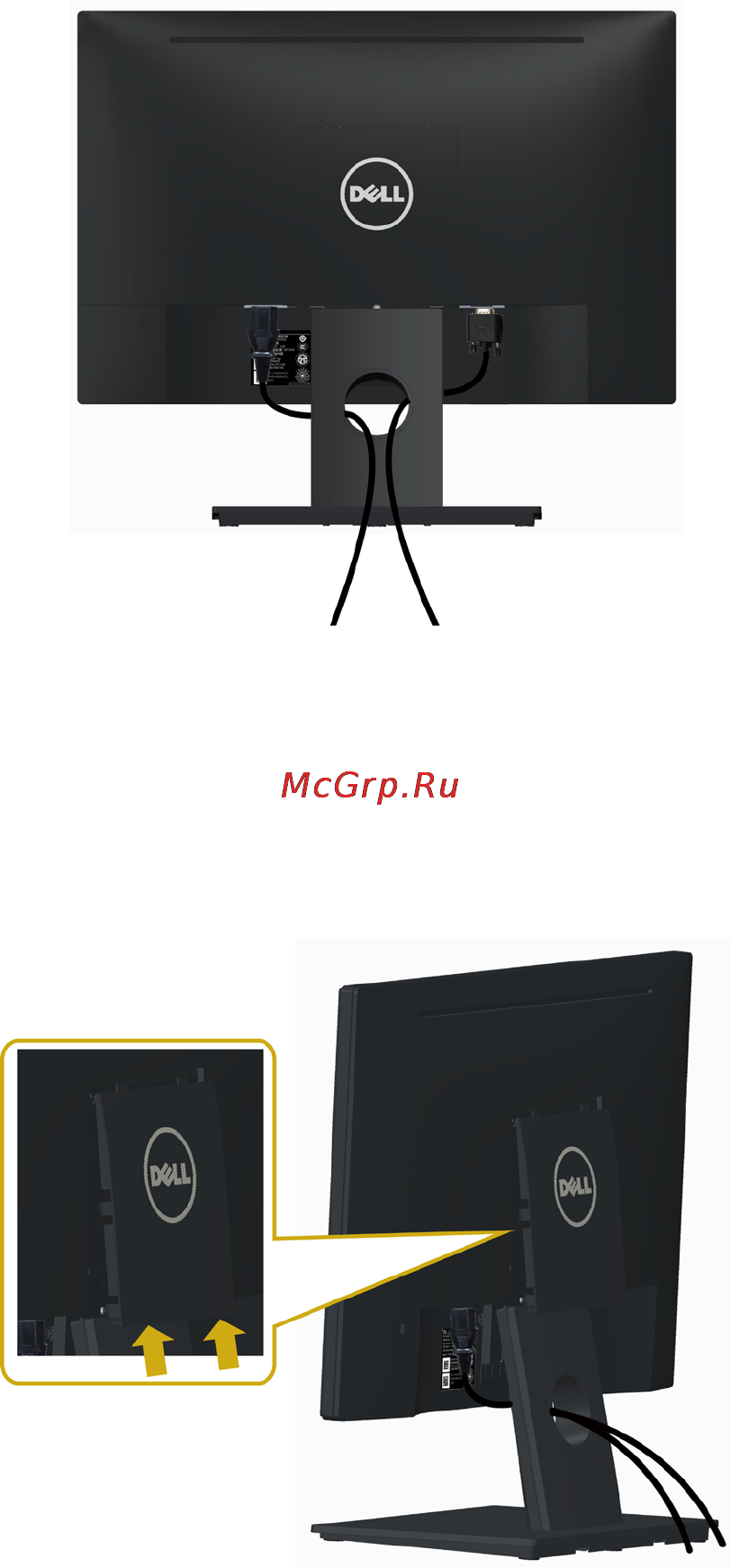

Organizing Your Cables
After attaching all necessary cables to your monitor and computer, (see Connecting
Your Monitor for cable attachment) organize all cables as shown above.
Removing the Vesa Cover
Lift from both side simultaneously, remove the VESA Cover away from the monitor.
