30 | Operating the Monitor
Icon Menu and
Submenus
Description

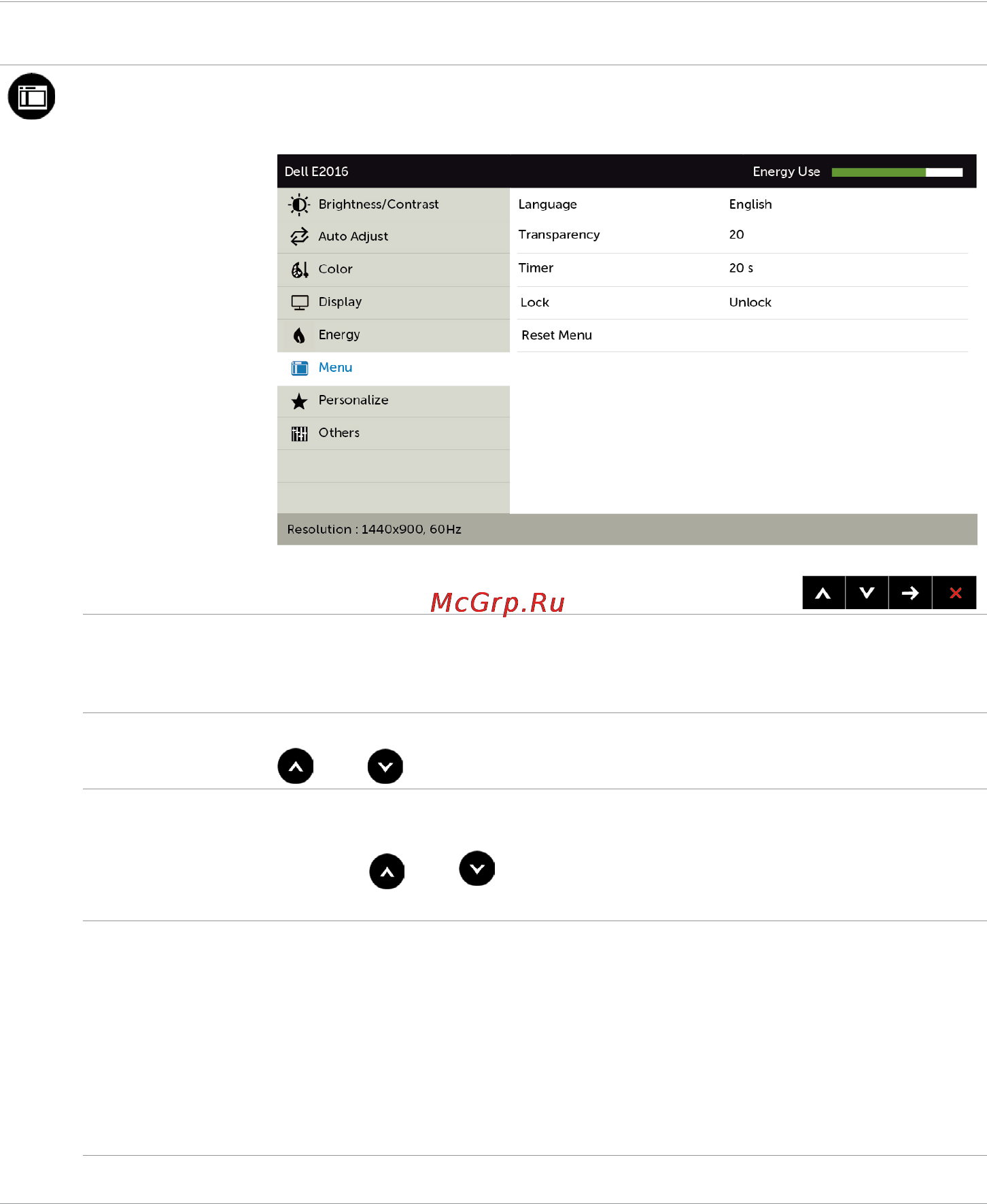

Menu Select this option to adjust the settings of the OSD, such as,
the languages of the OSD, the amount of time the menu
remains on screen, and so on.
Language Set the OSD display to one of eight languages.
(English, Spanish, French, German, Brazilian Portuguese,
Russian, Simplified Chinese, or Japanese).
Transparency Select this option to change the menu transparency by using
and (min. 0 / max. 100).
Timer OSD Hold Time: Sets the length of time the OSD remains
active after you press a button.
Use the and buttons to adjust the slider in 1-second
increments, from 5 to 60 seconds.
Lock
Controls user access to adjustments. When Lock is selected,
no user adjustments are allowed. All buttons are locked.
NOTE:
Lock function – Either soft lock (through OSD menu) or hard
lock (Press and hold the button left power button for 6 sec)
Unlock function – Only hard unlock (Press and hold the
button left power button for 6 sec)
Reset Menu Restore the menu settings to factory defaults.
