2-2 Connection of NanoPC

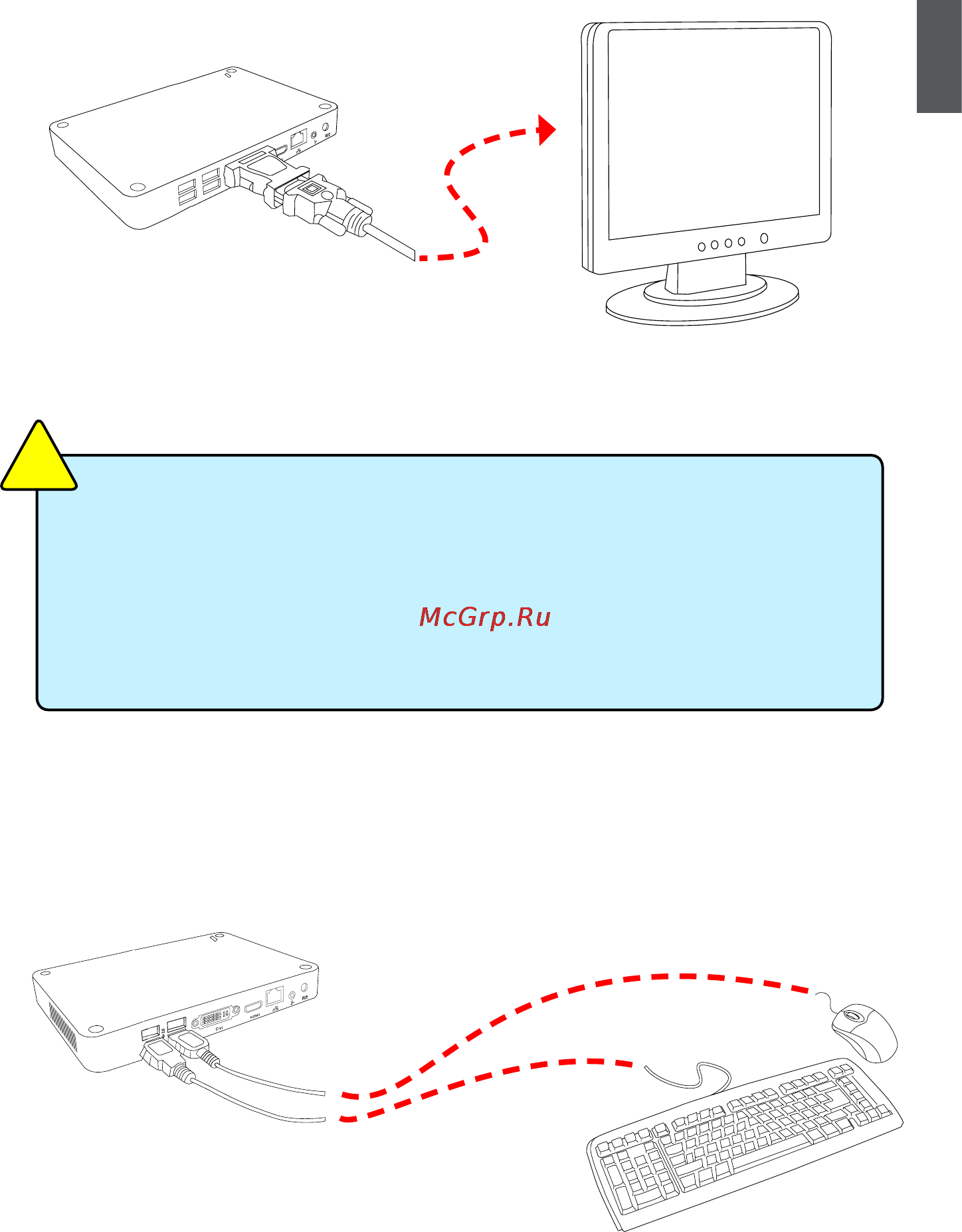

1. Connect the Monitor
Connect a monitor to the NanoPC through DVI connector.
2. Connect the USB Devices
Connect USB devices to the USB ports of the NanoPC, for example, mouse and keyboard.
■ Please use the customized DVI-VGA Adapter that comes with your NanoPC to
get a higher resolution on your VGA display.
■ You could have access to display adjustment for some HDTV or HD display
connected via HDMI port by using the scaling function in “AMD VISION Engine
Center”, a utility, which is available after the installation of AMD Chipset Driver. And
you can initiate this utility by rst right-clicking on Desktop and selecting it, then
further choosing “Scaling Options(Digital Flat-Panel)” in “My Digital Flat-Panels”.
