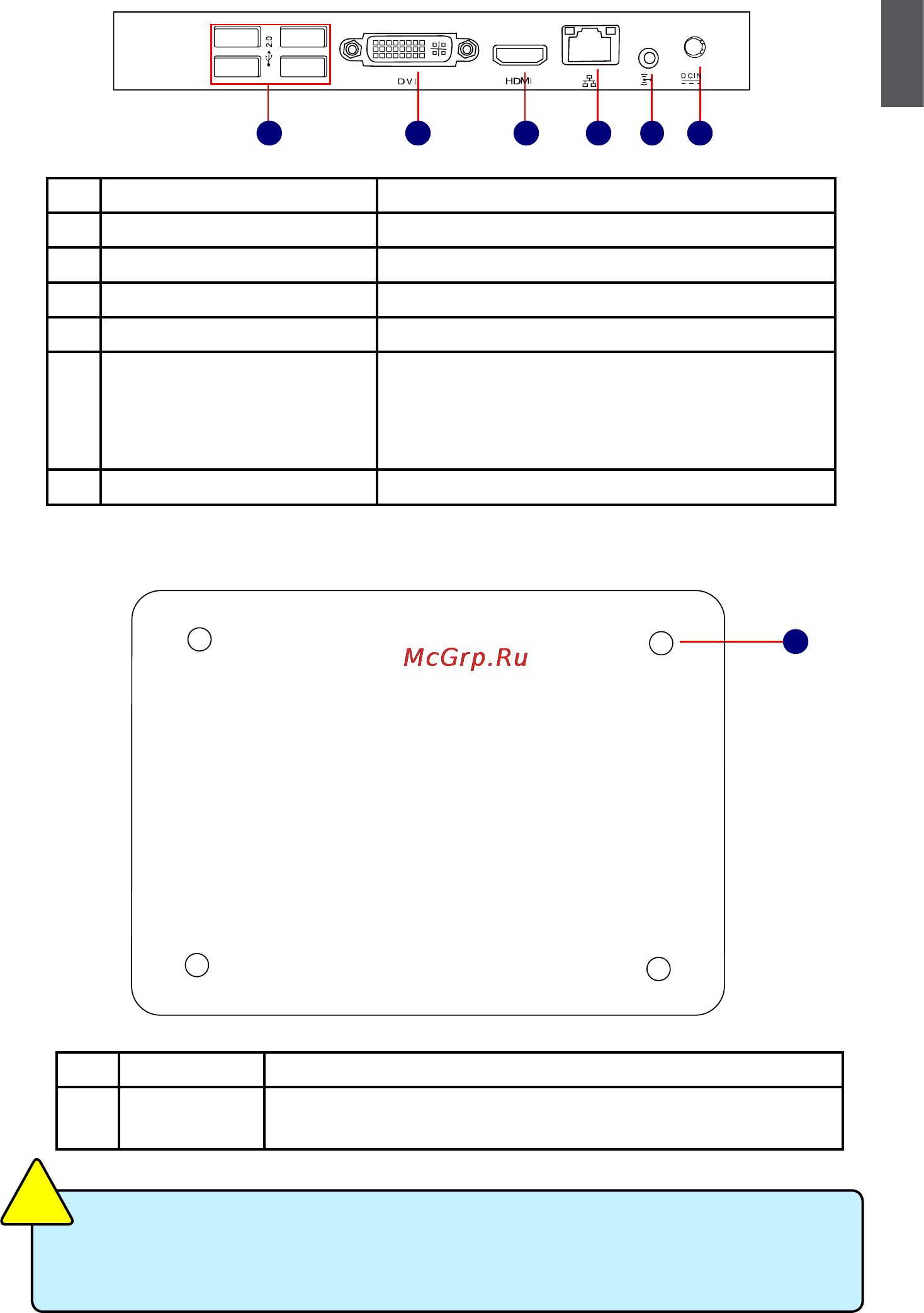

1-3 Back Side View

1-4 Bottom View

No. Name Description

1 USB 2.0 Ports Connects to USB devices

2 Display Output Port Connects to display device

3 HDMI Port Connects to HDMI audio and video

4 Network Port Standard RJ-45 network port

Line Out and SPDIF Out Port

Connects to powered analog speakers or record-

ing devices with optical connectors(3.5mm jack)

SPDIF function requires additional adapter and

adapter cable.

6 Power Input Port Connects to the power adapter

3 652

No. Name Description

1 Sheet Metal NETDVD(optional accessary) or Magnet-Metal-Feet can mag-

netize them to seat rmly

There are four Magnet-Metal-Feet in the package. Just align them to the sheet metal

on the bottom, then they can magnetize the NanoPC easily. The feet can seat and

protect NanoPC when it is placed on the tabletop.

CAUTION
