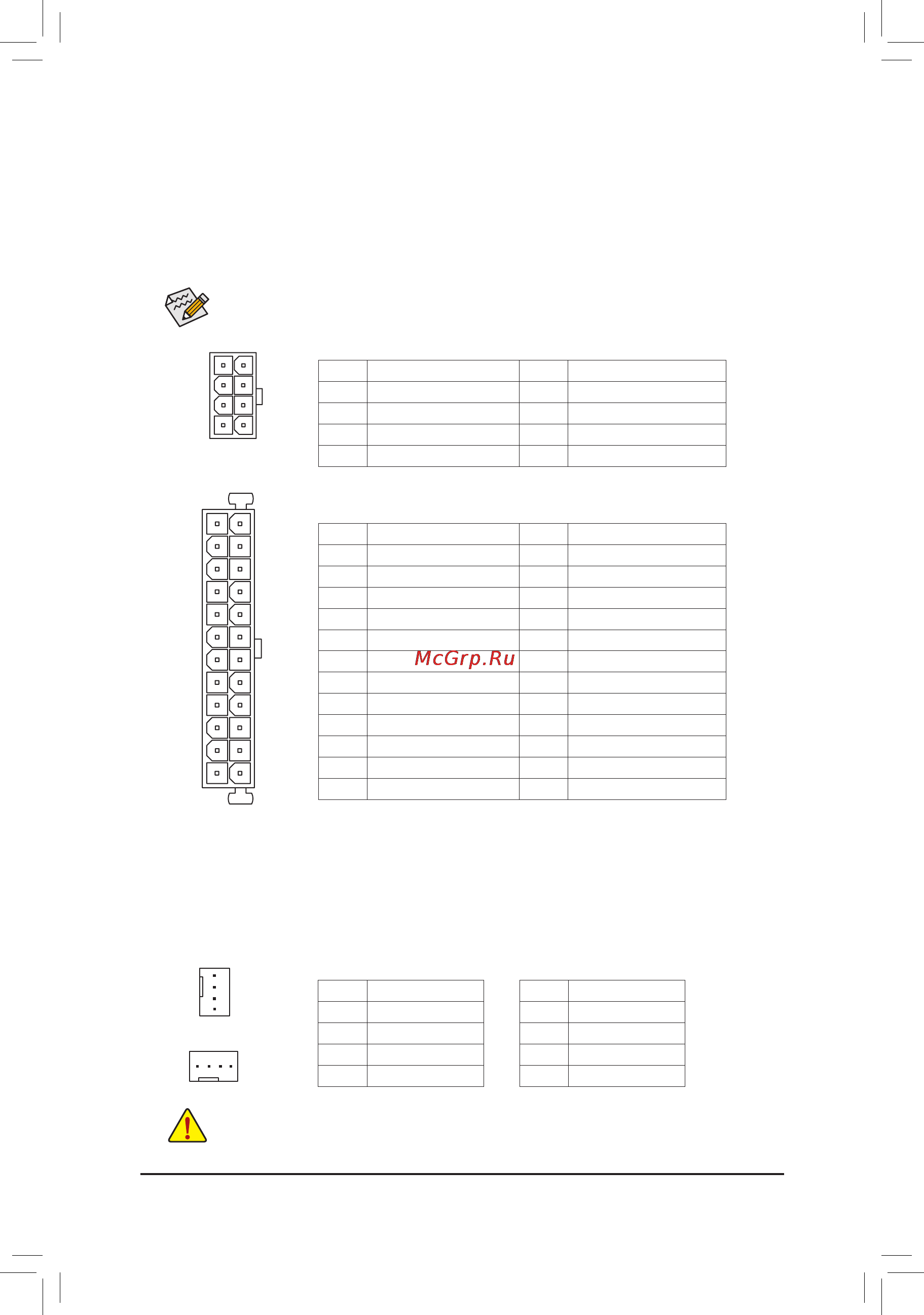

1/2) ATX_12V/ATX (2x4 12V Power Connector and 2x12 Main Power Connector)
With the use of the power connector, the power supply can supply enough stable power to all the components
on the motherboard. Before connecting the power connector, rst make sure the power supply is turned
off and all devices are properly installed. The power connector possesses a foolproof design. Connect the
power supply cable to the power connector in the correct orientation.
The 12V power connector mainly supplies power to the CPU. If the 12V power connector is not connected,
the computer will not start.
3/4) CPU_FAN/SYS_FAN (Fan Headers)
All fan headers on this motherboard are 4-pin. Most fan headers possess a foolproof insertion design.
When connecting a fan cable, be sure to connect it in the correct orientation (the black connector wire is
the ground wire). The speed control function requires the use of a fan with fan speed control design. For
optimum heat dissipation, it is recommended that a system fan be installed inside the chassis.
To meet expansion requirements, it is recommended that a power supply that can withstand high power consump-
tion be used (500W or greater). If a power supply is used that does not provide the required power, the result can
lead to an unstable or unbootable system.
ATX_12V:
DEBUG
PORT
G.QBOFM
131
24
12
ATX
ATX:
Pin No. Denition Pin No. Denition
1 3.3V 13 3.3V
2 3.3V 14 -12V
3 GND 15 GND
4 +5V 16 PS_ON (soft On/Off)
5 GND 17 GND
6 +5V 18 GND
7 GND 19 GND
8 Power Good 20 -5V
9 5VSB (stand by +5V) 21 +5V
10 +12V 22 +5V
11
+12V (Only for 2x12-pin ATX)
23 +5V (Only for 2x12-pin ATX)
12
3.3V (Only for 2x12-pin ATX)
24
GND (Only for 2x12-pin ATX)
• Be sure to connect fan cables to the fan headers to prevent your APU and system from overheating. Overheat-
ing may result in damage to the APU or the system may hang.
• These fan headers are not conguration jumper blocks. Do not place a jumper cap on the headers.
ATX_12V
DEBUG
PORT
G.QBOFM
84
5
1
Pin No. Denition Pin No. Denition
1
GND (Only for 2x4-pin 12V)
5 +12V (Only for 2x4-pin 12V)
2
GND (Only for 2x4-pin 12V)
6 +12V (Only for 2x4-pin 12V)
3 GND 7 +12V
4 GND 8 +12V
CPU_FAN
DEBUG
PORT
G.QBOFM
1
DEBUG
PORT
G.QBOFM
1
SYS_FAN
SYS_FAN:
Pin No. Denition
1 GND
2 Speed Control
3 Sense
4 Reserve
CPU_FAN:
Pin No. Denition
1 GND
2 +12V/Speed Control
3 Sense
4 Speed Control
