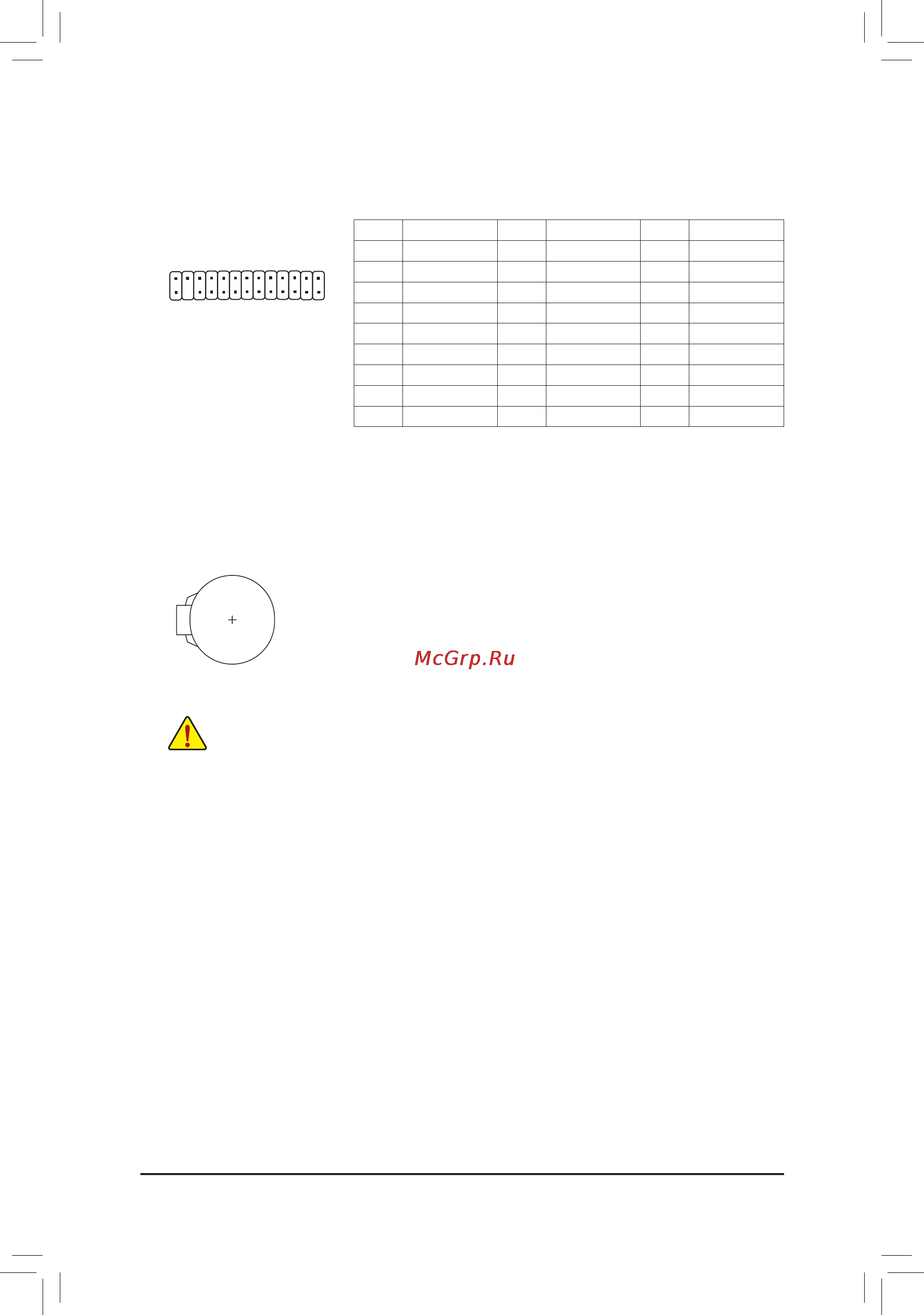

13) BAT (Battery)

The battery provides power to keep the values (such as BIOS congurations, date, and time information)

in the CMOS when the computer is turned off. Replace the battery when the battery voltage drops to a low

level, or the CMOS values may not be accurate or may be lost.

You may clear the CMOS values by removing the battery:

1. Turn off your computer and unplug the power cord.

2. Gently remove the battery from the battery holder and wait for one minute. (Or use a metal

object like a screwdriver to touch the positive and negative terminals of the battery holder,

making them short for 5 seconds.)

3. Replace the battery.

4. Plug in the power cord and restart your computer.

• Always turn off your computer and unplug the power cord before replacing the battery.

• Replace the battery with an equivalent one. Danger of explosion if the battery is replaced with an incorrect model.

• Contact the place of purchase or local dealer if you are not able to replace the battery by yourself or uncertain

about the battery model.

• When installing the battery, note the orientation of the positive side (+) and the negative side (-) of the battery

(the positive side should face up).

• Used batteries must be handled in accordance with local environmental regulations.

12) LPT (Parallel Port Header)

The LPT header can provide one parallel port via an optional LPT port cable. For purchasing the optional

LPT port cable, please contact the local dealer.

DEBUG

PORT

G.QBOFM

Pin No. Denition Pin No. Denition Pin No. Denition

1 STB- 10 GND 19 ACK-

2 AFD- 11 PD4 20 GND

3 PD0 12 GND 21 BUSY

4 ERR- 13 PD5 22 GND

5 PD1 14 GND 23 PE

6 INIT-

PD6 24

No Pin

7 PD2 16 GND 25 SLCT

8 SLIN- 17 PD7 26 GND

9 PD3 18 GND
