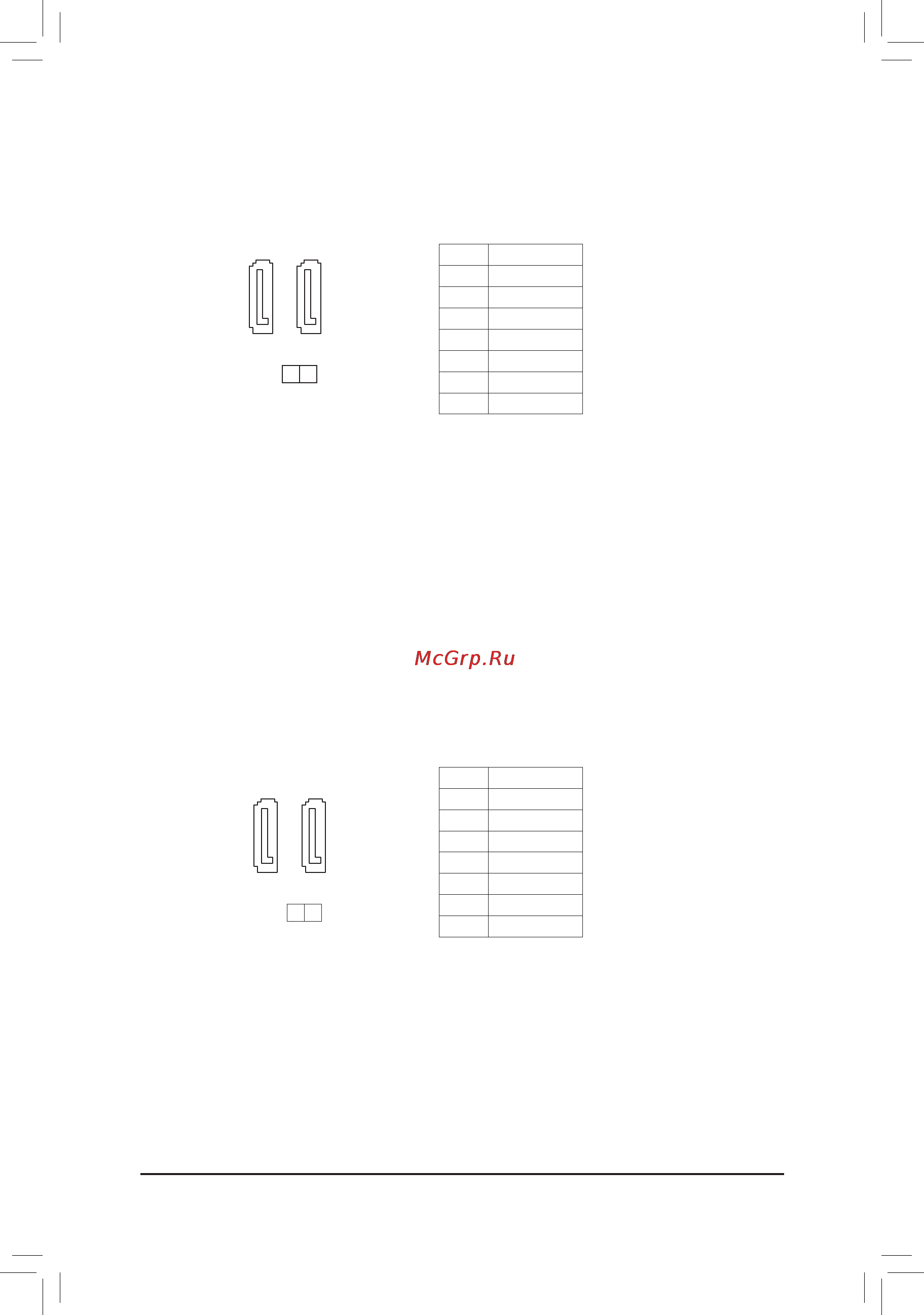

5) SATA3 0/1 (SATA 6Gb/s Connectors, Controlled by Intel
®
SoC)
The SATA connectors conform to SATA 6Gb/s standard and are compatible with SATA 3Gb/s and SATA
1.5Gb/s standard. Each SATA connector supports a single SATA device.
Pin No. Denition
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND
SATA3
1 0
DEBUG
PORT
G.QBOFM
DEBUG
PORT
G.QBOFM
77
11
6) SATA3 2/3 (SATA 6Gb/s Connectors, Controlled by ASMedia
®
ASM1061)
The SATA connectors conform to SATA 6Gb/s standard and are compatible with SATA 3Gb/s and SATA
1.5Gb/s standard. Each SATA connector supports a single SATA device.
Pin No. Denition
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND
SATA3
3 2
DEBUG
PORT
G.QBOFM
DEBUG
PORT
G.QBOFM
77
11
- 12 -
