• Link-on cable length power saving and link-down power saving.

• IEEE 802.3az (only ES1100-16/24E/24)

• Loop detection (only ES1100-16/24E/24)

• Jumbo frame (only ES1100-16/24E/24)

• Embedded MAC address table providing MAC addresses entries (ES1100-16, ES1100-16P,

ES1100-24 and ES1100-24E provide 8K; ES1100-8P provides 1K).

Refer to Chapter 4 on page 23 for the product specifications.

1.3 Applications

This section provides two network topology examples in which the Switch is used.

1.3.1 Standalone Workgroup

In this application, the Switch is an ideal solution for small networks where rapid growth can be

expected in the near future.

The Switch can be used standalone for a group of heavy traffic users. You can connect computers

directly to the Switch’s port or connect other switches to the Switch.

In this example, all computers can share high-speed applications on the server. To expand the

network, simply add more networking devices such as switches, routers, computers, print servers

etc.

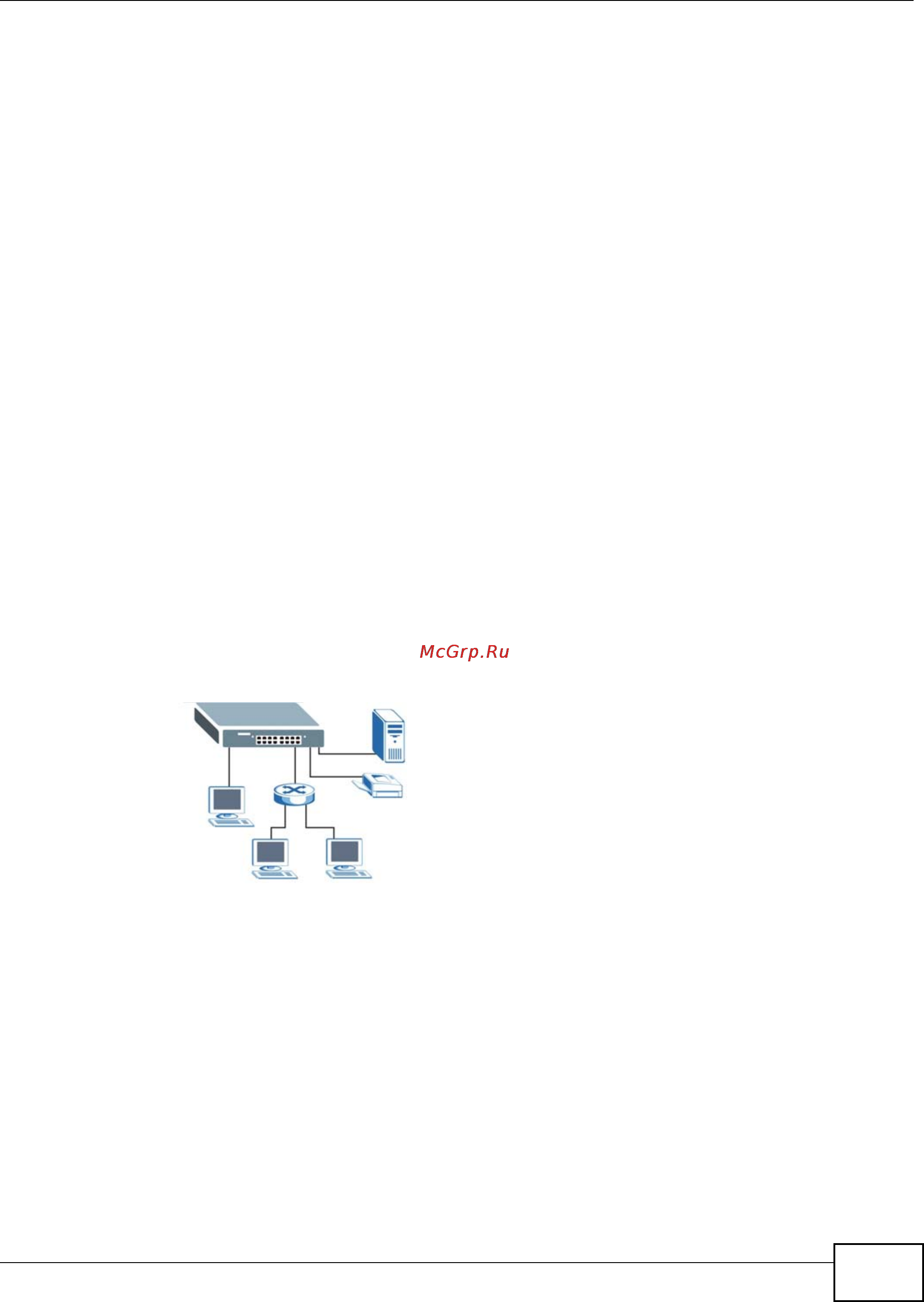

Figure 2 Standalone Workgroup Example

1.3.2 Bridging

With its large address table and high performance, the Switch is an ideal solution for department

networks to connect to the corporate backbone or for connecting network segments.
