ES1100 Series User’s Guide 13

CHAPTER 2

Hardware Description and Connection

2.1 Rear Panel

The three-pronged power receptacle is located on the rear panel of the Switch. Refer to the Product

Specifications on page 23 for power specification.

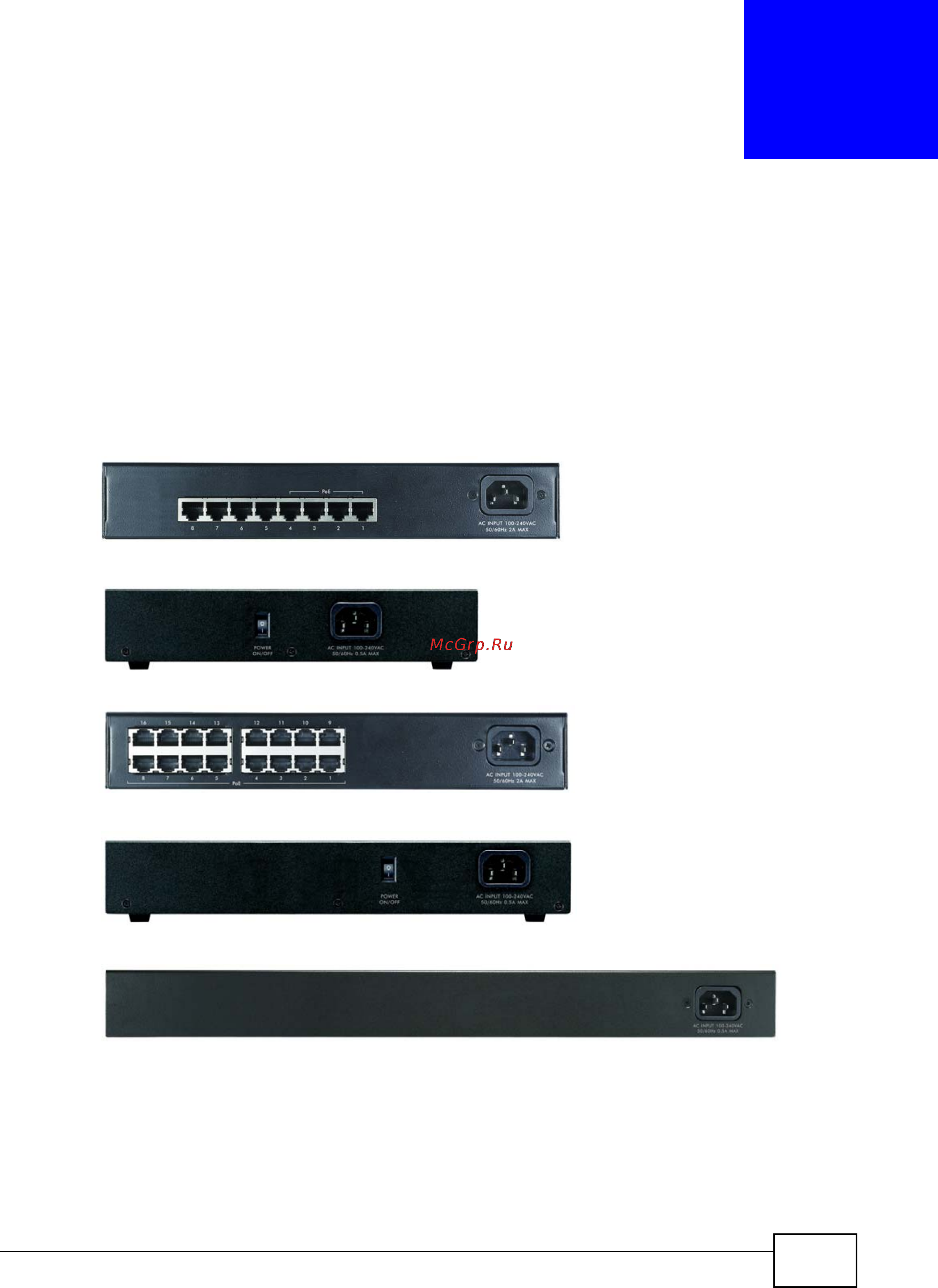

Figure 5 Rear Panel

2.1.1 Rear Panel Power Connection

Connect one end of the supplied power cord to the power receptacle on the back of the Switch and

the other end to the appropriate power source.
