Chapter 2 Hardware Installation and Connection

GS1900 Series User’s Guide

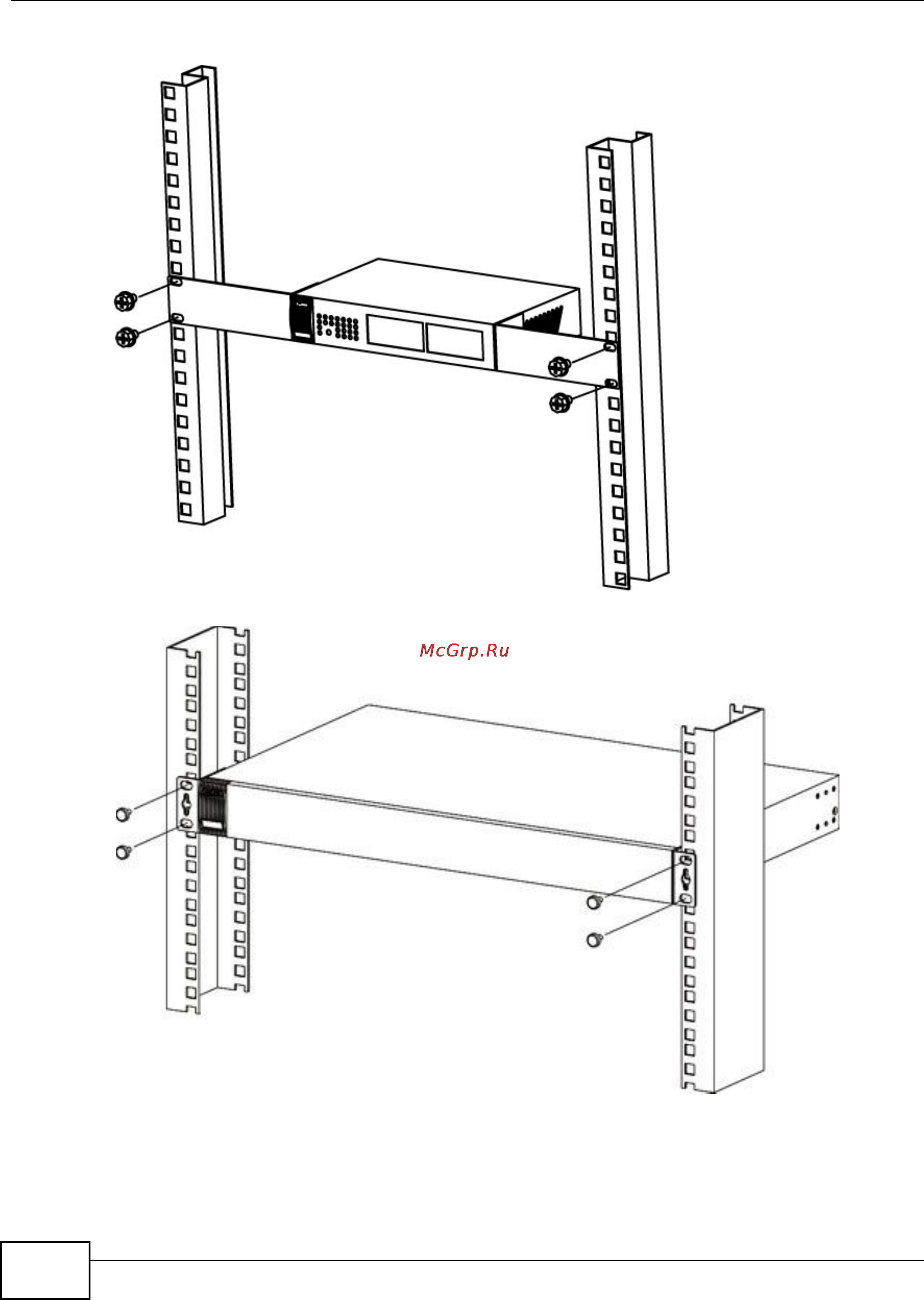

Figure 7 Mounting the Switch on a Rack (GS1900-16 and GS1900-24E)

Figure 8 Mounting the Switch on a Rack (GS1900-24, GS1900-24HP, GS1900-48, GS1900-48HP)

2 Using a #2 Philips screwdriver, install the M5 flat head screws through the mounting bracket holes

into the rack.

3 Repeat steps 1 and 2 to attach the second mounting bracket on the other side of the rack.
