Chapter 6 Maintenance
ZyWALL USG 20-2000 User’s Guide
126

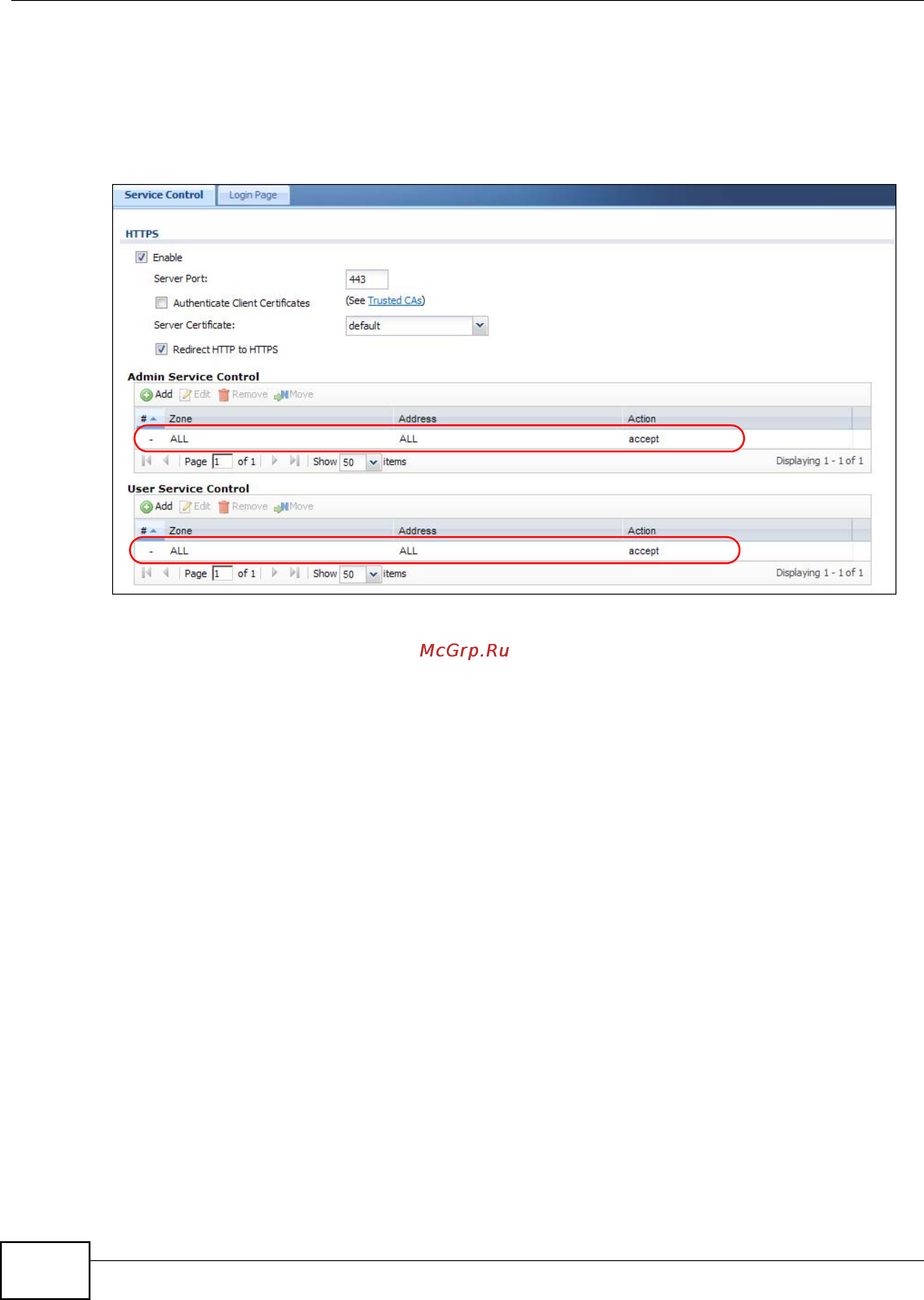

2 Check the Admin Service Control and User Service Control sections:
• accept under Action means that the user is to access the ZyWALL from the specified computers.
• ALL under Zone means that all ZyWALL zones are allowed to use this service.
• ALL under Address means that all computers are allowed to communicate with the ZyWALL
using this service.
3 If you want to create a different service control rule for HTTPs service, click the Add icon to do so.
Refer to How to Configure Service Control in the Tutorials chapter for details.
6.1.2 Check Firewall Settings
1 Click Configuration > Firewall.
2 If the WAN to ZyWALL firewall rule denies access, double-click it to edit it.
Mouse over the Service field and if HTTPS is not in the Default_Allow_WAN_To_ZyWALL
service group list go to the Object > Service > Service Group screen to edit it.
